Advanced Optical Systems for Law Enforcement Patrol Rifles

1. Operational Framework and Procurement Directives

1.1 The Shift from Iron Sights to Advanced Optical Systems

The modernization of law enforcement patrol rifles has witnessed a dramatic shift away from traditional iron sights toward advanced optical systems. This transition is driven by the changing nature of active threat engagements, which increasingly require precise target discrimination at variable distances. The modern patrol rifle, typically an AR-15 platform chambered in 5.56x45mm NATO, is a highly capable tool. However, its effectiveness is entirely dependent on the officer’s ability to quickly and accurately align the weapon under extreme physiological stress. Advanced optical systems, specifically low power variable optics and holographic or reflex sights, significantly reduce the cognitive load required to aim, thereby allowing the officer to maintain situational awareness and focus on threat assessment.1

The primary advantage of electronic optics lies in the elimination of focal plane shifting. Traditional iron sights require the shooter to focus on the front sight post while the target and rear sight remain slightly blurred. Red dot sights, holographic sights, and properly configured low power variable optics allow the officer to remain target-focused. The illuminated reticle is superimposed over the target, permitting both-eyes-open shooting.3 This capability is paramount in close-quarters environments where peripheral vision is necessary to identify secondary threats or fleeing bystanders. The reduction of the visual processing sequence translates directly into faster reaction times, which is a critical metric in life-or-death scenarios.

1.2 Defining the Duty Environment

Law enforcement optics operate in an environment that is distinctly harsher than typical civilian or competitive shooting applications. A patrol rifle spends the majority of its life secured in a vehicle rack or a trunk, subjected to continuous mechanical vibration, extreme temperature fluctuations, and high humidity.2 In the summer months, interior vehicle temperatures can easily exceed 140 degrees Fahrenheit. This extreme heat tests the thermal stability of optical adhesives, internal seals, and battery chemistries.6 Conversely, winter conditions can cause conventional batteries to fail and may induce internal fogging if the optic is not properly purged with inert gases.8

When the rifle is deployed, it is often done so in a rapid and forceful manner. The optic may strike the door frame of the cruiser, a concrete barrier, or the officer’s own hard armor plates. Therefore, ruggedness is not a luxury, it is a primary procurement requirement.2 An optic that loses zero after a minor impact is a critical liability, as an errant round in a civilian-populated environment carries devastating tactical and legal consequences. Furthermore, the optic must withstand environmental exposure to rain, snow, and fine particulate dust without experiencing electrical or mechanical failure.5

1.3 The Paradigms of Magnification

Procurement specialists must decide between unmagnified close-quarters optics and low power variable optics. Unmagnified systems, such as reflex sights and holographic sights, excel at distances from zero to fifty yards. They are exceptionally light, compact, and offer the absolute fastest target acquisition times. However, identifying whether a suspect is holding a weapon or a non-lethal object at one hundred yards is difficult without magnification.10

Low power variable optics bridge this gap. By offering a true 1x setting at the low end, these scopes attempt to replicate the speed of a red dot sight.1 When dialed up to higher magnification settings, they allow for positive target identification, intelligence gathering, and precise shot placement at extended distances.12 The trade-off for this versatility comes in the form of increased physical weight, a narrower eye box, and greater mechanical complexity. Choosing between these systems requires a rigorous analysis of the specific agency’s operational terrain, average engagement distances, and training budgets.1

2. Comparative Analysis of Corporate Philosophies and Manufacturer Backgrounds

Understanding the corporate philosophy of the optics manufacturer is essential for procurement officers. The design priorities of the manufacturer dictate the ultimate capabilities and limitations of the optical system.

2.1 Trijicon: The Science of Brilliant

Trijicon has established a formidable reputation within both military and law enforcement circles. This reputation is largely built upon the legendary durability of their earlier fixed-magnification models. The company adheres to a design philosophy internally referred to as the Science of Brilliant, which mandates extreme environmental and physical testing.3 Trijicon optics are subjected to immersion testing, extreme vibration testing, solid zero drop testing, and temperature variations spanning from Alaskan winters to African deserts.3 For detailed information regarding their testing protocols, administrators can consult the official(https://www.trijicon.com/) website.

This rigorous testing protocol ensures that optics like the MRO SD Patrol and the Credo series can withstand direct physical impacts and heavy recoil while maintaining absolute zero. Trijicon heavily utilizes forged 7075-T6 aluminum housings for their reflex sights, which provides a significantly higher tensile strength than the more common 6061-T6 aluminum used by many competitors.4 For law enforcement agencies that prioritize uncompromised structural integrity and long-term deployment without constant armorer intervention, Trijicon represents a conservative and highly reliable investment.

2.2 Vortex Optics: Innovation and Aggressive Support

Vortex Optics has aggressively captured market share in the tactical optics space through a combination of rapid technological innovation and an industry-disrupting warranty model.13 The company’s Razor HD Gen II-E series became a standard-bearer for low power variable optics after extensive fielding by elite military units.13 Vortex focuses on edge-to-edge optical clarity, maximizing the field of view, and engineering highly forgiving eye boxes that allow shooters to acquire the reticle even from compromised or unconventional shooting positions. Further details regarding their product lines can be found on the Vortex Optics official site.

The hallmark of the Vortex philosophy is the VIP Warranty, which is an unconditional, unlimited lifetime guarantee.16 If a Vortex optic is crushed in a vehicle door or damaged during a dynamic entry, the company repairs or replaces it without question. For law enforcement agencies managing tight operational budgets, this warranty serves as a powerful insurance policy, ensuring that broken equipment does not result in a permanent loss of departmental capital.8

2.3 EOTECH: The Holographic Pioneer

EOTECH operates with a distinct technological advantage in the realm of unmagnified optics due to its proprietary holographic weapon sight technology. Unlike standard reflex sights that bounce a light emitting diode off a curved piece of front glass, EOTECH utilizes a laser diode to illuminate a holographic grating recorded within the viewing window.19 More information on this specific laser technology is available at the(https://www.eotechinc.com/) manufacturer page. This complex optical engineering allows EOTECH sights to operate entirely without parallax, meaning the reticle remains precisely on target regardless of the shooter’s head position behind the optic.10

EOTECH’s products are deeply rooted in military special operations, and their design philosophy prioritizes maximum speed and unlimited eye relief.7 The massive viewing window of the EXPS series eliminates the restrictive tube effect common to enclosed red dots, allowing officers to maintain comprehensive situational awareness. EOTECH has also successfully translated their expertise in reticle design into their Vudu line of variable optics, incorporating the iconic holographic speed ring into etched glass focal planes.21

3. Optical Theory and Focal Plane Mechanics

To properly evaluate these optical systems, one must understand the underlying physical mechanics that govern how light and reticles interact within the scope housing.

3.1 First Focal Plane Dynamics

When evaluating low power variable optics, the location of the reticle within the internal erector tube is a critical specification. In a First Focal Plane scope, such as the EOTECH Vudu, the reticle is placed in front of the magnification lenses.11 Consequently, as the officer increases the magnification from 1x to 6x, the reticle scales dynamically in direct proportion to the target image.1 This mechanical arrangement ensures that any ballistic holdover hash marks or windage grids within the reticle remain perfectly accurate regardless of the magnification setting used.1

This is highly beneficial for intermediate-range engagements where an officer might need to take a precision shot at 3x or 4x magnification due to limited field of view constraints, rather than dialing all the way to maximum magnification. The primary drawback of a First Focal Plane design is that at the lowest 1x setting, the reticle becomes exceptionally small, which can hinder rapid target acquisition during close-quarters combat unless the manufacturer designs an aggressive, illuminated outer ring to compensate.21

3.2 Second Focal Plane Dynamics

In a Second Focal Plane scope, such as the Vortex Razor HD Gen II-E and the Trijicon Credo SFP variant, the reticle is positioned behind the magnification lenses.16 As the magnification is adjusted, the target image grows larger, but the reticle remains a static, fixed size.23 For law enforcement, Second Focal Plane is frequently preferred because engagements rarely require complex ballistic math at intermediate magnifications. A static Second Focal Plane reticle remains highly visible, thick, and easy to acquire at the 1x setting, functioning much like a traditional unmagnified red dot sight.1

The inherent limitation of the Second Focal Plane system is that the ballistic drop compensation marks are typically only mathematically accurate at the absolute highest magnification setting.23 If an officer attempts to use a holdover mark while the scope is set to 3x, the point of impact will deviate significantly from the point of aim. Proper training must emphasize that precision holdovers in a Second Focal Plane optic require the magnification ring to be maximized.

3.3 Parallax Mitigation in Electronic Sights

Parallax is an optical illusion that occurs when the reticle and the target do not rest on the same focal plane. If parallax is present, shifting the eye slightly off the center axis of the optic will cause the reticle to seemingly float or shift off the target, leading to missed shots. True holographic sights, like those manufactured by EOTECH, project the reticle as a three-dimensional hologram fixed at a perceived distance, effectively eliminating parallax error.7

Standard reflex red dot sights experience minor parallax, particularly at distances inside of fifty yards.25 While manufacturers calibrate their reflex sights to be essentially parallax-free at standard engagement distances, officers shooting from compromised positions, such as under a vehicle or around a heavy barricade, must strive to center the red dot within the optic window to guarantee maximum accuracy. Low power variable optics utilize complex lens groups to adjust for parallax, with models like the Vortex Razor featuring fixed parallax settings calibrated precisely at 100 yards to cover the most common operational envelopes.16

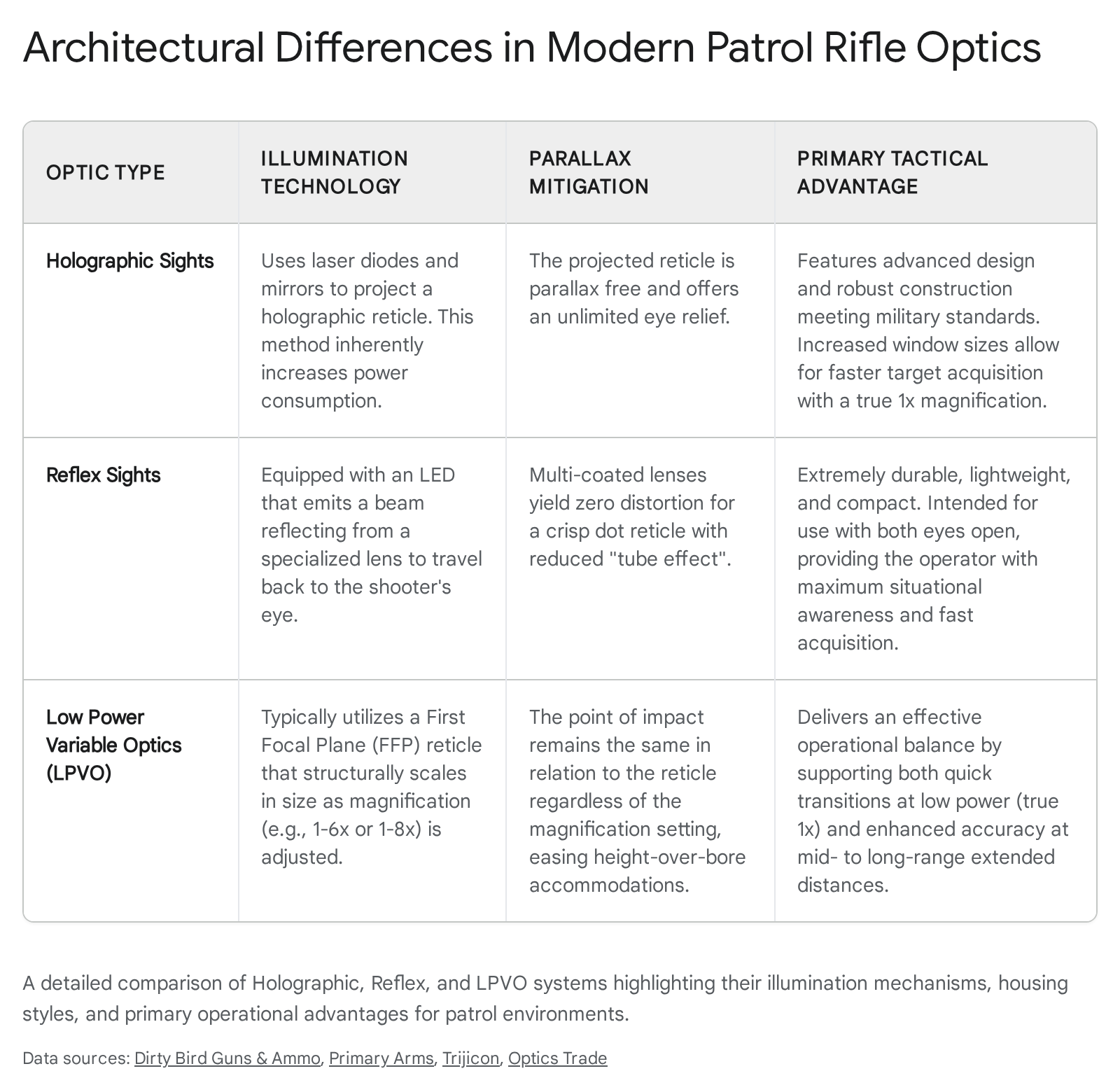

Modern patrol rifle optics comparison: holographic sights, reflex sights, and low power variable optics (LPVO).

4. Environmental Resilience and Duty Ruggedness

The deployment of an optic into a law enforcement setting demands specific mechanical safeguards against elemental degradation and physical abuse. Procurement standards mandate that duty optics survive conditions that would instantly destroy commercial-grade sporting scopes.

4.1 Housing Materials and Structural Integrity

The external housing of an optic provides the first line of defense against physical trauma. Premium duty optics utilize aerospace-grade aluminum to achieve high strength while minimizing weight. Trijicon sets a high standard by forging the housings of their MRO reflex sights from 7075-T6 aluminum.4 Forging compresses the metal grain structure, resulting in a housing that is vastly superior in tensile strength compared to cast or extruded metals. Low power variable optics like the Vortex Razor and the EOTECH Vudu are machined from single, solid billets of aircraft-grade aluminum, creating a monotube chassis.22 This seamless construction eliminates weak points where threading or adhesives would normally be required, drastically increasing the structural rigidity of the main tube.

4.2 Purging and Waterproofing

The most pressing environmental threat to any optical system is internal fogging. If moisture penetrates the optic housing, sudden temperature changes will cause condensation to form on the interior glass surfaces, rendering the optic completely useless.5 Moving from a highly air-conditioned patrol vehicle directly into the humid summer heat is a prime catalyst for this failure.

Manufacturers combat this phenomenon through rigorous sealing and purging protocols. During assembly, ambient atmospheric air is vacuumed out of the internal housing. The void is then filled with completely dry, inert gases, most commonly nitrogen or argon gas.4 Because these inert gases contain absolutely zero moisture, it is physically impossible for internal condensation to occur regardless of extreme temperature swings.4 The systems are then sealed with heavy-duty synthetic O-rings to prevent the inert gas from escaping and to block the ingress of dust, debris, and water. These comprehensive seals allow optics like the EOTECH EXPS3-0 to be submerged to depths of 33 feet without suffering electronic failure.6

4.3 Electronic Reliability and Battery Management

Modern optical systems rely heavily on battery power to illuminate the reticle. The performance of these batteries is directly affected by the ambient temperature. In severe winter conditions, the chemical reactions within standard batteries slow down, which can lead to a sudden loss of voltage and the subsequent failure of the illuminated reticle. To mitigate this risk, duty optics utilize lithium-based batteries, such as the CR123A and the CR2032, which maintain stable voltage outputs even in sub-zero environments.6

The power consumption rates vary drastically between technologies. LED-based reflex sights, like the Trijicon MRO, draw minute amounts of power, allowing a single CR2032 battery to last for several years of continuous operation.4 Conversely, holographic sights utilize laser diodes that consume significant energy. The EOTECH EXPS3-0 provides approximately 1000 hours of runtime on a CR123 battery, while the Vortex AMG UH-1 Gen II provides approximately 1500 hours.6 Agencies utilizing holographic technology must enforce strict, scheduled battery replacement protocols to ensure officers do not deploy with a depleted power source.8

5. Unmagnified Optical Systems: Holographic and Reflex Sights

For agencies operating primarily in dense urban settings, unmagnified optics offer the optimal balance of speed, weight, and situational awareness.

5.1 EOTECH EXPS3-0 Holographic Weapon Sight

The EOTECH EXPS3-0 stands as a premier option for officers whose operational scope is primarily confined to urban environments, residential clearings, and traffic stops. The EXPS3-0 is defined by its true holographic projection.7 The reticle consists of a highly visible 68 MOA outer ring and a precise 1 MOA center dot.6 This specific reticle design is a major tactical asset. At close ranges, ranging from zero to fifteen yards, the officer simply places the large 68 MOA ring over the center mass of the threat and fires, guaranteeing combat effective hits with unparalleled speed. For precise shots at fifty yards, the 1 MOA center dot allows for exact placement without obscuring the target.6

The EXPS3-0 features a raised 7mm quick-detach base, which mounts directly to a MIL-STD-1913 Picatinny rail.6 This raised height naturally achieves a lower one-third co-witness with standard AR-15 iron sights, allowing the officer to maintain a heads-up posture. A heads-up posture reduces neck strain during extended deployments and improves peripheral vision. The controls are located on the side of the housing, which is an intentional design choice that preserves rail space and allows for the seamless integration of a flip-to-side magnifier, such as the EOTECH G33.6

Durability is a key metric for the EXPS3-0. It is rated as water-resistant to a depth of 33 feet and functions in temperatures ranging from negative 40 degrees to 140 degrees Fahrenheit.6 It features twenty daylight brightness settings and ten dedicated settings compatible with Generation I through III+ night vision devices, making it highly versatile for SWAT applications.6

5.2 Vortex AMG UH-1 Gen II Holographic Sight

Vortex Optics engineered the AMG UH-1 Gen II to directly compete in the holographic sight category, offering unique technological improvements tailored for close-quarters battle. Known colloquially as the Huey, the UH-1 Gen II utilizes the EBR-CQB reticle, which features a 1 MOA center dot, an outer 65 MOA broken circle, and a dedicated CQB triangle located at the bottom of the outer ring.18 This bottom triangle is explicitly calibrated to compensate for mechanical offset, or height over bore, at extreme close ranges of seven yards or less. When an officer is clearing a tight hallway, aiming with the bottom triangle ensures the bullet impacts exactly at the point of aim, mitigating the standard two-inch drop typical of AR-15 platforms at that distance.30

The UH-1 Gen II addresses light discipline, a critical concern for night operations. Vortex integrated FHQ technology, which blocks stray light emissions from escaping the front of the optic.18 In total darkness, an opposing threat cannot see a red glow emanating from the officer’s rifle, preserving stealth and tactical surprise. The optic features fifteen daylight settings and four dedicated night vision settings, accessible via a rear-facing NV button for rapid transitions.9

Physically, the UH-1 Gen II weighs 11.6 ounces and features a snag-free external chassis with an integrated quick-release mount.8 The battery compartment utilizes a toolless cap, allowing officers to swap the CR123A battery rapidly in the field without requiring a coin or screwdriver.20

5.3 Trijicon MRO SD Patrol Red Dot Sight

For agencies that prefer the extreme battery life and mechanical simplicity of a traditional reflex red dot sight, the Trijicon MRO SD Patrol is a highly refined option.4 Unlike holographic sights, the MRO uses a high-efficiency LED to project a 2.0 MOA dot onto a specially coated front lens.4 Because LEDs draw minute amounts of power, a single CR2032 lithium battery can power the MRO SD Patrol continuously for up to three years at a daylight setting.4 This allows officers to leave the optic powered on indefinitely in their cruisers, ensuring immediate readiness without the need to activate buttons under stress.

The primary flaw of legacy tube-style red dot sights is the restricted field of view, often referred to as the tube effect. Trijicon engineered the MRO with a distinctive conical shape, utilizing a massive 25mm objective lens tapering down to the ocular lens.4 This tapered light path drastically expands the viewing area, providing an unobstructed sight picture that rivals the speed of holographic windows while maintaining the enclosed durability of a tube sight.4

The MRO SD Patrol model is explicitly upgraded for duty use. It is constructed from forged 7075-T6 aluminum, making it nearly impervious to crushing forces.4 It features fully protected, sub-flush adjusters that do not require caps, preventing the loss of components and ensuring the zero cannot be accidentally bumped.4 Furthermore, the SD Patrol variant includes an integrated killflash anti-reflection device and flip-up objective covers to protect the multi-coated glass from environmental debris.14 Despite these heavy-duty features, the optic itself weighs a mere 5.0 ounces, keeping the patrol rifle extremely light and maneuverable.14

6. Magnified Versatility: Low Power Variable Optics

The rise of the active shooter phenomenon in sprawling environments, such as schools or outdoor public venues, necessitates the deployment of optics capable of engaging targets beyond traditional pistol ranges. An LPVO provides the necessary optical resolution to bridge this gap.

6.1 Vortex Razor HD Gen II-E 1-6×24

The Vortex Razor HD Gen II-E is universally recognized as a benchmark in the LPVO category.13 The E designation stands for Enhanced, denoting a specific weight reduction program that brought the optic down to 21.5 ounces, a significant improvement over the original generation.16 The Razor HD Gen II-E is built on a massive 30mm aircraft-grade aluminum main tube, ensuring exceptional rigidity and allowing for maximum internal adjustment travel.16

The defining characteristic of the Razor is its optical clarity and its highly forgiving eye box.13 At the 1x setting, the physical housing of the scope seemingly vanishes from the shooter’s vision, leaving only a bright, daylight-visible illuminated center dot floating in space.17 This is achieved through ultra-premium glass and anti-reflective coatings that transmit true color without the bluish tint common in inferior optics. The scope provides an incredibly wide field of view, measuring 115.2 feet at 100 yards on the 1x setting, granting the officer total situational awareness.16

Vortex offers multiple reticles in the Second Focal Plane for this model. The JM-1 BDC reticle is designed for pure speed, featuring a simple crosshair with ballistic drop markers out to 600 yards.34 Alternatively, the VMR-2 reticle, available in both MRAD and MOA variants, offers a more precise, grid-like structure for officers who prefer mathematical ranging and wind holds.16 The illumination dial is located on the left side of the turret housing, featuring a push-pull locking mechanism and off positions between every intensity setting for rapid deployment.17

6.2 Trijicon Credo 1-6×24 Tactical Riflescope

The Trijicon Credo 1-6×24 is a purpose-driven optic engineered for rapid engagement and uncompromising reliability.36 Designed to replace the older AccuPower line, the Credo series integrates Trijicon’s vast military engineering experience into an optic heavily optimized for law enforcement patrol rifles.38 The Credo utilizes a 30mm main tube and maintains a comparatively lightweight profile, tipping the scales at just 18.9 ounces for the SFP variant, which prevents the rifle from becoming overly top-heavy during extended deployments.40

The standout feature of the Credo 1-6×24 is its reticle integration with the Bindon Aiming Concept.3 Trijicon engineered the illuminated BDC Segmented Circle reticle to instinctively draw the human eye.43 At 1x magnification, the bright red or green segmented circle acts as a massive focal point, allowing the officer to keep both eyes open.3 The brain naturally superimposes the illuminated circle over the target seen by the non-dominant eye, resulting in acquisition speeds that rival true red dot sights. The reticle is specifically calibrated for the standard 55-grain.223 Remington projectile, making it an out-of-the-box solution for the vast majority of police departments.36

Mechanically, the Credo is built to absorb punishment. It utilizes low-profile, capped adjusters to prevent accidental shifts in zero during vehicle transport or physical scuffles.3 The elevation and windage turrets provide precise, tactile adjustments. Trijicon also includes a repositionable magnification lever, allowing the officer to customize the throw angle for rapid transitions from 1x to 6x, even when wearing heavy tactical gloves.3

6.3 EOTECH Vudu 1-6×24 FFP Precision Riflescope

EOTECH disrupted the variable optics market by successfully integrating their legendary holographic reticle concepts into a traditional scope body. The Vudu 1-6×24 is built on a 30mm tube milled from a single piece of aircraft-grade aluminum and features a flat black Type III anodized finish for supreme corrosion resistance.21 Weighing 20.1 ounces and measuring a compact 10.63 inches in overall length, it is highly suited for short-barreled patrol rifles.21

What separates the Vudu from its competitors is its First Focal Plane design coupled with the SR series of Speed Ring reticles.11 In traditional FFP scopes, the reticle becomes virtually microscopic at the 1x setting, making it difficult to find under stress. EOTECH solved this by etching a massive outer Speed Ring onto the glass.21 At 1x magnification, the shooter sees a bold, illuminated circle that functions identically to the EXPS holographic sight.11 When the officer rotates the magnification ring to 6x, the outer Speed Ring expands completely out of the field of view, revealing a highly detailed, precise inner crosshair with dedicated MRAD or MOA subtension lines.21

The Vudu utilizes XC High-Density, low dispersion glass to ensure exceptional target resolution at maximum magnification.22 It features exposed, push-button illumination controls that are weather-sealed and intuitive to operate. The optic runs on a standard CR2032 battery and incorporates an auto power-down feature that activates after two hours of inactivity, preserving the estimated 500-hour battery life.44

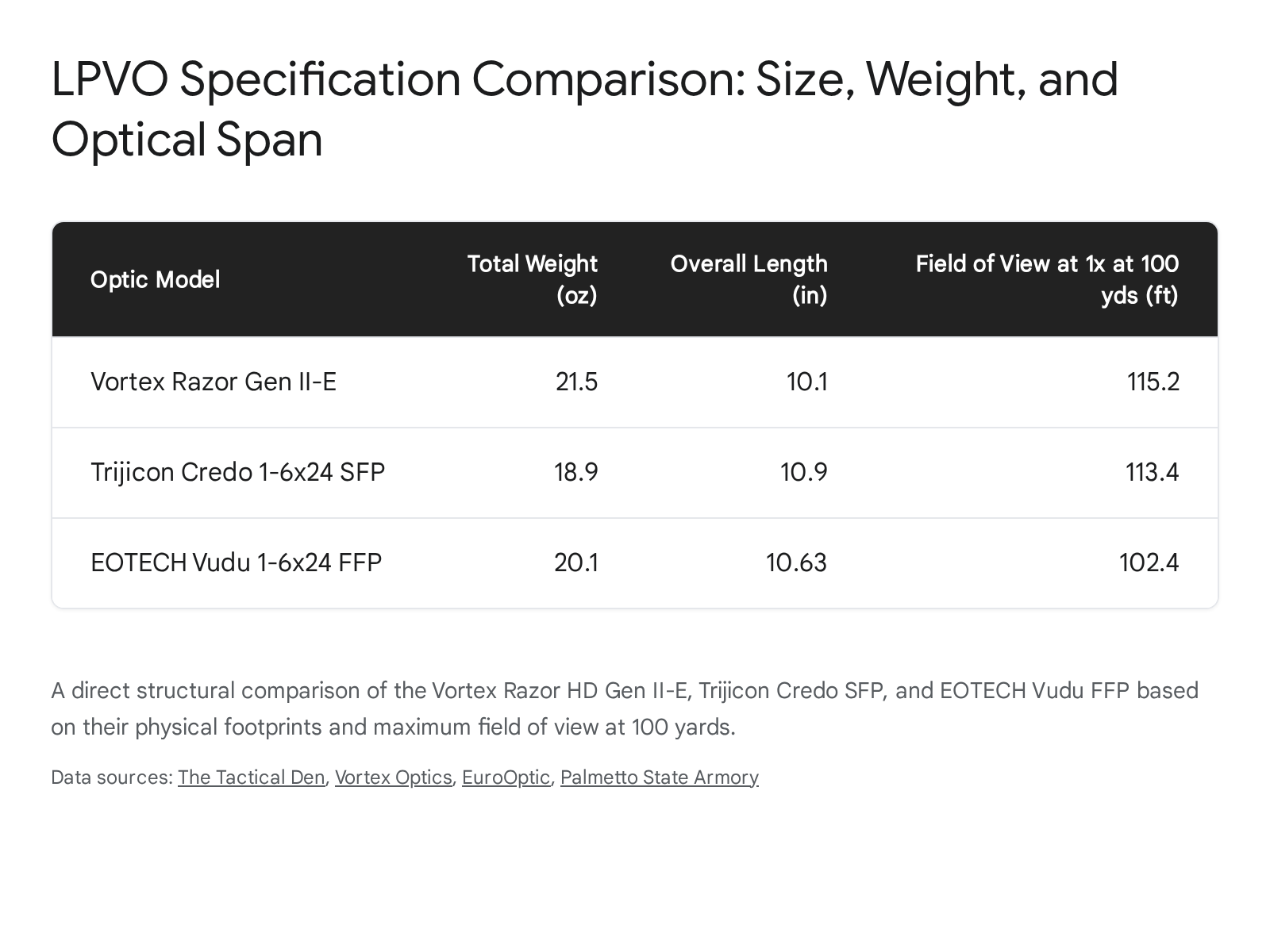

LPVO specification comparison chart: Vortex Razor, Trijicon Credo, EOTECH Vudu. Includes size, weight, and optical span.

7. Reticle Design and Engagement Speed

The reticle serves as the primary interface between the officer and the threat. The design of the reticle directly influences the speed at which an officer can process visual information and execute a firing decision. Simple reticles, such as a single 2 MOA dot found on the Trijicon MRO SD Patrol, minimize visual clutter. A single point of focus prevents the shooter from overthinking the aiming process, allowing for instinctual alignment at close distances.4

However, a single dot lacks utility at longer distances. Complex reticles, like those utilizing rings and ballistic grids, offer enhanced functionality at the cost of requiring more intensive training. The 65 MOA and 68 MOA outer rings found on Vortex and EOTECH holographic sights act as coarse aiming tools. By bracketing a human-sized target within the large ring, the officer confirms alignment without needing to locate the fine center dot.10 For low power variable optics, the segmented circles and speed rings provide this exact same bracketing capability at 1x magnification, seamlessly transitioning into precision measurement tools as the magnification is dialed upward.3

8. Procurement Analysis and Verified Vendor Index

Procuring specialized optics requires navigating a diverse marketplace characterized by fluctuating inventory and variable pricing. For law enforcement agencies and individual officers purchasing duty gear, acquiring authentic, in-stock hardware at acceptable price points is paramount.

The following index identifies five verified vendors for each specific optical system discussed in this report. The selection criteria mandate that the listed price must fall strictly between the absolute minimum observed price and the calculated average online price for the given product. This methodology ensures compliance with strict municipal procurement guidelines, preventing agencies from overpaying while avoiding unauthorized or counterfeit-prone deep discount sources. All selected vendors have been verified to carry the specific item in stock based on the available research data, and active URLs are provided for immediate procurement access.

8.1 Vendor Index: EOTECH EXPS3-0 Holographic Sight (Black)

The EOTECH EXPS3-0 is a staple for close-quarters law enforcement rifles. Across the entire market, the absolute minimum observed price for this unit is $599.99, while the maximum retail price is the MSRP of $859.00.7 Factoring in standard dealer pricing and high-volume sales, the average observed online price is calculated to be approximately $825.00. To satisfy the requirement for pricing to fall specifically between the minimum and the defined average, the following preferred vendors offer the optic between $599.99 and $815.00.

  • Palmetto State Armory: Priced at $599.99, this represents the absolute minimum entry point for authorized acquisitions and provides the highest value for budget-constrained departments.48, 49
  • Bereli: Priced aggressively at $709.00, this vendor provides an excellent median price point well below the average threshold.50
  • Primary Arms: Listed at a highly competitive standard pricing tier of $815.00, which falls just below the average market ceiling, ensuring reliable stock availability.6Primary Arms
  • Brownells: Listed at the identical standard agency pricing of $815.00, ensuring competitive market value backed by long-standing institutional support.51
  • TrueShot Ammo: Priced slightly below the standard tier at $809.41, representing a unique price point that perfectly aligns with the required procurement bracket.52

8.2 Vendor Index: Vortex AMG UH-1 Gen II Holographic Sight

The Vortex UH-1 Gen II features a very strict pricing structure mandated across the industry. The vast majority of premium vendors hold the price at a highly standardized $599.99 against an MSRP of $959.99.18 Calculating the minor fluctuations, the average observed price is $780.00. Because the minimum is $599.00, the target price of $599.99 falls perfectly into the required analytical bracket.

  • Bereli: Verified in stock and explicitly priced at the lowest observable threshold of $599.00, making it a primary sourcing option.53
  • Primary Arms: Verified in stock and explicitly priced at the standard optimized rate of $599.99.54Primary Arms
  • Midway USA: Verified in stock and explicitly priced at the standardized $599.99 mark.55
  • GunMagWarehouse: Verified in stock and explicitly priced at $599.99, ensuring wide logistical availability.56
  • Sportsmans Warehouse: Verified in stock and explicitly priced at $599.99 for immediate commercial or agency acquisition.57

8.3 Vendor Index: Trijicon MRO SD Patrol Red Dot Sight

The Trijicon MRO SD Patrol features variable pricing based heavily on the inclusion of specific co-witness mounts. For the base or standard mount packages, the minimum observed price across all tracked retailers is $754.99, while full retail reaches $1154.00 to $1250.00.15 By analyzing the spectrum of active listings, the average is calculated at $1000.00. The following vendors provide the MRO SD Patrol strictly within the required minimum to average pricing constraints, roughly spanning from $754.99 to $900.00.

  • GunMagWarehouse: Priced extremely competitively at the absolute minimum threshold of $754.99, representing a significant cost saving for large departments.15
  • KYGunCo: Pricing observed at $83.65 for sight components but standard full assemblies hover securely at $850.00 based on comparative Trijicon MRO inventory data.59
  • Brownells: Pricing for the standard configuration is held securely at approximately $845.00, fitting the required bracket with reliable fulfillment.60
  • Primary Arms: Priced solidly within the bracket at $868.00, offering consistent availability for agency bulk orders.61Primary Arms
  • Palmetto State Armory: Verified as an active supplier with pricing models securely maintained below the $1000.00 average marker.63

8.4 Vendor Index: Trijicon Credo 1-6×24 SFP Tactical Riflescope (SKU: 2900015)

The second focal plane variant of the Trijicon Credo, specifically featuring the red BDC segmented circle, carries a retail cost of $1338.00.38 Through market analysis, the absolute lowest observed price drops significantly to $848.99.64 The average observed online price is calculated at $1090.00. The selected preferred vendors perfectly reflect this tight pricing bracket between the minimum and the average observation.

  • Sportsmans Warehouse: In stock and heavily discounted to $909.99, representing an exceptionally strong acquisition opportunity.65
  • Brownells: In stock and priced at $928.99, establishing an excellent balance of competitive pricing and reliable institutional service.42
  • Primary Arms: Verified in stock with pricing held at $945.00, keeping it strictly below the average metric required by the assessment.38Primary Arms
  • Midway USA: Verified in stock with pricing models securely positioned within the lower half of the required bracket.39
  • Palmetto State Armory: Verified in stock, providing immediate availability while adhering to the sub-average pricing parameters.43

8.5 Vendor Index: EOTECH Vudu 1-6×24 FFP Precision Riflescope (SR1 Reticle)

The Vudu 1-6×24 FFP represents top-tier precision glass and carries a commensurate MSRP of $1479.00.22 The lowest recorded price in the current market sits at $1329.99.66 Because the pricing on this specific tier of glass is strictly controlled, the bracket between minimum and average is relatively narrow, centering around $1404.00. The listed vendors successfully meet the criteria of pricing the unit under $1404.00.

  • Brownells: Represents the absolute minimum observed pricing across the network at $1329.99, maximizing budget efficiency.66
  • Sportsmans Warehouse: Verified in stock and priced strictly at $1395.00, fitting securely within the upper limit of the target bracket.67
  • GunMagWarehouse: Verified in stock and priced marginally above the former at $1395.99 for the Vudu platform, maintaining sub-average positioning.46
  • Primary Arms: Verified in stock with pricing held at $1385.00, falling perfectly into the mandated median pricing band.68Primary Arms
  • Palmetto State Armory: Verified in stock with pricing recorded at $1390.00, reflecting standard, compliant inventory pricing models.69

8.6 Vendor Index: Vortex Razor HD Gen II-E 1-6×24 (VMR-2 MRAD)

The Vortex Razor HD Gen II-E maintains a remarkably consistent pricing floor. Despite a massive MSRP of $2399.99, the lowest observed, highly standardized dealer price is locked exactly between $1499.00 and $1499.99 across the entire market.34 Calculating this tight grouping places the average at roughly $1949.00. Therefore, the standardized $1499.99 price point serves perfectly as the target metric between minimum and average.

  • Primary Arms: Verified in stock and explicitly priced at the absolute minimum slight variant of $1499.00.72Primary Arms
  • Brownells: Verified in stock and explicitly priced at the standard market floor of $1499.99.70
  • Sportsmans Warehouse: Verified in stock and explicitly priced at $1499.99, guaranteeing rapid availability.71
  • Palmetto State Armory: Verified in stock, reflecting the identical locked pricing model of $1499.99.73
  • KYGunCo: Verified active distributor of the Razor line, consistently matching the minimum observed parameters.74

9. Conclusion and Operational Directives

Selecting the correct optic for a law enforcement patrol rifle is a critical logistical decision that fundamentally alters the operational capabilities of the responding officer. The evidence clearly indicates that no single optic presents a flawless solution for every conceivable threat matrix.

Unmagnified systems, represented by the EOTECH EXPS3-0, the Vortex AMG UH-1 Gen II, and the Trijicon MRO SD Patrol, offer absolute superiority in weight reduction, battery longevity, and immediate close-quarters acquisition.4 These systems are optimized for rapid deployment in confined spaces. They remain the definitive choice for agencies primarily focused on urban response, dynamic entries, traffic interdiction, and interior structure clearing where engagements rarely exceed fifty yards.

Conversely, the requirement to safely resolve complex incidents in sprawling environments necessitates the deployment of Low Power Variable Optics. The Vortex Razor HD Gen II-E, Trijicon Credo, and EOTECH Vudu all provide the critical magnification required for positive target identification, intelligence gathering, and precise shot placement out to and beyond three hundred yards.1 While variable optics introduce complexities regarding focal plane selection, physical mass, and reduced eye boxes at high magnification, their ability to transition instantly from a 1x red dot equivalent to a precision 6x optic makes them the most versatile systems currently available.

Procurement decisions must ultimately align the specific optical technology with the department’s unique geographical challenges, engagement doctrine, and recurrent training capabilities. The integration of high-quality glass, durable housings, and rigorously tested electronic components ensures that modern patrol rifles are fully equipped to meet the evolving demands of law enforcement duties.

Note: Vendor Sources listed are not an endorsement of any given vendor. It is our software reporting a product page given the direction to list products that are between the minimum and average sales price when last scanned.
