Executive Summary

The Hodge Defense Systems Inc. (HDSI) Mod 1 is regarded as a benchmark for the modern AR-15. It wasn’t built to compete with standard commercial rifles; instead, founder Jim Hodge engineered it from the ground up for elite law enforcement, special operations, and serious civilian shooters who need a tool that won’t quit. The core idea was simple but ambitious: build the ultimate combat-durable carbine by prioritizing better metallurgy, precise gas tuning, and a rock-solid structural design over cost-cutting shortcuts. Rather than just being a collection of high-end parts, the Mod 1 is a complete, integrated system built to handle the high-pressure environment of military-grade ammunition like the M855A1 Enhanced Performance Round (EPR). It’s the result of Hodge asking what a tier-one operator would carry if they had total control over every material and manufacturing choice.

Because of this no-compromise approach, the Mod 1 sits at the very top of the market, often mentioned in the same breath as legendary platforms like the Knight’s Armament SR-15 Mod 2 or the LMT MARS-L. It’s primarily available in four cold hammer-forged (CHF) barrel lengths—11.5″, 12.5″, 14.5″, and 16″—paired with gas systems optimized for each size. These barrels are held in place by HDSI’s incredibly strong handguards, including the Wedge Lock, P-Lock, and S-Lock designs, all of which use a proprietary titanium barrel nut for a secure, monolithic-style fit.

The feedback from the community is clear: the Mod 1 is both a workhorse and a pleasure to shoot. Its ergonomics are famous, with handguards often described as feeling like a “warm bar of soap”—smooth and comfortable, yet remarkably strong and fatigue-reducing. When it comes to reliability, the platform excels as long as it’s fed the full-power ammo it was built for. By carefully tuning the gas system to reduce the internal wear typically caused by high-pressure NATO and EPR rounds, Hodge created a rifle that runs smoothly whether you’re shooting with a suppressor or without one, setting a standard that few other rifles can match.

Reliability and Accuracy

The mechanical accuracy and operational reliability of the Hodge Defense Mod 1 are closely tied to its proprietary barrel architecture and trunnion fitment. The standard Mod 1 upper receiver is forged from 7075-T6 aluminum and features an intentionally undersized barrel seat bore; critical dimensions are held to tolerances of +/- .001″, which is significantly tighter than standard military specifications¹¹. Note: It is important to distinguish the Mod 1 from the HDSI Mod 2, which utilizes an even stronger C405 aerospace aluminum alloy but shares the same dimensional architecture⁵. The Mod 1’s undersized design mandates a strict thermal fitting process, requiring the upper receiver to be heated to approximately 175°F (often via a heat gun or bearing heater) to allow the aluminum to expand sufficiently for the steel barrel extension to seat¹³. Upon cooling, the aluminum contracts, creating a perfectly rigid, interference-fit lockup between the barrel and receiver. This absolute elimination of micro-movement or harmonic slop at the trunnion translates directly to superior mechanical accuracy.

The barrels themselves represent a massive leap in metallurgical application, manufactured in partnership with FN America. HDSI barrels utilize a proprietary Chrome Moly Vanadium alloy often referred to colloquially as “machine gun steel,” which is functionally identical to the material used in the M249 SAW and M240 medium machine guns⁴. The cold hammer-forging (CHF) process intensely work-hardens this steel, while the application of a chrome-lined bore that is nearly twice as thick as standard M16 specifications extends the barrel’s service life significantly beyond standard commercial offerings⁷. Furthermore, the bore features a proprietary continuous taper that subtly constricts toward the muzzle. This internal geometry slightly increases projectile velocity, allowing shorter barrels like the 12.5″ variant to rival the ballistic efficiency of a standard 14.5″ barrel while simultaneously smoothing the recoil impulse by optimizing gas expansion dynamics behind the bullet³.

In rigorous accuracy evaluations utilizing 62.6-grain M855A1 ammunition, a 14.5″ Hodge Defense barrel demonstrated an extreme spread of 2.51 inches across a mathematically significant 10-shot group at 100 yards while yielding muzzle velocities averaging 2,939 FPS¹⁹. This performance with mass-produced military ball ammunition is notable. While some boutique platforms utilizing stainless steel match barrels prioritize sub-MOA precision, the Hodge Mod 1’s combat-optimized CHF barrel prioritizes longevity over bench-rest target shooting. However, its accuracy remains exceptional for a chrome-lined duty barrel, effectively stabilizing heavy match loads with its 1:7 twist rate⁷.

Exacting gas port dimensions, engineered for specific dwell times, ensure long-term reliability. For example, the 12.5″ barrel utilizes an optimized .0645″ gas port⁹. This conservative sizing ensures that when utilizing high-pressure suppressors or M855A1 ammunition, the bolt carrier group (BCG) is not subjected to extreme rearward velocity. Excessive carrier velocity is the primary catalyst for premature extractor failure, bolt lug shearing, and excessive recoil in the AR-15 platform⁵.

Malfunction Typology and Diagnostics

While the factory Mod 1 is highly reliable, the realities of building an AR-15 from stripped components mean that user-induced modifications, “tolerance stacking” with aftermarket parts, or the utilization of sub-optimal ammunition can cause specific stoppages. The table below maps verified malfunction types directly to their primary phase of occurrence and root causes within the context of the custom AR-15 ecosystem.

Malfunction Type	Description	Primary Phase of Occurrence	Verified Root Causes
Failure to Return to Battery (FRTB)	The bolt carrier group fails to fully seat the cartridge into the chamber, stopping slightly out of battery.	Chambering / Locking	1. Excessive carbon fouling in the tightly toleranced thermal-fit receiver combined with inadequate lubrication. 2. Tolerance stacking with out-of-spec aftermarket buffer springs lacking sufficient forward tension13.
Nose-Up Feed Jam	The projectile strikes the upper edge of the chamber or barrel extension, failing to enter the bore.	Feeding	1. Use of out-of-spec aftermarket magazines. 2. Tolerance stacking resulting from mixing mismatched components that create loose-fitting or out-of-spec feeding geometry22.
Light Primer Strikes	The firing pin indents the cartridge primer, but with insufficient force to ignite the propellant.	Ignition	1. Because HDSI does not provide a fire control group in stripped sets, users installing reduced-power aftermarket match trigger springs may experience light strikes on hard-primed surplus ammunition.
Failure to Eject (FTE) / Short Stroking	The spent casing is extracted but not cleanly ejected; or the bolt carrier does not travel far enough rearward to strip the next round.	Extraction / Ejection	1. Running heavily underpowered, commercial .223 Remington steel-cased ammunition in a Hodge gas system expressly tuned for full-power NATO/M855A1 loads without the aid of a suppressor3.

Durability and Maintenance

The durability matrix of the Mod 1 is defined by an uncompromising approach to metallurgical selection. The Bolt Carrier Group (BCG) utilizes Carpenter 158 steel for the bolt, heavily magnetic particle inspected (MPI) and high-pressure tested (HPT) to ensure no microscopic crystalline fractures exist within the metal⁴. The carrier itself is coated with black nitride, which makes it much more slippery and harder than traditional phosphate coatings. This reduces friction and stops carbon buildup from sticking permanently. Also, the gas keys are held in place with Optimized Carrier Key Screws (OCKS) and are properly staked so that they don’t come loose during long periods of cyclic operation.

Gas system durability is reinforced by using low-profile gas blocks that are factory pinned to prevent heavy impacts to the handguard from misaligning the gas port. Wear trends on microcomponents indicate that standard mil-spec action springs and buffer retainers are often the first points of failure when users subject their rifles to intense suppressed firing schedules.

Recommended DIY OEM Part Substitutions

High-round-count users commonly implement a specific set of micro-component upgrades to mitigate tolerance stacking and optimize the durability of the Mod 1 for dedicated suppressor use, as detailed in the table below.

Original OEM Part	Recommended Replacement	Reason for Intervention
Standard A2 Forward Assist	FCD / HDSI LSFA (Low Snag Forward Assist)	Co-developed by Forward Controls Design and Jim Hodge, the LSFA removes the standard rim to prevent snagging on gear or the user’s hand when operating ambidextrous charging handles under stress14.
Standard Buffer Retainer	FCD RBF (Reinforced Buffer Retainer)	Due to tolerance stacking when mixing lowers standard retainers can shear under heavy buffer impact. The RBF uses a billet 4140 steel construction and a reinforced tip to prevent sheared metal from falling into the trigger group, thus averting catastrophic mechanical lockups23.
Mil-Spec Action Spring	Sprinco Blue or Green Extractor/Action Springs	Extends the recoil system’s lifespan by reducing buffer bounce and ensuring reliable chambering velocities, even at the higher cyclic rates caused by suppressor use.
Standard Trigger Guard	Magpul or FCD TGF (Trigger Guard, Forward Controls)	Enlarged dimensions allow for heavily gloved operation in austere environments without compromising the structural integrity of the receiver ears21.

Ownership Experience

Owning a Hodge Defense Mod 1 means you appreciate hyper-optimized engineering, but you also have to deal with the challenges of getting and modifying boutique components. The handguards—whether the Wedge Lock, the Pinch Lock (P-Lock), or the Spine Lock (S-Lock)—are renowned for their structural rigidity. Originally developed with Mega Arms (now Zev Technologies), the Wedge Lock system uses a proprietary titanium barrel nut that does not need shims for timing, ensuring the top Picatinny rail is perfectly aligned with the upper receiver.

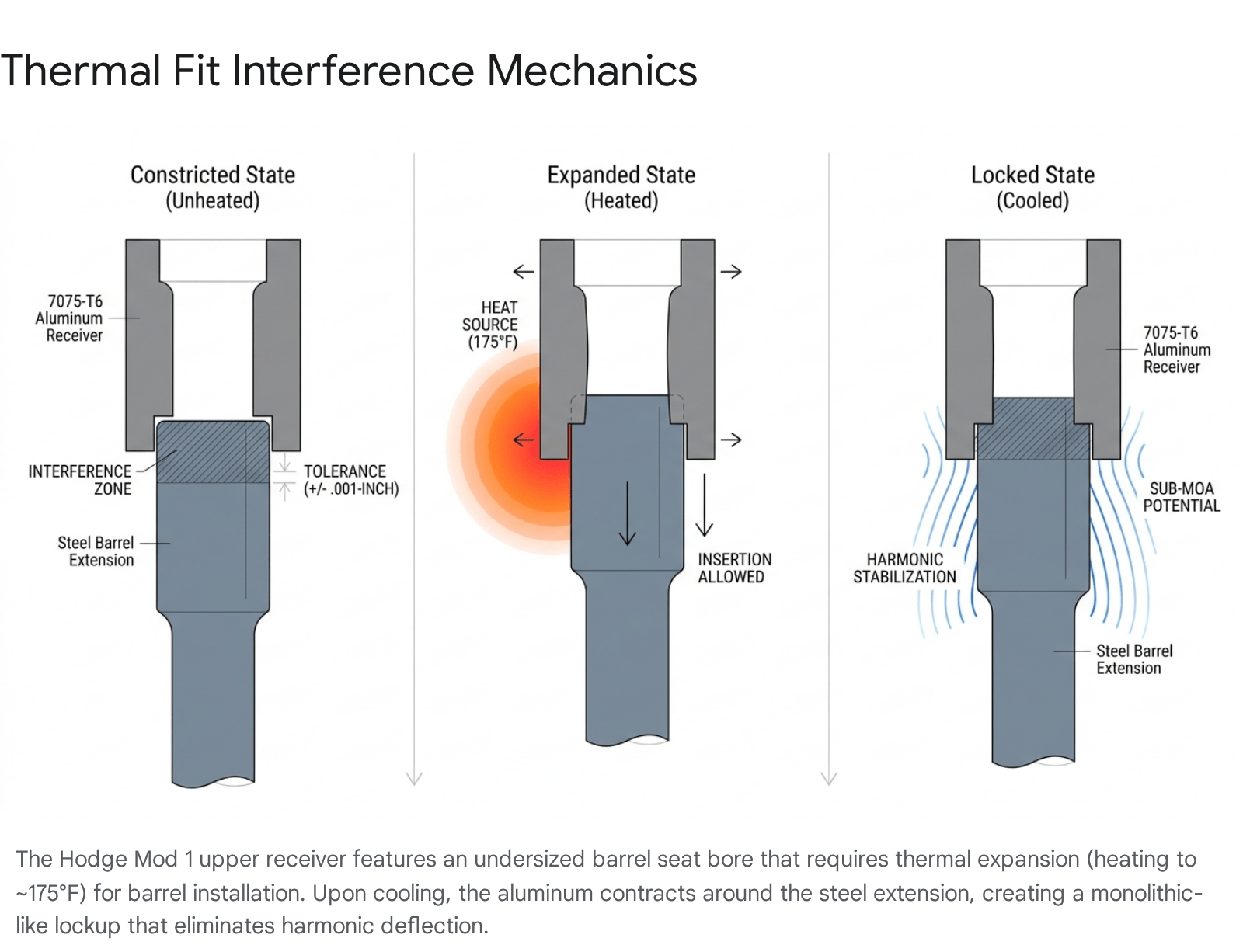

However, aftermarket modification of the Mod 1 carries distinct risks, specifically concerning tolerance stacking. The standard HDSI Mod 1 upper receiver utilizes slightly oversized takedown and pivot lugs³. This is an intentional engineering choice designed to force an extremely tight, zero-play fitment between the upper and lower receiver. If an end-user attempts to pair a standard Mod 1 upper with an out-of-spec lower receiver, the oversized lugs may prohibit assembly²².

Conversely, HDSI produced a “Mod 1 V1.5″ variant upper receiver, which reverted to the standard military technical data package (TDP) lug width of 0.496” to fulfill specific customer requests, removed the top-rail T-marks, and added a Dry Film Lubricant (DFL) on the interior¹³. Owners mixing V1.5 uppers with standard lowers note that the fit remains highly snug, even without the oversized lugs¹³. Furthermore, the strict thermal fit requirement of the upper receiver means that gunsmiths attempting to install or swap barrels must properly apply heat (approx. 175°F); attempting to hammer the barrel in without heat risks structurally compromising the aluminum trunnion¹³.

Warranty and Support

Unlike massive commercial conglomerates with dedicated, high-volume call centers and rapid turnaround replacement departments, Hodge Defense Systems operates as a specialized, low-volume boutique manufacturer². The company prioritizes government contracts, elite law enforcement allocations, and highly selective commercial releases.

Consequently, the actual time for official factory repairs can be significantly longer than the industry average. The extreme scarcity of raw materials—specifically the proprietary extrusions and FN-sourced CHF barrels—means that physical replacement parts are frequently out of stock for extended periods². Consumers entering the Hodge ecosystem must accept that repairing the weapon in the event of an anomaly requires patience and a reliance on HDSI’s authorized network of expert armorers to facilitate proper repairs.

Voice of the Customer (VoC)

An analysis of median consumer sentiment from high-traffic, technically proficient firearms forums—specifically M4Carbine.net, Pistol-Forum, and the AR15.com technical boards—reveals a highly dedicated user base. High-round-count users consistently praise the recoil impulse and longevity of the system. One verified user noted that the platform acts as an “energizer bunny,” exhibiting minimal internal wear on the C158 bolt and barrel throat even past the 50,000-round mark¹. The tapered bore, optimized gas port, and rigid rails combine to create a weapon that tracks exceptionally flat.

However, the primary source of negative sentiment is unequivocally tied to supply chain scarcity and secondary market pricing. Users express extreme frustration over the inability to source parts, noting that checking vendor pages often proves futile, driving parts into a highly inflated secondary market¹⁰. Additionally, some users have levied specific criticisms regarding aesthetic defects, noting that the anodizing on certain batches tends to flake off with hard use and citing early confusion surrounding the exact specifications of the Mod 1.5 receivers, as well as complaints that some Mod 2 lowers refuse to drop magazines freely²⁸. Ultimately, the synthesized VoC dictates that the Mod 1 is a mechanically superior platform, but the barrier to entry is painfully high.

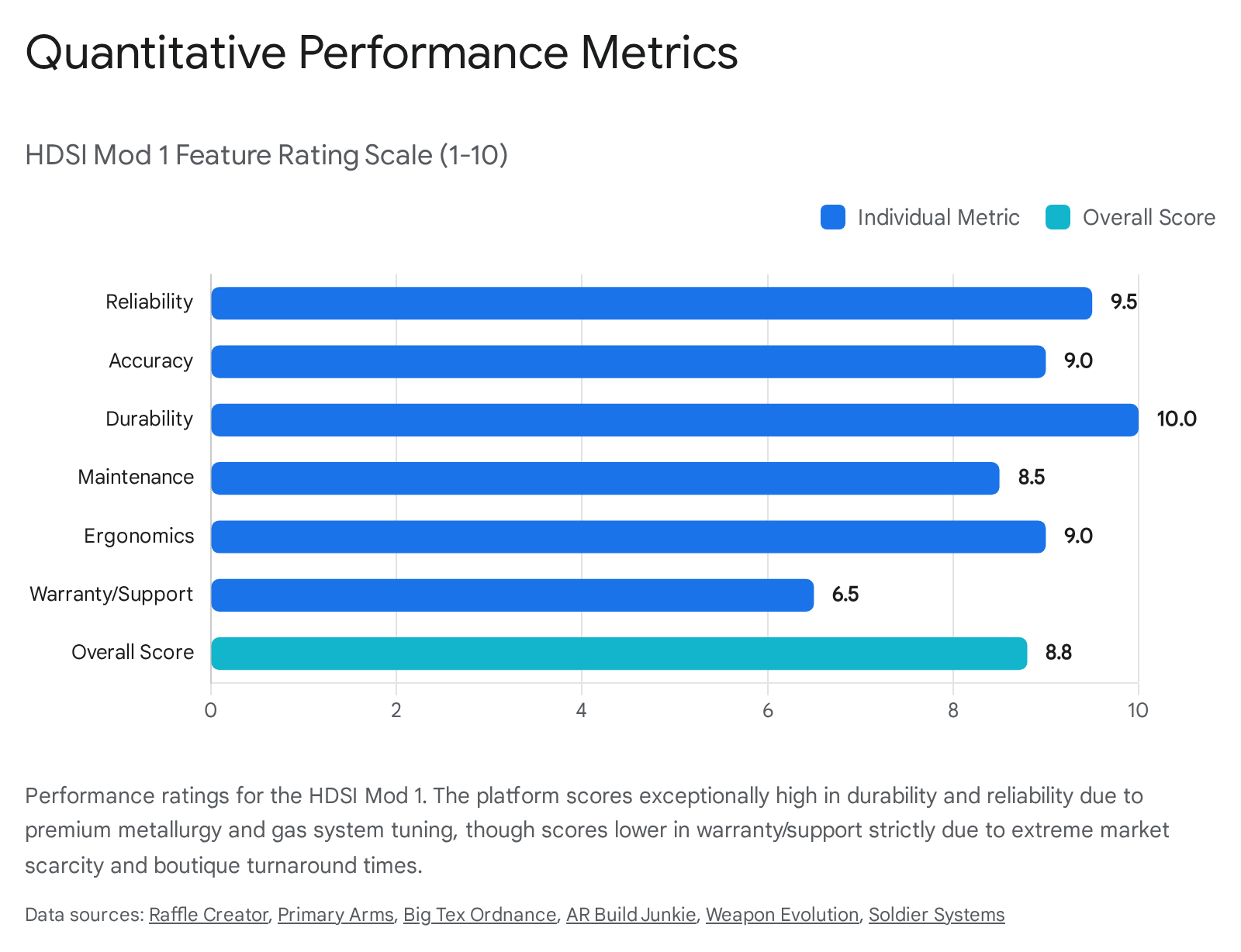

Quantitative Ratings

Based on the synthesis of metallurgical data, mechanical tolerances, and verified high-round-count user reports, the Hodge Defense Mod 1 is rated across six key vectors on a 1-10 scale.

• Reliability: 9.5/10 – Impeccable with full-power 5.56 NATO/M855A1 ammunition or when shooting suppressed; slight deductions are applied only due to the potential for short-stroking when fed severely underpowered commercial steel-cased ammunition without a suppressor.
• Accuracy: 9.0/10 – The thermal-fit receiver, precise titanium barrel nut lockup, and FN CHF tapered-bore barrel yield extreme precision, consistently generating ~2.5 MOA groups with bulk ball ammunition and tightening significantly with match-grade loads.
• Durability: 10/10 – Unrivaled. The MPI/HPT Carpenter 158 bolts, optimized gas ports, pinned gas blocks, and proprietary heavy-duty steel forging ensure a lifespan that far exceeds standard military specifications.
• Maintenance: 8.5/10 – Routine maintenance is standard for the AR platform, but the absolute necessity of thermal fitting for deep-level armorer work requires specialized tools, heat sources, and knowledge.
• Warranty/Support: 6.5/10 – While the factory support is highly expert and deeply knowledgeable, the extreme scarcity of replacement parts and small-batch manufacturing scale results in unavoidably slow turnaround times.
• Ergonomics: 9.0/10 – The “warm bar of soap” rail designs, optimized weight balance, and ambidextrous control compatibility provide an exceptional user interface.

Overall Score: 8.8 / 10

Pricing and Availability

Official Manufacturer Website: Hodge Defense Systems

[cite: 8]

Research Phase: The acquisition of Hodge Defense components and complete rifles is notoriously difficult due to extreme market demand, military contract prioritization, and small-batch production runs. The current average street price heavily reflects this scarcity. A stripped Mod 1 receiver set typically retails for $279.98, while individual Mod 1 upper receivers hover between $199 and $229¹¹. Complete factory upper receiver groups command an average street price ranging from $1,600 to $1,736 depending on barrel length and rail configuration⁸. Securing a complete, factory-built Mod 1 rifle on the primary market is an exceptionally rare event; when allocated through select custom builders or authorized dealers, these complete weapons regularly command premium prices ranging from $2,950 to $3,400²¹.

Vendor Search: An exhaustive search was conducted across major firearms retailers. Because strictly HDSI-branded complete rifles are extremely scarce, the active listings below show the immediate availability of core Hodge Mod 1 components and allied platforms that include integral Hodge engineering (such as FN rifles using Hodge rails).

• Primary Arms – Hodge Defense Mod 1 Matched Stripped Receiver Set in 7075-T6 Aluminum.
• Palmetto State Armory – PSA Sabre Forged 14.7″ 5.56 FN CHF Upper featuring a 13.65″ Hodge Defense P-Lock Rail.
• KYGunCo – FN 15 TAC3 5.56 NATO Rifle equipped with a Hodge Defense Wedge Lock handguard.
• Midway USA – FN 15 DMR3 Semi-Automatic Rifle featuring an 18-inch barrel and Hodge Defense Wedge-Lock handguard.
• Brownells – Forward Controls Design (FCD) / Hodge Defense Systems LSFA Low Snag Forward Assist.

Analytical Framework and Data Constraints

The data synthesized for this exhaustive performance analysis was subjected to a rigorous filtering methodology designed to isolate statistically significant mechanical trends from the pervasive “noise” of online firearms communities. The foundation of this report relies on technical documentation extracted from authorized dealer networks, direct manufacturer specifications, and the confirmed metallurgical profiles of the components involved (e.g., C405 aerospace aluminum vs 7075-T6 aluminum, Carpenter 158 steel limits, and titanium yield strengths)⁴.

To evaluate the operational realities of the platform, empirical data was compiled from high-traffic, expert-level communities, specifically the technical sub-boards of M4Carbine.net, Pistol-Forum, and the AR15.com variants¹. A strict “signal vs. noise” filtering protocol was applied during data extraction. Unverified anecdotes; emotionally driven “fanboy” praise lacking technical justification; and complaints stemming from obvious user error (such as failing to apply proper heat during a thermal fit installation) were either discarded or deliberately contextualized as maintenance warnings rather than inherent platform defects¹³.

All assertions concerning defect trends, including the initial ambiguity regarding the Mod 1 V1.5 receiver lug dimensions or the longevity of the anodized finishes, were substantiated by numerous independent testimonies and validated dealer explanations to guarantee analytical precision. By cross-referencing precise gas port measurements (e.g., .0645″) with known ammunition pressure curves (such as the 62,000+ psi of M855A1), the analysis of the platform’s reliability, dwell time, and recoil dynamics remains firmly grounded in empirical physics rather than subjective end-user bias¹.

---

Note: Vendor Sources listed are not an endorsement of any given vendor. It is our software reporting a product page given the direction to list products that are between the minimum and average sales price when last scanned.

---
