PCC & PDW Evolution at SHOT 2026

Executive Summary: The End of the Blowback’s Reign

The 2026 Shooting, Hunting, and Outdoor Trade (SHOT) Show will likely be recorded in industry histories as the definitive expiration date of the “AR-9” era. For nearly a decade, the Pistol Caliber Carbine (PCC) market was defined by a singular, somewhat stagnant engineering philosophy: the simple blowback, AR-15-derived 9mm carbine. These platforms, while affordable and ubiquitous, suffered from inherent mechanical compromises—specifically, excessive reciprocating mass, harsh recoil impulses relative to caliber, and a reliance on magazine geometries (primarily Glock) that were never designed for carbine feed ramps.

The analysis of the products unveiled on the exhibition floor this year indicates a radical shift in manufacturing priorities. The “Top 20” platforms identified in this report are not merely iterative updates; they represent a fundamental bifurcation of the market into two distinct, sophisticated lineages. On one side, we witness the Democratization of Delay—the migration of roller-delayed, bearing-delayed, and gas-delayed operating systems from the exorbitant price tiers of European imports to the accessible mid-market of American mass production. On the other, we see the maturation of the Integrated Chassis PDW, where the firearm is designed from the ground up to collapse into a sub-liter volume, prioritizing concealability and rapid deployment over traditional rifle ergonomics.

This report provides an exhaustive technical and market analysis of the twenty most significant Personal Defense Weapons (PDW), Submachine Guns (SMG), and Pistol Caliber Carbines (PCC) of 2026. The selection criteria prioritize engineering innovation, market disruption potential, and manufacturing capability. The data suggests that the “buffer tube” is now viewed as a liability, 10mm Auto is experiencing a heavy-for-caliber renaissance, and the industry has finally solved the engineering challenges required to make delayed-blowback systems affordable for the civilian consumer.

Section I: The Roller-Delayed Renaissance (The MP5 Killers)

The most significant engineering trend of 2026 is the widespread adoption and adaptation of the roller-delayed blowback system. Historically, this mechanism was the exclusive domain of the Heckler & Koch MP5 and its licensed variants—a system praised for its smooth recoil impulse but derided for its stamped-steel construction, difficult optics mounting, and lack of modularity. In 2026, manufacturers have successfully divorced the roller-delayed mechanism from the MP5 platform, housing the operating system in modern, extruded aluminum receivers with M-LOK compatibility and AR-style ergonomics.

1. Springfield Armory Kuna: The Import Disrupter

The Springfield Armory Kuna 1 represents the most aggressive play for market dominance in the sub-$1,200 sector. Manufactured by HS Produkt in Croatia 2—the facility responsible for the highly successful Hellcat and Echelon pistol lines—the Kuna is not a clone of an existing platform but a modernization of the roller-delayed concept designed to undercut the pricing of established competitors like B&T and H&K.

Technically, the Kuna utilizes a monolithic aluminum upper receiver.1 This is a critical departure from the stamped sheet metal of the MP5 lineage. The rigidity of a monolithic upper allows for a continuous top rail, solving the primary deficiency of legacy roller-delayed guns: reliable optics mounting. In traditional stamped designs, claw mounts can shift under impact or heavy use; the Kuna’s integrated rail eliminates this variable entirely. The barrel is a 6-inch cold radial hammer-forged unit 1, a manufacturing process HS Produkt has perfected, which reportedly yields sub-2 MOA accuracy—exceptional performance for a pistol caliber platform.

The operating system is a classic roller-delayed blowback, utilizing a locking roller to delay the bolt’s rearward travel until pressures have dropped to safe levels.1 This delay allows for a significantly lighter bolt carrier group compared to a direct blowback system, which translates directly to reduced reciprocating mass and, consequently, less muzzle dip during rapid strings of fire. The Kuna feeds from proprietary translucent 30-round magazines featuring metal feed lips 2, a design choice that prioritizes durability over the convenience of Glock magazine compatibility. While some consumers may balk at proprietary magazines, the geometry of a double-feed magazine (like the Kuna’s) is vastly superior for carbine reliability than the single-feed design of Glock magazines.

Market positioning is aggressive. With an MSRP ranging between $1,000 and $1,150 4, Springfield is positioning the Kuna to destroy the market share of high-end straight-blowback AR-9s (which often cost $1,200–$1,500) while undercutting the B&T APC9 and HK SP5 by nearly 50%. The inclusion of a Picatinny endplate 1 acknowledges the industry-wide shift toward standardizing stock and brace attachments, allowing users to leverage the massive aftermarket of 1913-interface stocks developed for the MCX and various brace systems.

2. JP Enterprises JP-5: The Competitor’s scalpel

If the Kuna is the roller-delayed carbine for the masses, the JP Enterprises JP-5 is the precision instrument for the elite. The 2026 iterations of the JP-5 solidify its status as the “Ferrari” of the PCC sector.5 While the platform was introduced previously, the 2026 updates focus on granular tunability, a requirement for the high-level United States Practical Shooting Association (USPSA) competitor.

The JP-5 distinguishes itself by retaining the AR-15 manual of arms entirely.6 The safety, magazine release, and charging handle (in some configurations) are exactly where an AR shooter expects them to be. This muscle memory compatibility is the JP-5’s primary advantage over the MP5 or Scorpion platforms. However, the core innovation lies in the lock pieces. JP Enterprises offers interchangeable lock pieces with varying angles (e.g., 80°, 90°).6 These angles dictate the mechanical disadvantage applied to the rollers. A competitor running high-velocity, lightweight 9mm loads for a flat trajectory needs a different delay timing than a tactical user running heavy subsonic ammunition with a suppressor.

By combining this tunable delay with their Silent Captured Spring (SCS) buffer system 6, JP Enterprises has created a system that can be tuned to have virtually zero muzzle rise. The SCS eliminates the “twang” of a traditional buffer spring and allows for fine-tuning of the return stroke. The result is a carbine that, according to team shooters, “shoots like a.223, not a 9mm” 6, implying the recoil is sharper but lighter and more predictable than the heavy “thud” of a blowback 9mm.

3. Matador Arms MAT-9 Roller-Delayed: The Modular Upgrade

Matador Arms has delivered one of the most disruptive engineering pivots of the show by transitioning their MAT-9 line from simple blowback to roller-delayed operation.7 Crucially, they have done this without altering the external form factor or compatibility, creating a “drop-in” upper receiver solution.

The significance of the MAT-9 lies in its democratization of recoil mitigation. Previously, accessing roller-delayed technology required purchasing a complete, proprietary firearm (like an SP5 or JP-5). The MAT-9 upper, however, is compatible with standard AR-15 lowers and various magazine adapters (Glock, Colt, Scorpion).8 This means a user with a budget-tier lower receiver (e.g., Anderson or Palmetto State Armory) can purchase a MAT-9 upper for approximately $575–$599 9 and instantly upgrade their system to a roller-delayed operating mechanism.

This creates a “Ship of Theseus” upgrade path for the millions of AR-9 owners currently in the market. Rather than selling their entire firearm to upgrade to a better operating system, they can simply swap the upper receiver. The MAT-9 upper is a bufferless design, containing the recoil system within the upper receiver itself 8, which further allows the user to install a folding stock on a standard AR lower—a feature previously requiring expensive adapters like the Law Tactical folder.

4. Zenith Firearms ZF-9 & ZF-10: The Bufferless Evolution

Zenith Firearms, a company that built its reputation importing MKE MP5 clones from Turkey, has successfully transitioned to US-based manufacturing with the ZF-9 and ZF-10 platforms.10 These firearms represent a “bufferless modernization” of the roller-delayed concept.

Unlike the AR-platform adaptations that often still rely on a buffer tube for function or mounting, the ZF series features a recoil system contained entirely within the upper receiver.10 This design choice is critical for the “Bag Gun” role, as it allows for a true folding stock that does not impede the function of the firearm (though firing while folded is generally less controllable).

The introduction of the ZF-10 in 10mm Auto 10 is particularly noteworthy. 10mm Auto generates substantially higher bolt velocities and chamber pressures than 9mm. In simple blowback systems, this necessitates an incredibly heavy bolt and stiff spring to prevent case ruptures or out-of-battery detonations, often resulting in a firearm that is heavy and unpleasant to shoot. The roller-delayed system of the ZF-10 mechanically manages this energy, taming the 10mm’s recoil impulse significantly. This makes the ZF-10 a viable candidate for wilderness defense—a “bear gun” that offers higher capacity and faster follow-up shots than a revolver, with a mechanism that doesn’t beat the shooter (or the gun) to death.

5. Angstadt Arms MDP-9 Gen 2: The suppressed Specialist

Angstadt Arms continues to refine the MDP-9, with the Gen 2 updates focusing heavily on the “Vanquish” integral suppression system.11 The MDP-9 utilizes a roller-delayed action similar to the MP5 but housed in a hyper-lightweight chassis.

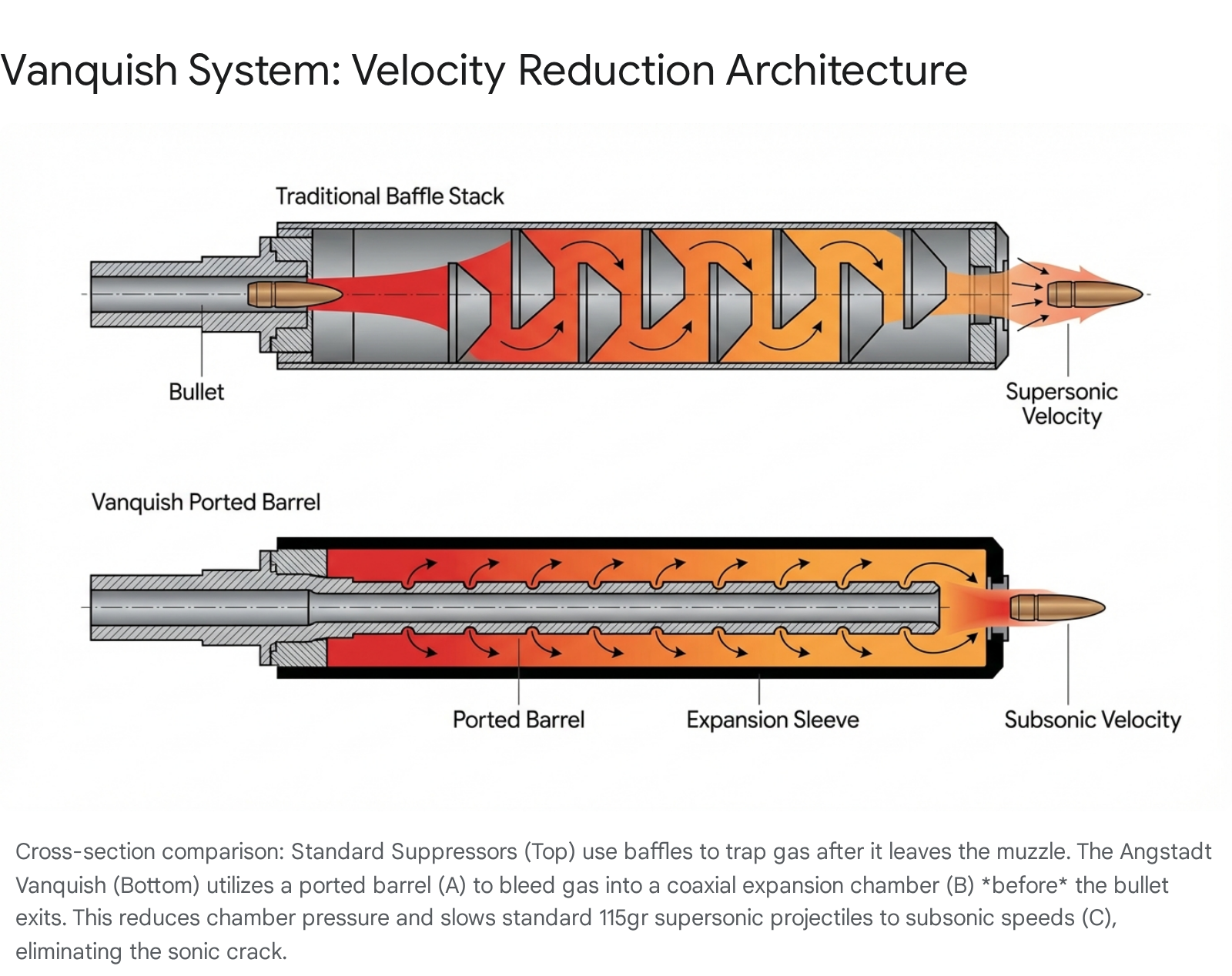

The Vanquish system is notable because it uses a ported barrel design to bleed gas into the suppressor, effectively rendering standard supersonic 115-grain ammunition subsonic.11 This is a massive logistical advantage for the user, as it negates the need to source specialized (and often expensive) subsonic ammunition to achieve “Hollywood quiet” performance. The roller-delayed action is essential here; by delaying the bolt opening, the system ensures that the majority of gas and noise is directed forward through the baffles rather than escaping out the ejection port (port pop), which is a common issue in suppressed blowback guns.

Section II: The Engineering of Delay (Mechanical Analysis)

To fully appreciate the significance of the 2026 market shift, one must understand the physics that separate these new platforms from their predecessors. The transition from Simple Blowback to Delayed Blowback is not merely a marketing buzzword; it is a fundamental change in how energy is managed.

In a Simple Blowback system (like the Hi-Point HP-15 or a standard AR-9), the only force keeping the breech closed during ignition is the inertia of the bolt mass and the tension of the recoil spring. To safely contain the 35,000 PSI pressure of a 9mm round, the bolt must be heavy—typically around 20 to 24 ounces. When this heavy mass reciprocates, it creates a “pogo stick” effect. The muzzle dips when the bolt slams forward and rises when it slams back. This reciprocating mass creates a recoil impulse that is often described as sharper and more jarring than a gas-operated 5.56mm rifle, despite the 9mm cartridge having significantly less energy.

The Roller/Bearing Delay solution (seen in the Kuna, JP-5, and MAUL) uses mechanical disadvantage to keep the breech closed. Rollers or bearings are pushed outward into recesses in the trunnion. When the round fires, the rearward force of the casing must first overcome the mechanical leverage required to squeeze these rollers back into the bolt carrier. This “delay” allows chamber pressures to drop to safe levels before the bolt unlocks. Crucially, because mechanical leverage is doing the work of holding the breach closed, the bolt itself can be significantly lighter. A roller-delayed bolt might weigh 40-50% less than a blowback bolt. Less moving mass equals less muzzle movement and a softer, smoother recoil impulse.

Section III: The Bufferless Revolution & “The Fold” (The Bag Guns)

The second dominant macro-trend of SHOT 2026 is the erasure of the AR-15 buffer tube from the PDW form factor. The industry has collectively recognized that for a Personal Defense Weapon to be viable in a civilian context—where the “Gray Man” doctrine of discreet carry prevails—it must fit inside a standard, innocuous backpack (approx. 18-20 inches max length). This requirement has birthed a generation of “Bag Guns” that utilize internal recoil systems to facilitate folding stocks and braces.

6. Sig Sauer P365-Flux Raider: The Hybrid Standard

Perhaps the most viral and significant release of SHOT 2026 was the official factory release of the Sig Sauer P365-Flux Raider.13 For years, Flux Defense existed as an aftermarket innovator, producing chassis systems for the P320. Sig Sauer’s decision to bring the P365 variant in-house as a factory SKU signals a major paradigm shift: major manufacturers are now willing to blur the lines between “pistol” and “PDW” at the factory level.

The concept bridges the gap between a concealed carry handgun and a carbine. By utilizing the serialized P365 Fire Control Unit (FCU), the Flux Raider is legally a pistol (or SBR, depending on configuration) but offers the stability of a chassis system.13 It features a rapid-deploy brace that springs open with a lever press, an integrated spare magazine carrier that doubles as a vertical grip (circumventing vertical foregrip laws on pistols by angling the mag carrier), and an optics-ready mounting surface that holds zero independent of the slide. With a footprint smaller than a laptop and a capacity of 30+ rounds (two 17rd magazines on board), it represents the ultimate “backpack gun.” The engineering challenge here was miniaturization—fitting a stable bracing system onto a subcompact pistol frame without adding excessive bulk or weight (the chassis weighs just ~8.7 oz empty).13

7. PSA X5.7: The “MP7 at Home”

Palmetto State Armory (PSA) has built an empire on identifying “Grail Guns”—firearms that are highly desired but unobtainable or unaffordable—and producing accessible clones. The X5.7 15 is a dedicated PDW chambered in 5.7x28mm that targets the aesthetic and functional niche of the Heckler & Koch MP7.

The MP7 is famously unavailable to civilians due to its status as a machine gun and import restrictions. The PSA X5.7 mimics the MP7’s ergonomics, specifically the “grip-in-center” layout which provides excellent balance. The firearm features a polymer lower and an aluminum upper 15, keeping weight low. Mechanically, PSA has implemented a delayed blowback system (likely a lever or rock-lock system similar to the AA 5.7) to handle the high pressure of the 5.7x28mm cartridge.16

This release is timely. 5.7x28mm ammunition prices have stabilized following the NATO standardization and the entry of more ammo manufacturers (like Fiocchi and AAC). The X5.7 offers the high-capacity (40+ rounds), flat-trajectory, and armor-penetrating potential (with proper ammo) of the 5.7mm cartridge in a package priced for mass consumption.17 It is currently in final endurance testing, with a launch expected in mid-2026.

8. KelTec Sub2000 Gen 3 CQB: The Silence of the Fold

KelTec has updated their iconic folding carbine, the Sub2000, to its third generation. The Gen 3 CQB 18 addresses the two most significant complaints of the previous generations: the inability to fold the rifle with an optic mounted, and the harsh noise/concussion of the blowback action.

The Gen 3 features a rotating forend.19 In previous models, the gun folded vertically, smashing any top-mounted optic into the stock. The new design allows the handguard and optic section to rotate out of the way before the rifle folds, preserving zero and allowing for the use of modern red dots. The “CQB” designation refers to the integral suppression system. By integrating the suppressor into the barrel length, KelTec keeps the overall package short and handy. As a “truck gun” or hiking companion, the Sub2000 remains unrivaled in its deployed-to-stowed size ratio, and the addition of suppression makes it a far more practical tool for emergency use without hearing protection.

9. B&T “Just in Case” Briefcase: The Executive Solution

Switzerland’s B&T (Brügger & Thomet) unveiled a product that leans heavily into the “executive protection” niche: the “Just in Case” Briefcase PDW system.20 While arguably a specialized accessory, its integration is so complete it functions as a distinct weapon system.

Inspired by the Heckler & Koch “Operational Briefcase” for the MP5K, the B&T version is a polymer hard case that houses a B&T submachine gun (compatible with models like the APC9 or SPC9). The engineering marvel is the firing mechanism: a trigger is integrated into the briefcase handle, linked mechanically to the firearm’s trigger inside. An optic pass-through allows the operator to aim the briefcase itself. This system allows for immediate engagement in high-threat environments without the “brandishing” phase of drawing a weapon. While priced at a premium (approx. $1,250 for the case alone, excluding the firearm) 20, it demonstrates B&T’s dominance in the specialized protection sector and their ability to engineer complex, niche solutions.

10. Bear Creek Arsenal (BCA) Bufferless 9mm: The Entry Level Folder

Bear Creek Arsenal plays a critical role in the market ecosystem by establishing the price floor. Their Bufferless 9mm 21 is significant because it brings the “folding stock AR-9” capability to the sub-$500 price bracket.

By designing a proprietary bolt carrier group (BCG) with contained recoil springs 22, BCA eliminates the receiver extension. While the recoil impulse of this simple blowback system is likely heavier than the delayed systems mentioned earlier, its existence forces the entire market to compete. It proves that “bufferless” does not have to mean “expensive.” For a budget-conscious user who needs a PDW to fit in a gym bag, the BCA offers 90% of the utility of a Sig MCX at 20% of the cost.

Section IV: Duty-Grade & High Performance Innovations

This cluster represents the pinnacle of reliability and mechanical ingenuity. These platforms are designed for Law Enforcement (LE) contracts and discerning users who prioritize bomb-proof durability over rock-bottom pricing.

11. Mean Arms MAUL: The Tunable Revolution

Mean Arms introduced the MAUL, utilizing a Bearing Delayed Blowback system 23 that offers a distinct alternative to roller delay. The mechanism uses ball bearings that interact with the barrel extension and the bolt carrier to delay opening. Bearings offer a distinct advantage over rollers: they provide more contact surface area, which theoretically spreads the load more evenly and reduces wear on the locking surfaces.24

The killer feature of the MAUL is Tunability. Users can swap the “lifters” (the ramps that push the bearings outward) to adjust the dwell time.23 This allows the firearm to be mechanically optimized for specific ammunition. A competitive shooter running light 147-grain subsonic loads for USPSA can install a “fast” lifter to ensure reliable cycling with low-energy ammo. Conversely, a police armorer can install a “slow” lifter for a SWAT team using high-pressure +P+ duty ammunition, preventing the bolt from opening too early and battering the receiver. This level of customization was previously the domain of custom gunsmithing but is now an off-the-shelf feature.

12. Daniel Defense PCC: The “Mk18 of PCCs”

Daniel Defense, known for their ubiquity in the AR-15 market with the Mk18 and DDM4, has finally entered the PCC space.25 The Daniel Defense PCC distinguishes itself by choosing the CZ Scorpion EVO 3 magazine pattern over the more common Glock pattern.26

This is a significant engineering decision. Glock magazines are designed for pistols; they present the round at a steep angle and have a single feed position. In a carbine, this geometry can lead to feeding issues, especially with hollow-point ammunition. The Scorpion magazine is a true double-stack, double-feed design (similar to an AR-15 mag), which is inherently more reliable for high-speed automated fire and debris tolerance. By choosing this magazine, Daniel Defense signals that they prioritize reliability over the convenience of magazine commonality. The platform features fully ambidextrous controls (mirroring the DD4 RIII) and is available in SBR and pistol configurations.28 Note: While airsoft variants were also teased, the real-steel MSRP of $1,949 confirms its positioning as a premium duty weapon.

13. Laugo Arms Alien Creator PDW: Physics Defied

The Laugo Alien pistol is famous for having the lowest bore axis in the world. At SHOT 2026, Laugo showcased PDW/Carbine configurations of the Alien Creator.29

The physics of the Alien are unique: the barrel is fixed and sits below the recoil system (the top rail/slide). This creates a recoil impulse that drives straight back into the web of the hand, virtually eliminating muzzle rise.31 In a carbine format with a stock, this results in a red dot sight that simply does not move during rapid fire. The system uses a gas-piston delayed blowback mechanism, which further smooths the impulse. While the price point is extreme (likely $4,000+), it represents the absolute ceiling of performance for the platform, targeting the most affluent segment of the competition market.

14. Jacob Grey TWC / Hex Pro: Aerospace Precision

Jacob Grey Firearms, with a background in aerospace manufacturing, displayed their high-end 1911/2011 hybrid platforms, specifically the NOX 9 and Hex Pro.32 While often categorized as pistols, these double-stack 1911s (2011 style) effectively function as ultra-compact PDWs when equipped with modern compensators and large-capacity magazines.

The “TWC” (Throwback With Class) and Hex Pro lines utilize 7075-T6 billet aluminum and precision machining tolerances that exceed standard industry practices. The Hex Pro, in particular, is designed as a performance-driven defensive tool, integrating the control of a 2011 (light sliding trigger, heavy frame) with the reliability required for carry.33

Section V: The Caliber Wars (5.7x28mm, 10mm, & 8.6 Blk)

Innovation isn’t just about the gun; it’s about the bullet. 2026 saw a move away from the 9mm monoculture toward calibers that offer specific ballistic advantages.

15. Smith & Wesson M&P FPC 10mm: The Wilderness Carbine

Building on the surprise success of the 9mm FPC (Folding Pistol Carbine), Smith & Wesson released a 10mm Auto version.5 The 10mm Auto cartridge gains significant velocity from a 16-inch barrel, with some loads approaching the energy levels of low-end.41 Magnum. This transforms the FPC from a recreational plinker into a legitimate deer hunting or wilderness defense carbine.

The FPC’s side-folding mechanism allows it to stow compactly, making it an ideal companion for backpackers in bear country who need more power than a 9mm but less bulk than a rifle. This release directly challenges the Hi-Point 10mm carbine, offering a much more refined, ergonomic, and reliable package.

16. Q Boombox: The Heavy PDW

The Q Boombox 35 challenges the definition of a PDW. Chambered in 8.6 Blackout (a.338 caliber projectile in a shortened 6.5 Creedmoor case), the Boombox is designed to deliver massive terminal energy from short barrels, particularly when suppressed.

The 8.6 Blackout utilizes a fast 1:3 twist rate, which imparts massive rotational energy to the projectile. Upon impact, these monolithic copper bullets expand violently, creating wound channels disproportionate to their velocity. The Boombox serves as a “heavy PDW”—compact enough for vehicle operations but capable of dropping large game or penetrating barriers that would defeat pistol calibers. It is the “Battle Rifle” shrunk down to PDW proportions.

17. Show Low Manufacturing Black Jack: 10mm Innovation

Show Low Manufacturing displayed the Gen 3 version of their Black Jack PCC, now available in 10mm Auto and.45 ACP.37 The Gen 3 features a mechanical delay system (detent/roll pin delay) designed to handle the 10mm’s pressure without the massive bolt weight of a blowback gun.37

Crucially, Show Low moved away from MP5 magazines for the 10mm version (which are rare and expensive) and seemingly optimized the feed geometry for reliability. The shift to a standardized AR handguard interface 37 also simplifies the platform, reducing weight and screw count.

Section VI: Retro, Hybrids, & Budget Kings

Nostalgia and affordability remain powerful market drivers.

18. Lionheart Industries Daewoo K7: The Unicorn Returns

The Daewoo K7 is a legendary suppressed submachine gun variant of the South Korean K2 rifle. Lionheart Industries announced the importation/manufacture of a semi-auto variant for the US market.38 This platform satisfies a massive pent-up demand from military collectors. The K7 features an integral suppressor look (or function, depending on NFA configuration) and utilizes the robust long-stroke gas piston system of the K2 adapted for the sub-gun role.

19. Brigade Manufacturing Makasi: The FAL Hybrid

The Makasi 40 is a fascinating hybrid that marries the aesthetic and short-stroke gas piston operation of the FN FAL with the modularity of the AR-15. It uses a FAL-style charging handle and piston system but accepts AR-15 trigger groups and lowers. The 2026 9mm variant offers a “Cold War” aesthetic with modern ergonomics, appealing to those tired of the AR-15’s visual dominance.

20. PSA AXR SSP “Krink”: The 9mm AK

PSA delivered the long-awaited “Krink” style AK in 9mm.42 While visually mimicking the AKS-74U, the AXR SSP (Short Stroke Piston) claims to use a piston system rather than simple blowback (or a hybrid system), which would offer smoother recoil than standard 9mm AKs (like the KP-9). It fills the niche for a classic Eastern Bloc PDW with cheap, available ammo.

Honorable Mention: Mimic Firearms Speed9 The Speed9 44 deserves mention for its sheer creativity. It uses a “rotating” magazine system where two 30-round double-stack magazines are fused back-to-back. When one stack is empty, the user ejects, rotates the mag 180 degrees, and reinserts. It provides 60 rounds of on-board ammunition without the bulk of a drum.

Conclusions

The data from SHOT Show 2026 confirms that the PCC market has matured. We are no longer in the era of “make it work”; we are in the era of “make it optimized.” The prevalence of delay systems proves that consumers are educated on recoil mechanics and demand better performance. The integration of folding mechanisms proves that portability is a non-negotiable requirement for the civilian defender.

For the industry analyst, the key takeaway is the compression of the mid-tier. The $700–$900 simple blowback AR-9 is effectively dead. Consumers will either spend $450 for a Bear Creek/Hi-Point or $1,100 for a Springfield Kuna/Matador delayed system. There is no longer a justification for paying $900 for a technology (simple blowback) that has been rendered obsolete by the democratization of delay.

RankModelManufacturerCaliberOperating SystemKey FeatureMSRP (Approx)
1KunaSpringfield Armory9mmRoller-DelayedImport value, monolithic rail 1$1,000-$1,150
2P365 FluxSig Sauer9mmTilt-BarrelFactory chassis, rapid deploy 13$1,699
3JP-5JP Enterprises9mmRoller-DelayedTunable lock pieces, competition 6$3,200+
4MAULMean Arms9mmBearing-DelayedTunable bearings, AR compatible 23$1,200+
5MAT-9Matador Arms9mmRoller-DelayedBufferless upper, wide compat 7$575 (Upper)
6X5.7PSA5.7×28Delayed BlowbackMP7 aesthetics, capacity 16~$600-800
7FPC 10mmSmith & Wesson10mmBlowbackFolding, heavy caliber 34$699
8Just in CaseB&T9mmHydraulic BufferBriefcase fire capability 20$1,250 (Case)
9Sub2000 Gen3KelTec9mmBlowbackIntegral suppressor, rotating forend 18$1,199
10ZF-9/10Zenith Firearms9/10mmRoller-DelayedBufferless, 10mm option 10TBD
11Daniel Defense PCCDaniel Defense9mmBlowbackScorpion mags, duty grade 26$1,949
12MDP-9 Gen 2Angstadt Arms9mmRoller-DelayedIntegral suppression updates 11$2,500+
13Alien CreatorLaugo Arms9mmGas-DelayedLow bore axis, fixed barrel 31$4,000+
14K7Lionheart9mmGas/BlowbackRetro styling, integral supp 39TBD
15BoomboxQ8.6 BlkGas ImpingementHeavy PDW, fast twist 35$3,000+
16MakasiBrigade Mfg9mmHybrid PistonFAL/AR hybrid 40~$1,600
17Black JackShow Low10mmMech Delay10mm delay system 37~$1,800
18AXR SSPPSA9mmPistonKrinkov aesthetics 43~$1,100
19Bufferless 9mmBear Creek9mmBlowbackBudget folder 21~$450
20Speed9Mimic Firearms9mmBlowback60rd rotating mag 44$1,799

Please share the link on Facebook, Forums, with colleagues, etc. Your support is much appreciated and if you have any feedback, please email us in**@*********ps.com. If you’d like to request a report or order a reprint, please click here for the corresponding page to open in new tab.

Sources Used

  1. KUNA 9mm Pistol – KN9069B – Springfield Armory, accessed January 23, 2026, https://www.springfield-armory.com/kuna-series-pistols/kuna-pistols/kuna-9mm-pistol/
  2. Springfield Armory® Launches Roller-Delayed Kuna™ 9mm Pistol, accessed January 23, 2026, https://www.springfield-armory.com/intel/press-releases/springfield-armory-launches-roller-delayed-kuna-9mm-pistol/
  3. Kuna Pistols – Springfield Armory, accessed January 23, 2026, https://www.springfield-armory.com/kuna-series-pistols/kuna-pistols/
  4. Springfield Armory KUNA: A Modern Roller-Delayed 9mm Carbine for a Grand?! – YouTube, accessed January 23, 2026, https://www.youtube.com/watch?v=yuTHdm-w1fA
  5. Best Pistol-Caliber Carbines (PCC): 9mm & Beyond – Pew Pew …, accessed January 23, 2026, https://www.pewpewtactical.com/pistol-caliber-carbines/
  6. JP-5™ Roller Delayed 9mm Carbine – JP Rifles, accessed January 23, 2026, https://www.jprifles.com/1.2.18_JP-5.php
  7. The NEW Matador Arms Roller-Delayed MAT-9 [GunCon 2025] | thefirearmblog.com, accessed January 23, 2026, https://www.thefirearmblog.com/blog/the-new-matador-arms-roller-delayed-mat-9-guncon-2025-44821738
  8. Pistols – Matador Arms LLC, accessed January 23, 2026, https://matadorarms.com/product-category/pistols/
  9. MAT-9™ Roller Delayed Upper Receiver Black – Matador Arms, accessed January 23, 2026, https://matadorarms.com/product/mat-9-9mm-ar-rollerdelayed-upper/
  10. [SHOT 2026] New Zenith Firearms ZF-9 and ZF-10 MRDS PDW …, accessed January 23, 2026, https://www.thefirearmblog.com/blog/shot-2026-new-zenith-firearms-zf-9-and-zf-10-mrds-pdw-pistols-44825407
  11. Shot Show 2026 New Guns & Suppressors – Angstadt Arms, accessed January 23, 2026, https://angstadtarms.com/shotshow/
  12. Roller Delayed AR9 | Angstadt Arms MDP-9 GEN2, accessed January 23, 2026, https://angstadtarms.com/mdp9/
  13. Raider 365 Ultralight: Flux Defense Has a Polymer PDW — SHOT Show 2026, accessed January 23, 2026, https://gunsamerica.com/digest/raider-365-ultralight-flux-defense-shot-show-2026/
  14. SHOT Show 2026 Range Day: Like New Guns?, accessed January 23, 2026, https://www.guns.com/news/2026/01/20/shot-show-2026-range-day-new-guns
  15. The PSA X5.7 SHOT Show 2026 Update – The PSA Blog – Palmetto State Armory, accessed January 23, 2026, https://palmettostatearmory.com/blog/the-psa-x57-shot-show-2026-update.html
  16. The PSA X5.7 – SHOT Show 2026 Update | Palmetto State Armory – YouTube, accessed January 23, 2026, https://www.youtube.com/watch?v=D4wHQuNlcIc
  17. Shot 2026 – General Discussion – Palmetto State Armory | Forum, accessed January 23, 2026, https://palmettostatearmory.com/forum/t/shot-2026/42990
  18. SUB CQB | Folding, Suppressed Carbine in 9mm – KelTec, accessed January 23, 2026, https://www.keltecweapons.com/firearm/rifles/sub2000-cqb/
  19. KelTec Sub2000 Gen3 – Now With A Twist | thefirearmblog.com, accessed January 23, 2026, https://www.thefirearmblog.com/blog/2024/01/03/keltec-sub2000-gen3/
  20. B&T Shocked Everyone With the “Just in Case” at SHOT Show 2026 – YouTube, accessed January 23, 2026, https://www.youtube.com/watch?v=skIf5dRdC3Y
  21. Discover 9mm Bufferless Versatility – Bear Creek Arsenal, accessed January 23, 2026, https://www.bearcreekarsenal.com/bufferless
  22. Cheap and it Works – Bear Creek Arsenal Bufferless High Value 9mm PCC – YouTube, accessed January 23, 2026, https://www.youtube.com/watch?v=wnnlifVwU8E
  23. Ultra-Light, Bearing-Delay PCC for Competition: Mean Design MAUL | SHOT Show 2025, accessed January 23, 2026, https://www.youtube.com/watch?v=C72xBU7w2xw
  24. TFB Review: Mean Arms 9mm Bearing Delay Blowback Upper Receiver – The Firearm Blog, accessed January 23, 2026, https://www.thefirearmblog.com/blog/2023/12/19/tfb-review-mean-arms-9mm-bearing-delay-blowback-upper-receiver/
  25. Daniel Defense Debuts New MUTE and NULL Suppressors | Hook & Barrel Magazine, accessed January 23, 2026, https://www.hookandbarrel.com/insider-daniel-defense/daniel-defense-debuts-new-mute-and-null-suppressors
  26. The Newest from @danieldefense PCC GBB at Shot show #evike #shotshow2026 – YouTube, accessed January 23, 2026, https://www.youtube.com/shorts/9KZfMvir-Sw
  27. Daniel Defense | Daniel Defense, accessed January 23, 2026, https://danieldefense.com/
  28. Shop By Usage | Daniel Defense, accessed January 23, 2026, https://danieldefense.com/shop-by-usage
  29. SHOT Show 2026 Just Went Insane — 12 New Guns You Need to See – YouTube, accessed January 23, 2026, https://www.youtube.com/watch?v=hT3ntTbJUsc
  30. Alien Creator Evolution – Laugo Arms, accessed January 23, 2026, https://laugoarmsusa.com/alien-creator-evolution/
  31. Alien Pistol – Laugo Arms, accessed January 23, 2026, https://laugoarmsusa.com/alien-pistol/
  32. NEW Jacob Gray Pistols – SHOT Show 2026 – YouTube, accessed January 23, 2026, https://www.youtube.com/watch?v=pAx-Hb-HeKo
  33. 2026 Shot Show | Jacob Grey Firearms Website, accessed January 23, 2026, https://jacobgreyfirearms.com/2026-shot-show
  34. Range Review: Smith & Wesson M&P FPC 10mm Auto | An Official Journal Of The NRA, accessed January 23, 2026, https://www.americanhunter.org/content/range-review-smith-wesson-m-p-fpc-10mm-auto/
  35. Q | DEVELOPING THE BOOMBOX | PART 1 – YouTube, accessed January 23, 2026, https://www.youtube.com/watch?v=nbtXALlSLiE
  36. Range Report: Q Boombox (8.6 Blackout) – The ultimate battle rifle & PDW? – YouTube, accessed January 23, 2026, https://www.youtube.com/watch?v=A9gRbwEhFVo
  37. [SHOT 2026] Show Low’s Gen 3 PCC Now In 10mm, .45 ACP, accessed January 23, 2026, https://www.thefirearmblog.com/blog/shot-2026-show-low-s-gen-3-pcc-now-in-10mm-45-acp-44825674
  38. Daewoo K7 9mm Suppressed SMG at SHOT Show 2026 | 9mm SMG variant of the Daewoo K2 : r/Firearms – Reddit, accessed January 23, 2026, https://www.reddit.com/r/Firearms/comments/1qk05x8/daewoo_k7_9mm_suppressed_smg_at_shot_show_2026/
  39. Where is the Daewoo? K2 and K7 Coming to America…Update | SHOT Show 2026 #shorts #daewoo #korean – YouTube, accessed January 23, 2026, https://m.youtube.com/shorts/NXadW6M2RXs
  40. The Brigade Manufacturing MAKASI ! AR15 – FAL Hybrid – First Shots ! – YouTube, accessed January 23, 2026, https://www.youtube.com/watch?v=QZuBUUf_seE
  41. [SHOT 2023] Brigade Manufacturing Makasi FAL/AR Hybrid Rifle | thefirearmblog.com, accessed January 23, 2026, https://www.thefirearmblog.com/blog/2023/01/21/shot-2023-brigade-manufacturing-makasi-fal-ar-hybrid-rifle/
  42. New Handguns Coming in 2026 – SHOT Show, accessed January 23, 2026, https://shotshow.org/new-handguns-coming-in-2026/
  43. Palmetto’s AXR Short Stroke Piston Rifle – SHOT 2026 – GunsAmerica, accessed January 23, 2026, https://gunsamerica.com/digest/palmettos-axr-short-stroke-piston-rifle-shot-show-2026/
  44. [SHOT 2026] Is Mimic’s Speed9 A Gimmick? | thefirearmblog.com, accessed January 23, 2026, https://www.thefirearmblog.com/blog/shot-2026-is-mimics-speed9-a-gimmick-44825494
Analytics and Reports, AR Analytics, Small Arms Producer and Vendor Analytics, Submachine Gun (SMG) & Pistol Cailber Carbine (PCC) Analytics

Angstadt Arms: Leading the PCC Market in 2025

The civilian small arms market, particularly the segment dedicated to Pistol Caliber Carbines (PCCs), has undergone a distinct maturation phase entering the first quarter of 2025. Once characterized by a novelty-driven “race to the bottom” on price, the sector has bifurcated into two distinct demand curves: an entry-level tier focused on recreational affordability, and a professional-grade tier demanding duty-level reliability, suppression optimization, and advanced operating systems. Angstadt Arms, a Charlotte, North Carolina-based manufacturer, has firmly entrenched itself as a bellwether for the latter category.

This comprehensive report provides an exhaustive analysis of Angstadt Arms’ market position through the lens of its top five highest-impact products: the UDP-9 Platform, the Vanquish Integrally Suppressed System, the MDP-9 Gen 2, the 0940 Receiver Set, and the 9mm Bolt Carrier Group (BCG). Our analysis synthesizes direct sales rankings, technical specifications, competitive benchmarking, and broad-spectrum customer sentiment data to provide actionable intelligence for industry stakeholders, investors, and consumers.

The research indicates that Angstadt Arms is successfully executing a high-risk strategic pivot. While the legacy UDP-9 remains the financial bedrock of the company—maintaining high sales velocity despite aggressive undercutting by budget competitors—the brand’s future equity is increasingly tied to the Vanquish ecosystem. The Vanquish line, particularly the expansion into the.22LR rimfire market in late 2024 and early 2025, represents a significant technical disruption. By moving away from traditional baffle stacks to a ported barrel architecture, Angstadt has addressed two primary consumer pain points: the cost of subsonic ammunition and the maintenance burden of dirty rimfire suppressors.

However, the analysis also reveals notable headwinds. The flagship MDP-9, a roller-delayed subgun designed to compete with the Heckler & Koch SP5, faces a challenging value proposition. While technically superior in ergonomics and modularity, it struggles to overcome the “heritage premium” of the HK brand and the established competition dominance of the JP Enterprises JP-5. Furthermore, the report identifies a growing price sensitivity in the “Builder” segment, where Angstadt’s premium receiver sets and components face stiff competition from high-volume manufacturers like Aero Precision, who offer forged alternatives at significantly lower price points.

Key Strategic Insights:

  • Operational Reliability as a Brand Moat: In a market segment (AR-9) historically plagued by feeding malfunctions and broken components, Angstadt Arms has successfully monetized reliability. The proprietary design of their Last Round Bolt Hold Open (LRBHO) mechanism and feed geometry allows them to command a 30-40% price premium over functional equivalents.
  • The “Integrally Suppressed” Growth Vector: The Vanquish system is not merely a product but a platform strategy. By licensing or adapting this technology across calibers (9mm,.22LR) and platforms (AR-9, Ruger 10/22), Angstadt is insulating itself from the commoditization of standard firearms.
  • NFA Regulatory Friction: A significant portion of Angstadt’s innovative portfolio (Vanquish, SBR variants of UDP/MDP) is tethered to the National Firearms Act (NFA) regulatory environment. While the current market trend favors suppressed shooting, the bureaucratic friction of tax stamps remains a throttle on potential mass-market volume.

1. Introduction: The Evolution of the Pistol Caliber Carbine Market

1.1 Market Maturity and Segmentation

The trajectory of the Pistol Caliber Carbine market in the United States has been defined by three distinct eras. The “Gen 1” era was dominated by Colt-pattern SMG adaptations, which were robust but plagued by magazine availability issues and antiquated ergonomics. The “Gen 2” era, emerging in the mid-2010s, was sparked by the widespread adoption of GLOCK® magazine compatibility. This democratized the platform, allowing users to share magazines between their primary sidearm and their carbine. Angstadt Arms entered the market during this phase and quickly established itself as the premium option for Glock-fed ARs.

We are now firmly in the “Gen 3” era. The market is no longer satisfied with simple blowback operation. Consumers in 2025 demand advanced recoil mitigation systems (roller-delay, radial-delay, hydraulic buffering) and systems designed from the ground up for suppression. The modern consumer is more educated regarding “dwell time,” “bolt velocity,” and “gas blowback,” forcing manufacturers to innovate beyond simple aesthetics.

1.2 Angstadt Arms: Brand Positioning

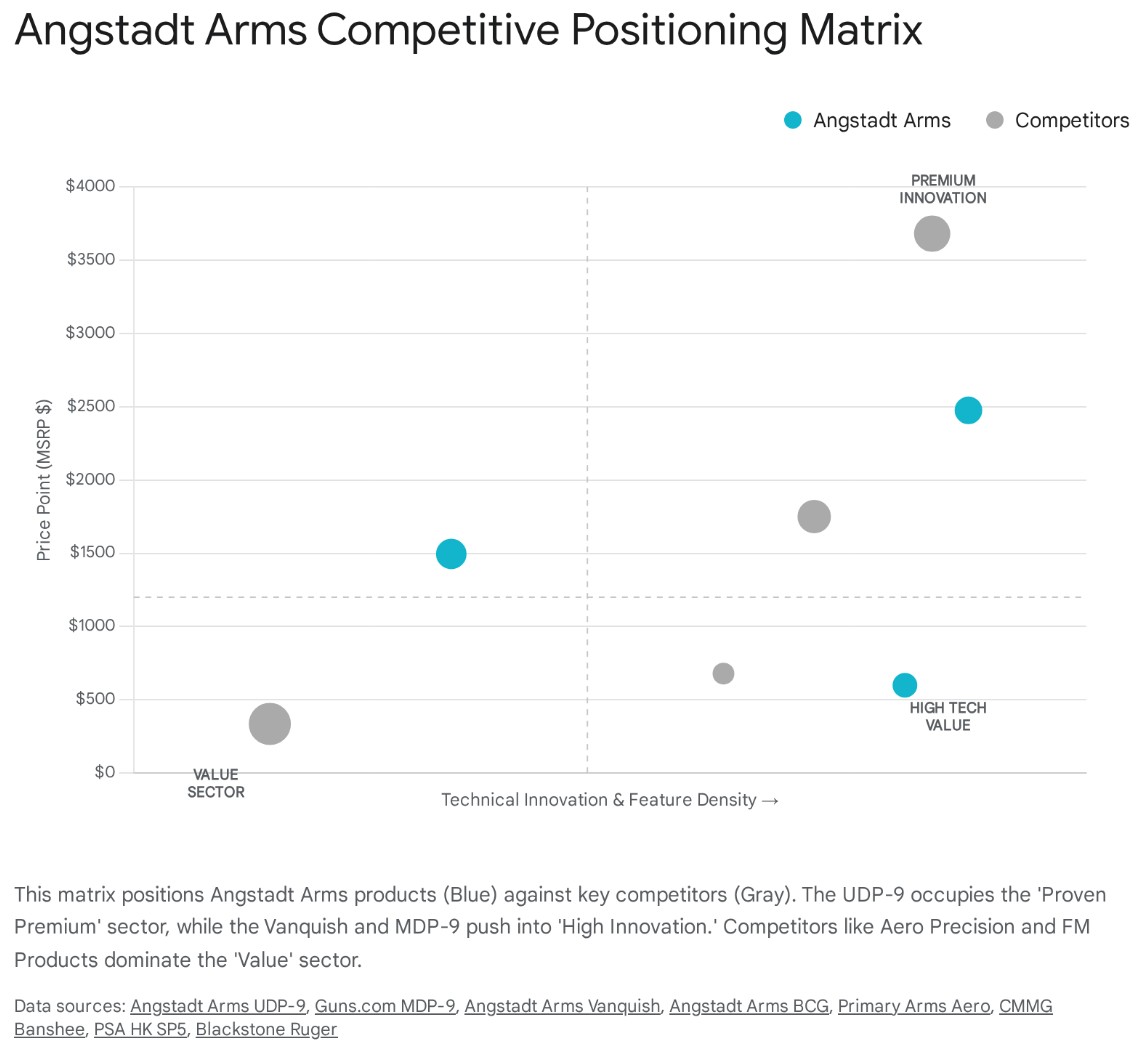

Angstadt Arms occupies a unique “Middle-High” market position. They are not a custom boutique shop producing hand-fitted firearms with year-long lead times, nor are they a mass-production facility churning out budget-tier rifles. They operate in the “Production Premium” space—offering billet construction, tight quality control (QC), and innovative engineering at a price point that is aspirational but attainable for the serious enthusiast or law enforcement professional.

1.3 Methodology and Ranking Criteria

To determine the top 5 products and evaluate their performance, this report utilizes a multi-channel data aggregation methodology:

  1. Sales Velocity Indicators: Analysis of “Top Seller” lists published by the manufacturer and major distributors.1
  2. Sentiment Analysis: Aggregation of verified owner reviews, forum discussions (Reddit r/AR9, r/NFA, r/1022), and long-term torture tests.3
  3. Technical Benchmarking: Comparative analysis of specifications (weight, materials, mechanism) against direct competitors.

The following table presents the ranked analysis of Angstadt Arms’ top performing products for Q1 2025.

Table 1: Angstadt Arms Top 5 Product Performance Matrix (Q1 2025)

RankProduct NameCategoryMarket Sentiment ScoreQuality / PerformanceAnalyst VerdictClosest Competitor
1UDP-9 PlatformFirearm (PCC)High (4.8/5)92/100Strong Buy for reliability-focused users.CMMG Banshee MkGs
2Vanquish SystemSuppressed SystemVery High (4.9/5)95/100Buy for dedicated suppressor owners.Ruger Silent-SR ISB
3MDP-9 Gen 2Firearm (Subgun)Mixed-Positive (4.2/5)88/100Conditional Buy (Niche use cases).HK SP5 / JP-5
40940 Receiver SetComponentHigh (4.7/5)90/100Buy for aesthetic/premium builds.Aero Precision EPC-9
59mm BCGComponentHigh (4.8/5)94/100Strong Buy for reliability upgrades.Faxon Firearms 9mm BCG

The competitive landscape is visually represented below, plotting the relationship between price point and technical innovation across the key products discussed in this report.

Angstadt Arms competitive positioning matrix showing price vs. innovation. "Leading the PCC Market" positioning.

2. Market Leader Analysis: The UDP-9 Platform

2.1 Technical Architecture and Design Philosophy

The UDP-9 is the foundational product that established Angstadt Arms’ reputation. It is a dedicated 9mm AR-style platform optimized for GLOCK® magazines. Unlike many competitors who utilize modified AR-15 forgings, the UDP-9 is constructed from 7075-T6 billet aluminum.6 This manufacturing choice allows for a dedicated, smaller form factor that eliminates the bulk of the standard AR-15 magwell, resulting in a sleek, purpose-built aesthetic that consumers consistently cite as a primary purchase driver.8

Mechanically, the UDP-9 utilizes a direct blowback operating system. This system relies on the mass of the bolt carrier and the resistance of the buffer spring to keep the action closed during firing. While simpler than delayed systems, direct blowback requires precise tuning of mass and spring rates to ensure reliability and prevent “bolt bounce”—a dangerous phenomenon where the bolt rebounds slightly after closing, potentially causing an out-of-battery detonation. Angstadt mitigates this through the use of a specifically weighted 9mm bolt carrier group and a carefully selected buffer assembly, creating a system that is robust, if slightly recoil-heavy compared to modern alternatives.

2.2 Market Performance and Sales Velocity

Despite being a mature product line in a saturated market, the UDP-9 remains a top-selling SKU for Angstadt Arms in 2024 and 2025.1 Its sales durability can be attributed to its entrenched position as the “safe choice” for high-end buyers. In the law enforcement and executive protection sectors, where budget is secondary to reliability, the UDP-9 continues to see adoption as a compact Personal Defense Weapon (PDW). The transition to “pistol” configurations with stabilizing braces remains popular, although the SBR (Short Barreled Rifle) variants have seen a resurgence following clarification on NFA rules.

2.3 Comprehensive Customer Sentiment Analysis

Sentiment surrounding the UDP-9 is exceptionally resilient and overwhelmingly positive, with a distinct emphasis on “out-of-the-box” function.

  • Reliability as the Core Virtue: In the AR-9 world, reliability is not a given. The geometry of feeding a tapered 9mm round from a pistol magazine into a rifle chamber is fraught with issues. Customer reviews and independent torture tests (e.g., 1,000+ round burn-downs) consistently report zero malfunctions with the UDP-9.3 This stands in stark contrast to budget builds that often require “tuning” of buffer weights and ejectors.
  • The “Premium” Feel: Owners frequently praise the machining quality. The billet receivers lack the “slop” or rattle often found in forged competitors. The absence of a forward assist, which is functionally useless on a 9mm blowback gun, is appreciated for its cleaner lines.7
  • Critique of Recoil: The most common negative sentiment relates to the recoil impulse. As a direct blowback system, the UDP-9 transfers a significant amount of energy to the shooter’s shoulder. Users accustomed to gas-operated 5.56mm rifles or delayed-blowback systems often describe the recoil as “snappy” or “sharp”.10 While not unmanageable, it is a notable downside of the older technology.

2.4 Quality Assurance and Reliability Metrics

  • Build Quality (92/100): The machining tolerances are among the best in the industry. The anodizing is deep and consistent. The critical innovation is the Last Round Bolt Hold Open (LRBHO) mechanism. While most AR-9s struggle to reliably lock the bolt back after the last shot, Angstadt’s proprietary transfer bar linkage, housed in the lower receiver, is widely regarded as the most reliable design on the market, vastly outperforming upper-receiver-mounted solutions used by competitors like Aero Precision.11
  • Performance (88/100): Accuracy is typically excellent, with 1-inch groups at 25 yards reported with quality defensive ammunition.12 The feed ramps are optimized for hollow points (JHP), a critical requirement for a defensive firearm that many budget PCCs fail to meet.

2.5 Competitive Landscape: The Direct Blowback Sector

Closest Ranking Competitor: CMMG Banshee MkGs

While the UDP-9 dominates the direct blowback premium space, its primary market rival is the CMMG Banshee MkGs.

  • Mechanism: The Banshee utilizes a Radial Delayed Blowback (RDB) system. This mechanical advantage allows for a lighter bolt and buffer, resulting in significantly softer recoil and less gas blowback when suppressed compared to the UDP-9’s direct blowback system.
  • Price: The Banshee commands a higher price point, typically ranging from $1,600 to $1,750 13, compared to the UDP-9’s street price of ~$1,375 – $1,495.14
  • Trade-off: The UDP-9 offers superior mechanical simplicity (fewer parts to break) and a more robust extractor design, while the Banshee offers a superior shooting experience. For users prioritizing durability and simplicity, the UDP-9 wins; for those prioritizing shooting comfort and suppression, the Banshee is the superior, albeit more expensive, option.

Budget Competitor: Foxtrot Mike FM-9

For price-sensitive buyers, the Foxtrot Mike FM-9 is the primary alternative. Priced significantly lower, the FM-9 offers similar Glock compatibility and LRBHO function. However, the fit, finish, and material quality (forged vs. billet) of the Angstadt are noticeably superior, justifying the price gap for the “buy once, cry once” demographic.15

2.6 Verdict: The Duty-Grade Standard

  • Recommendation: STRONG BUY
  • Circumstances: The UDP-9 is the definitive choice for users who demand a turn-key, duty-grade PCC that shares magazines with their Glock sidearm. It is particularly recommended for home defense applications where reliability is paramount and the complexity of a delayed operating system is seen as a liability rather than an asset. It is not recommended for users solely seeking a soft-shooting range toy, where the CMMG Banshee or even the Angstadt MDP-9 would be better suited.

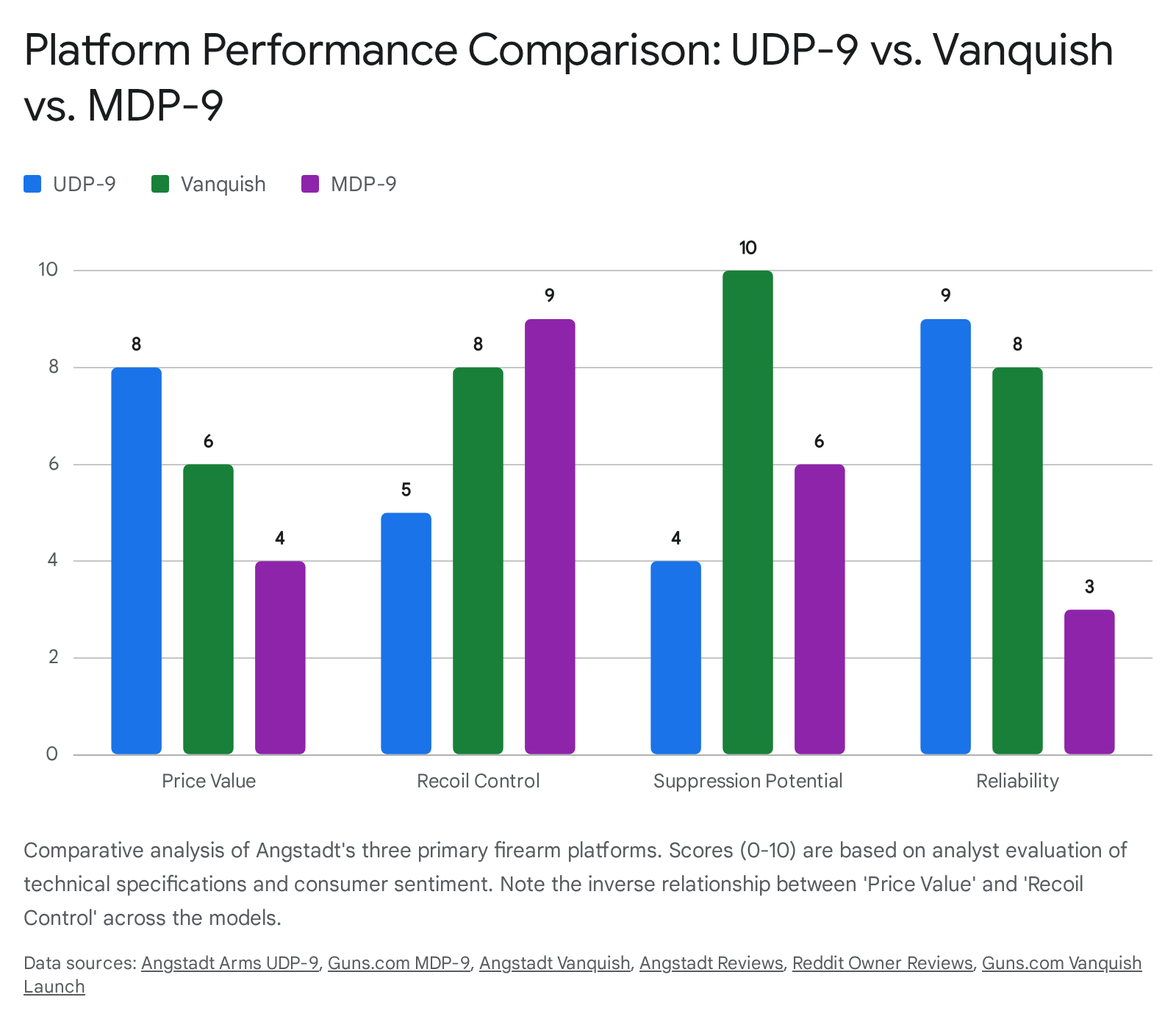

Platform performance comparison: UDP-9 vs Vanquish vs MDP-9, charting price, recoil, suppression, and reliability.

3. Innovation Catalyst: The Vanquish Integrally Suppressed System

3.1 The Physics of Baffleless Suppression

The Vanquish system represents the most significant technological divergence in Angstadt Arms’ history. Traditional suppressors work by trapping expanding gases in a series of chambers (baffles) to cool and decelerate them. While effective, this design has limitations: it traps fouling (carbon and lead), increases backpressure (gas in the shooter’s face), and generally requires subsonic ammunition to be truly quiet.

The Vanquish utilizes a baffleless design. It features a precision-ported barrel encased in an outer sleeve. When a round is fired, high-pressure gas bleeds from the barrel ports into the coaxial expansion chamber created by the sleeve before the bullet leaves the muzzle. This serves two critical functions:

  1. Velocity Reduction: By bleeding off pressure, the system can reduce the velocity of standard supersonic 115gr ammunition to subsonic speeds (below ~1,125 fps).16 This eliminates the “sonic crack”—the loud snap caused by a bullet breaking the sound barrier—without requiring the user to purchase expensive, specialized 147gr subsonic ammo.
  2. Sound Suppression: The gas is cooled and expanded in the large volume of the sleeve, exiting the muzzle at a significantly lower pressure and noise level.
  3. Zero Baffle Strikes: Because there are no baffles for the bullet to pass through, the risk of a “baffle strike” (where the bullet hits the suppressor internals, destroying the unit) is physically eliminated.17
Vanquish System velocity reduction architecture diagram comparing standard and ported barrel suppressors.

3.2 Portfolio Expansion: From AR-9 to Rimfire

Initially launched for the AR-9 platform, Angstadt expanded the Vanquish line in late 2024 to include the Vanquish 22, an integrally suppressed barrel for the omnipresent Ruger 10/22 platform.2 This was a strategic masterstroke. The.22LR market is massive, and.22LR suppression is highly desirable but notoriously dirty. Lead and carbon buildup can fuse traditional baffles together, making cleaning a nightmare. The Vanquish 22’s design allows the user to simply unscrew the outer sleeve and wipe down the barrel, solving the primary maintenance pain point of rimfire suppression.

3.3 Consumer Adoption and NFA Friction

The Vanquish system has seen high sales velocity, particularly the standalone barrel upgrades for the Ruger 10/22, which appeared as a “Top Seller” in January 2025.2

  • The “No First Round Pop” Advantage: Users report a distinct lack of “First Round Pop” (FRP)—the loud noise caused by the combustion of oxygen in a cold suppressor. The ported design eliminates the environment that allows FRP to occur, providing consistent sound suppression from the first shot.19
  • Ammo Economy: The ability to shoot cheap “bulk pack” ammo while maintaining subsonic performance is a massive economic driver. High-volume shooters calculate that the barrel pays for itself in ammo savings over 5,000-10,000 rounds.

However, the requirement for an NFA tax stamp ($200 and a waiting period) remains a barrier. While eForms have sped up approvals, the regulatory hurdle limits the product’s total addressable market compared to non-NFA items.

3.4 Operational Analysis: Maintenance and Longevity

  • Maintenance: The system scores 10/10 for maintainability. The ability to access the entire blast chamber without special tools is superior to almost any monocore or baffle stack design.
  • Tunability: The Vanquish 9mm system includes adjustable ports. Users can open or close ports to tune the velocity drop based on their specific ammunition, a level of customization rarely seen in integral suppressors.20

3.5 Competitive Benchmarking: Angstadt vs. Ruger

Closest Ranking Competitor: Ruger Silent-SR ISB

For the.22LR Vanquish, the direct competitor is the Ruger Silent-SR Integrally Suppressed Barrel.

  • Architecture: The Ruger ISB uses a stack of stainless steel baffles inside the sleeve. While effective, it creates a complex cleaning ritual involving multiple small parts that must be scraped of lead.17
  • Price: The Ruger ISB carries an MSRP of ~$679 21, while the Angstadt Vanquish barrel is priced aggressively at ~$599.22
  • Performance: Independent testing suggests the Ruger ISB may be slightly quieter in absolute decibels with dedicated subsonic ammo, but the Vanquish offers superior tone and utility with standard velocity ammo.23

3.6 Verdict: A Paradigm Shift in Sound Signature

  • Recommendation: BUY
  • Circumstances: The Vanquish is the premier choice for the high-volume shooter who wants to suppress a Ruger 10/22 or AR-9 without the headache of cleaning baffles or the expense of boutique ammo. It is an “ecosystem investment” that rewards frequent use.
  • Caution: If the user’s primary goal is the absolute quietest possible shot for a bolt-action rifle and they are willing to use expensive subsonic ammo, a traditional high-volume can (like the Dead Air Mask or Rugged Oculus) may offer slightly better decibel reduction at the cost of higher maintenance.

4. The Premium Flagship: MDP-9 Gen 2

4.1 Engineering the Modern Roller-Delayed Action

The MDP-9 (Modern Defense Pistol) is Angstadt’s attempt to dethrone the HK MP5. It utilizes a roller-delayed blowback action, a system famously used by Heckler & Koch to delay the opening of the bolt until chamber pressure has dropped to safe levels. This is achieved via rollers on the bolt head that lock into the barrel extension, requiring significant force to unlock. The result is a recoil impulse that is drastically softer than the heavy, slamming mass of a direct blowback system like the UDP-9.

Crucially, Angstadt engineered this system to fit within a monolithic upper receiver that works with standard Glock-magazine lower receivers and does not require a buffer tube. This allows the MDP-9 to feature a vertical Picatinny rail on the rear for folding stocks, making it significantly more compact than a standard AR-9.24

4.2 The Generational Shift: Addressing Gen 1 Shortcomings

The Gen 1 MDP-9 faced a rocky launch. Early adopters reported sensitivity to ammunition types (particularly steel case and flat-nosed hollow points) and reliability issues that tarnished its “premium” reputation.25 The Gen 2, released mid-2024, directly addresses these issues:

  • Reliability Updates: Revised feed geometry and roller angles have improved the cycling reliability across a wider range of ammunition pressures.
  • Feature Updates: The Gen 2 includes a detachable 3-lug muzzle device (standard for suppressors), a new integrated handstop for safety on the short barrel, and upgraded fire controls including the Radian Talon safety selector.27

4.3 Ergonomics and Human Factors Engineering

Ergonomically, the MDP-9 is superior to the MP5. It features a last-round bolt hold open (which the MP5 lacks), an AR-style magazine release, and a non-reciprocating forward charging handle that can be swapped to either side. This makes the manual of arms familiar to anyone trained on an AR-15, reducing the training scar associated with switching to the idiosyncratic MP5 platform.

4.4 The “Subgun” Market War: Domestic vs. Import

Closest Ranking Competitor: HK SP5 / JP Enterprises JP-5

The MDP-9 occupies a difficult middle ground.

  • The Heritage Rival: The HK SP5 ($3,200+) is the civilian semi-auto MP5. It is iconic, historically significant, and incredibly reliable. Buyers often choose it for its collectibility and investment value, factors the Angstadt lacks.28
  • The Performance Rival: The JP Enterprises JP-5 ($3,200+) is widely considered the best competition PCC on the market. It also uses roller-delay but is built by JP, a company legendary for tuning. The JP-5 is generally seen as smoother and more tuneable than the MDP-9.30
  • Price: At ~$2,475 27, the MDP-9 Gen 2 undercuts both competitors by nearly $800. This is its primary competitive advantage: it offers roller-delayed performance at a price point significantly below the “reference” options.

4.5 Verdict: Specialized Excellence

  • Recommendation: CONDITIONAL BUY
  • Circumstances: The MDP-9 is recommended for the user who needs the absolute smallest footprint (bag gun) with soft recoil and AR ergonomics. It is an excellent choice for executive protection details or backpack carry where the buffer tube of the JP-5 or the bulk of the SP5 is a liability.
  • Caution: For pure competition use, the JP-5 remains the gold standard. For collectors, the HK SP5 is the only choice. The MDP-9 is a tool for the pragmatic professional who values compactness and modern features over heritage.

5. The Builder’s Foundation: 0940 Receiver Set

5.1 Metallurgy and Manufacturing Precision

The 0940 Receiver Set is the “Do It Yourself” component version of the UDP-9. It allows home builders to construct a firearm with the same aesthetic and functional core as the factory rifle. Manufactured from a solid block of 7075-T6 billet aluminum, these receivers are prized for their rigidity and finish. The “slick side” upper receiver (omitting the forward assist and dust cover) is specifically designed for 9mm/40S&W usage, reducing snag points and weight.7

5.2 The “Glock-Fed” Engineering Challenge

Designing an AR lower to accept Glock magazines is notoriously difficult due to the steep feed angle of the pistol magazine. Angstadt’s solution involves a proprietary feed ramp geometry and a magazine release that positions the mag slightly higher than some competitors, improving feed reliability.

The most significant engineering achievement is the LRBHO. Most competitors (like Aero Precision) place the linkage in the upper receiver, using a thin wire to transfer the signal from the magazine follower to the bolt catch. This wire is prone to bending and failure. Angstadt places the mechanism in the lower receiver using a robust transfer bar. This design is widely validated by the builder community as superior and more durable.15

5.3 The Home Builder Demographic Analysis

The “Builder” demographic is price-sensitive but quality-conscious. While the 0940 set is expensive (~$422-$469 for the set) 14, it retains a high sentiment score because it eliminates the “troubleshooting tax.” Builders know that mixing and matching cheap receivers often leads to hours of diagnosing feed failures. The Angstadt set is seen as a “guaranteed to run” foundation.

5.4 Comparative Analysis: Billet vs. Forged Competitors

Closest Ranking Competitor: Aero Precision EPC-9

The Aero Precision EPC-9 dominates the volume market.

  • Construction: Aero uses forged aluminum, which is stronger in theory but limits the aesthetic complexity. Angstadt uses billet, allowing for the proprietary styling and integrated trigger guard.
  • Reliability: The EPC-9 has suffered from widely reported issues with its feed cone design (causing feeding issues with hollow points) and its buffer system (over-travel leading to broken bolt catches).32
  • Price: Aero is significantly cheaper (~$335 for a set).34
  • Verdict: The Angstadt 0940 wins decisively on quality and reliability of the LRBHO. Aero wins on price.

5.5 Verdict: The Premium DIY Choice

  • Recommendation: BUY
  • Circumstances: This is the only choice for a “premium” home build. If the goal is to build a duty-grade weapon at home, start here.
  • Caution: If building a budget range toy, the cost premium ($100+) over an Aero or FM Products receiver set may not be justifiable.

6. The Critical Component: 9mm Bolt Carrier Group

6.1 Material Science and Tribology

The Angstadt 9mm BCG is the engine of the blowback system. It is machined from 8620 alloy steel, case-hardened, and finished with QPQ Black Nitride.35 The Nitride finish is critical: it hardens the surface and reduces the coefficient of friction, allowing the heavy bolt to cycle smoothly against the aluminum receiver and reducing wear on the hammer face.

6.2 The Mass-Velocity Equation in Direct Blowback

In a blowback system, bolt mass is the only thing keeping the action closed. If the bolt is too light, it opens too early, bulging cases or causing “out of battery” detonations. The Angstadt BCG is weighted correctly to ensure safe dwell time. A key feature is the removable weight at the rear. This hollow bore allows the user to remove the weight and install a Law Tactical Folding Stock adapter plug, a crucial compatibility feature for modern PDW builds.35

6.3 Supply Chain and OEM Dynamics

Industry analysis suggests that this bolt, like many on the market, is likely manufactured by a major OEM (potentially Outerwild/White Label Armory).36 It shares identical geometry and features with bolts from Faxon and Kaw Valley Precision. However, Angstadt’s strict QC protocols ensure that the specific units sold under their brand meet tighter tolerances than generic “white label” parts.

6.4 Verdict: The Safe Bet

Closest Ranking Competitor: Faxon Firearms 9mm BCG

  • Comparison: Both are Nitride, 8620 steel, and ramped for standard hammers.
  • Price: Angstadt ~$153 35; Faxon ~$140-$160.
  • Recommendation: STRONG BUY when paired with an Angstadt receiver to ensure tolerance stacking is favorable. If building on a different receiver, a cheaper generic bolt from a reputable brand (Kaw Valley) will likely perform identically.

7. Strategic Conclusions and Industry Outlook

7.1 Brand Equity and Pricing Power

Angstadt Arms has successfully navigated the commoditization of the AR-9 market. By refusing to engage in the “race to the bottom” on price, they have preserved a brand equity that equates “Angstadt” with “Reliability.” This allows them to maintain healthy margins on their legacy UDP-9 products while funding the R&D for the Vanquish and MDP-9 lines.

7.2 The Impact of Regulatory Shifts

The company’s heavy investment in SBRs (Short Barreled Rifles) and Suppressors (Vanquish) exposes them to regulatory risk. However, the 2024/2025 stability regarding pistol braces and the streamlining of the eForm 4 process for suppressors has created a tailwind. The Vanquish line is perfectly positioned to capture the growing demographic of shooters who view suppressors as mandatory safety equipment rather than tactical novelties.

7.3 Final Recommendations

  • For the Consumer: The Vanquish system is the standout innovation. It offers a capability (subsonic performance with cheap ammo) that no other competitor matches without significant trade-offs. The UDP-9 remains the gold standard for a defensive PCC.
  • For the Investor/Retailer: The expansion into the Ruger 10/22 ecosystem with the Vanquish 22 is a high-growth vector. This product taps into an installed base of millions of rifles, offering a far larger Total Addressable Market (TAM) than the niche AR-9 sector. Stocking Vanquish 22 barrels is recommended as a high-turnover item for Q2-Q4 2025.

Please share the link on Facebook, Forums, with colleagues, etc. Your support is much appreciated and if you have any feedback, please email us in**@*********ps.com. If you’d like to request a report or order a reprint, please click here for the corresponding page to open in new tab.

Works cited

  1. Top Selling Products: August 2024 | Angstadt Arms, accessed December 22, 2025, https://angstadtarms.com/top-selling-products-august-2024/
  2. Top Sellers: January 2025 – Angstadt Arms, accessed December 22, 2025, https://angstadtarms.com/top-sellers-january-2025/
  3. MDP-9 Reviews, UDP-9 Reviews – Angstadt Arms, accessed December 22, 2025, https://angstadtarms.com/reviews/
  4. Reliability info? : r/AR9 – Reddit, accessed December 22, 2025, https://www.reddit.com/r/AR9/comments/qoqkuw/reliability_info/
  5. Has anyone been able to get tech support from Angstadt Arms in the past month or so? : r/guns – Reddit, accessed December 22, 2025, https://www.reddit.com/r/guns/comments/1hh33ub/has_anyone_been_able_to_get_tech_support_from/
  6. Angstadt Arms: AR9 Pistols, 9mm Rifles, Pistol Caliber Carbines, accessed December 22, 2025, https://angstadtarms.com/
  7. 0940 Receiver Set for GLOCK – Angstadt Arms, accessed December 22, 2025, https://angstadtarms.com/product/0940-receiver-set/
  8. Angstadt Arms UDP-9. Might have to pick one up! : r/ar15 – Reddit, accessed December 22, 2025, https://www.reddit.com/r/ar15/comments/3n1v7u/angstadt_arms_udp9_might_have_to_pick_one_up/
  9. Let’s look at my Angstadt Arms UDP9 – YouTube, accessed December 22, 2025, https://www.youtube.com/watch?v=DfTXfxdw97M
  10. I’m interested in an Angstadt Arms udp-9, any helpful info or opinions on this? : r/AR9 – Reddit, accessed December 22, 2025, https://www.reddit.com/r/AR9/comments/10fe820/im_interested_in_an_angstadt_arms_udp9_any/
  11. Who has an Angstadt Arms UDP-9? | Canadian Gun Nutz, accessed December 22, 2025, https://www.canadiangunnutz.com/forum/threads/who-has-an-angstadt-arms-udp-9.1610289/
  12. ANGSTADT ARMS’ UDP-9 RIFLE, accessed December 22, 2025, https://angstadtarms.com/wp-content/uploads/2016/02/American-Survival-Guide-Angstadt-Arms-UDP-9-Review.pdf
  13. Pistol, BANSHEE, FE, MkGs, 9mm, 8″ | CMMG – AR 15 and AR 10 Builds and Parts, accessed December 22, 2025, https://cmmg.com/pistol-banshee-fe-mkgs-9mm-8
  14. 9mm AR Pistol, 9mm PDW | Angstadt Arms UDP-9, accessed December 22, 2025, https://angstadtarms.com/udp-9/
  15. Thoughts and opinions on a foxtrot mike vs aero epc build. : r/AR9 – Reddit, accessed December 22, 2025, https://www.reddit.com/r/AR9/comments/qdfxb7/thoughts_and_opinions_on_a_foxtrot_mike_vs_aero/
  16. New: Angstadt Arms Vanquish Suppressed AR9 System – Guns.com, accessed December 22, 2025, https://www.guns.com/news/2023/09/19/new-angstadt-arms-vanquish-suppressed-ar9-system
  17. Vanquish 22 Review | Best Barrel for the Ruger 10/22 – Lynx Defense, accessed December 22, 2025, https://lynxdefense.com/reviews/angstadt-arms-vanquish-22/
  18. The Integrally Suppressed Vanquish AR-22 from Angstadt Arms – The Firearm Blog, accessed December 22, 2025, https://www.thefirearmblog.com/blog/the-integrally-suppressed-vanquish-ar-22-from-angstadt-arms-44823349
  19. Angstadt Arms Vanquish .22LR Integrally Suppressed 18″ Barrel – Silencer Central, accessed December 22, 2025, https://www.silencercentral.com/products/angstadt-arms-vanquish-22lr-integrally-suppressed-18-barrel
  20. VANQUISH Integrally Suppressed AR9 10.5″ : r/NFA – Reddit, accessed December 22, 2025, https://www.reddit.com/r/NFA/comments/1dh6rej/vanquish_integrally_suppressed_ar9_105/
  21. Ruger Silent-SR ISB, 22LR, 16.12″ Integrally Suppressed Barrel, Black Cerakote – 736676190010 – Blackstone Shooting Sports, accessed December 22, 2025, https://blackstoneshooting.com/ruger-silent-sr-isb-22lr-16-12-integrally-suppressed-barrel-black-cerakote/
  22. Ruger 10/22 Suppressed Barrels | Angstadt Arms Vanquish 22, accessed December 22, 2025, https://angstadtarms.com/shop/vanquish22/
  23. Integrally suppressed barrel vs traditional suppressor? : r/1022 – Reddit, accessed December 22, 2025, https://www.reddit.com/r/1022/comments/1kbjrqh/integrally_suppressed_barrel_vs_traditional/
  24. MDP-9® GEN2 Pistol – Angstadt Arms, accessed December 22, 2025, https://angstadtarms.com/product/mdp-9-pistol/
  25. Angstadt Arms MDP-9 Roller Delayed AR-9 : r/pistolcalibercarbine – Reddit, accessed December 22, 2025, https://www.reddit.com/r/pistolcalibercarbine/comments/114dvuv/angstadt_arms_mdp9_roller_delayed_ar9/
  26. [Review] Angstadt Arms MDP-9: Better Than The MP5? – Recoil Magazine, accessed December 22, 2025, https://www.recoilweb.com/angstadt-arms-mdp-9-review-174926.html
  27. Angstadt Arms Updates its Roller-Locked AR-9: Meet the MDP-9 Gen 2 – Guns.com, accessed December 22, 2025, https://www.guns.com/news/2024/05/28/angstadt-arms-updates-its-roller-locked-ar-9-meet-the-mdp-9-gen-2
  28. HK SP5 Pistols – Shop A Classic today! | Palmetto State Armory, accessed December 22, 2025, https://palmettostatearmory.com/brands/heckler-and-koch/hk-pistols/hk-sp5.html
  29. SP5 – HK USA, accessed December 22, 2025, https://hk-usa.com/product/sp5/
  30. Review: JP Enterprises JP5 Rifle | An Official Journal Of The NRA – Shooting Illustrated, accessed December 22, 2025, https://www.shootingillustrated.com/content/review-jp-enterprises-jp5-rifle/
  31. Angstadt Arms 0940 Stripped Receiver Set | 9mm & .40 S&W | LRBHO – AT3 Tactical, accessed December 22, 2025, https://www.at3tactical.com/products/angstadt-arms-0940-stripped-upper-lower-receiver-set-accepts-9mm-40-sw-glock-magazines
  32. [67] Aero Precision EPC Receivers/Angstadt parts build: live fire testing – YouTube, accessed December 22, 2025, https://www.youtube.com/watch?v=G1-bHosLgco
  33. Aero or KAK or Faxon BCG? : r/AR9 – Reddit, accessed December 22, 2025, https://www.reddit.com/r/AR9/comments/1jwejr5/aero_or_kak_or_faxon_bcg/
  34. Aero Precision – Receiver Sets For Sale – Primary Arms, accessed December 22, 2025, https://www.primaryarms.com/brand/aero-precision/custitem_cc_2/Receiver-Sets
  35. 9mm BCG, AR9 Bolt Carrier Group – Angstadt Arms, accessed December 22, 2025, https://angstadtarms.com/product/9mm-bcg/
  36. Which 9mm Bolt Should I Get? – Blowback9.com – WordPress.com, accessed December 22, 2025, https://blowback9.wordpress.com/2023/11/09/9mm-bolts/
AK & Related Rifles, AKBuilds, AR & Related Rifles and Pistols, ARBuilds, Firearms Building and Gunsmithing, Gunsmithing, POF, PTR, Zenith

Great Deals On Pistol Braces and Pistols With Braces At PSA

When the ATF reversed the ruling about braces and enabled folks to use them however they saw fit, the demand and supply of pistol braces went into orbit. I have carpal tunnel and a hereditary tremor so for me, using a brace is the only way I can wield a heavy pistol – such as one based on an AR, AK or MP5 type of action.

Examples of Braced Pistols

SB Tactical’s PDW brace is great on AR pistols
IWI Galil Ace in 7.62×51 with a SB Tactical SBA4 adjustable brace
PTR PDWR .308 pistol with a SB Tactical folding mechanism and SB Tactical SOB brace

Palmetto State Armory (PSA)

PSA has come a long way. I’ve used them as my go-to AR parts supplier for years and now they have great deals on parts, kits, receivers, and firearms. They also offer some great deals on braces – by themselves as parts, as part of a kit offering or even on firearms.

Please share the link on Facebook, Forums, with colleagues, etc. Your support is much appreciated and if you have any feedback, please email us in**@*********ps.com. If you’d like to request a report or order a reprint, please click here for the corresponding page to open in new tab.
