A previous post looked at the quality redemption arc made by Zastava to address legitimate concerns about their AK rifles and pistols in the US market. This report provides a more detailed analysis of the metallurgy, manufacturing methods, and heat treatment protocols for current-production Zastava civilian AK-pattern receivers sold in the United States market. The analysis reveals that the receivers are the product of a deliberate manufacturing philosophy centered on structural over-engineering and modern process control. Key findings indicate that all current ZPAP receivers are constructed from 1.5mm stamped steel, a significant increase in thickness over the 1.0mm AKM standard, and are paired with a forged, RPK-style bulged front trunnion. This robust architecture, a direct legacy of the Yugoslavian M70’s military requirement to launch rifle grenades, results in exceptional structural rigidity. Metallurgically, Zastava utilizes a formable, hardenable steel alloy for the receiver, which is then subjected to a comprehensive heat treatment process. Critically, the consistency and quality of these receivers are ensured by a recent modernization of Zastava’s production line, which now includes fully automated, high-precision heat treatment furnaces. This factory method ensures the entire component is treated for uniform hardness and durability. The synthesis of this robust physical design, strategic material selection, and modern process control results in a receiver that exhibits exceptional durability, consistency, and longevity.

Section 1: Receiver Architecture and Manufacturing Methodology

The foundational design of the Zastava ZPAP receiver sets it apart from many other AK variants available on the civilian market. The architecture is not based on the common Soviet AKM but rather on the more robust Yugoslavian M70, which itself borrowed design elements from the RPK light machine gun. This results in a receiver built to a higher standard of durability than is typical for a semi-automatic rifle.

1.1. A 1.5mm Thick Stamping

A defining characteristic of all current-generation Zastava ZPAP rifles imported by Zastava Arms USA is the use of a 1.5mm thick stamped steel receiver.¹ This represents a 50% increase in material thickness compared to the 1.0mm specification of the Soviet AKM and the majority of its derivatives.⁵ The manufacturing process follows the standard methodology for stamped AKs, where a flat sheet of steel is bent into its characteristic U-shape, after which critical components like the front and rear trunnions are permanently set in place with rivets.⁷ The fit, finish, and quality of the riveting on current ZPAP rifles are consistently noted as being of high quality.⁸

This design choice has several direct consequences. The most immediate is an increase in mass; a ZPAPM70 weighs approximately 7.9 to 8.4 pounds, noticeably heavier than a standard 7 to 7.5-pound AKM.³ This additional weight, however, contributes positively to recoil mitigation, making the rifle a more stable shooting platform.³

The adoption of the 1.5mm receiver is not an arbitrary upgrade but a direct legacy of the Yugoslavian military’s design requirements for the original M70 assault rifle. This doctrine required the standard infantry rifle to double as a platform for launching rifle grenades.³ The immense stress imparted by this function necessitated a more robust receiver than the standard AKM. The solution was to adopt the receiver thickness and trunnion design of the RPK light machine gun, a platform already engineered for the higher stresses of sustained fire.⁸ For the civilian ZPAP, this “over-engineered” characteristic is retained. The primary benefit is a significant increase in structural rigidity, which minimizes receiver flex during the firing cycle. This enhanced stability provides a consistent platform for the action, contributing to long-term reliability and the preservation of headspace.

1.2. The Forged, RPK-Pattern Bulged Trunnion

Complementing the thick receiver is the universal use of a forged, RPK-style “bulged” front trunnion across the ZPAP line.² The front trunnion is arguably the most critical pressure-bearing component of an AK, as it contains the locking recesses for the bolt and secures the barrel to the receiver. Zastava explicitly manufactures these trunnions via forging, a process that aligns the steel’s grain structure to provide superior strength and fatigue resistance compared to casting.²

The bulged trunnion design is visibly wider than a standard AKM trunnion, creating distinct bulges on the sides of the receiver where it is seated.⁶ This design increases the material volume and contact surface area at the rifle’s lockup point, allowing it to better withstand the high pressures of sustained fire or, in its original military context, launching grenades.¹

The 1.5mm receiver and the bulged trunnion are not independent features but a synergistic engineering system. The thicker receiver sheet metal provides the necessary structural support for the larger, heavier trunnion, ensuring that firing stresses are distributed evenly across a more robust assembly. This combination reveals a core tenet of the Zastava manufacturing philosophy: a comprehensive approach to durability. The rifle is not merely made of thicker steel; the most critical stress-bearing component has been reinforced with a forged, machine-gun-grade part. For the end-user, this translates directly to exceptional longevity. The action is structurally engineered to withstand a service life that far exceeds the demands of typical civilian use, ensuring that critical tolerances like headspace remain stable over many thousands of rounds. This was empirically demonstrated in the AK Operators Union’s 5,000-round endurance test, in which a ZPAPM70 passed a “no-go” headspace gauge check at the conclusion of the test, indicating no detrimental wear or deformation.¹¹

Section 2: Receiver Steel Alloy Specification

While Zastava Arms and its U.S. importer consistently market the receiver’s dimensions and manufacturing method, the specific steel alloy grade used is proprietary and not publicly disclosed.¹² This is a common practice in the firearms industry. However, based on the known manufacturing processes and performance requirements, it is possible to make a sound engineering deduction about the class of steel being used.

The receiver begins as a flat sheet that is cold-formed (stamped) and subsequently heat-treated.⁷ This immediately narrows the field of candidate materials. The steel must possess sufficient ductility in its annealed state to be bent into shape without fracturing, which rules out brittle high-carbon steels. Conversely, it must contain sufficient carbon and other alloying elements to be hardenable through heat treatment to the required specification for wear resistance, which rules out simple, low-carbon steels that cannot achieve the necessary hardness.¹⁴

This places the ideal material in the low-alloy steel category. Alloys such as AISI 4130 (Chromium-Molybdenum) or a similar European-standard equivalent are the industry benchmark for high-quality stamped receivers. These alloys provide an excellent combination of formability, weldability, strength, and toughness, making them perfectly suited for this application. While the exact designation remains unconfirmed, it is highly probable that Zastava employs a steel with properties analogous to the 4130/4140 family for its receivers.

Section 3: Heat Treatment Protocol and Process Control

The most robust design and the finest materials are rendered ineffective without proper heat treatment. This metallurgical process is what unlocks the steel’s potential for hardness and wear resistance. It is also historically the most common point of failure in low-quality AK manufacturing. Zastava has made significant, verifiable investments to ensure this critical step is performed to a modern, consistent standard at its factory in Serbia.

3.1. Modernization of Thermal Processing at the Zastava Factory in 2019

In a significant upgrade to its manufacturing capabilities, Zastava Arms partnered with SECO/WARWICK in May 2019 to modernize its heat treatment facilities.¹⁶ Zastava installed a new, high-temperature box furnace featuring “tighter temperature uniformity and fully automated temperature controls”. A company representative stated the goal was to replace dated equipment and improve quality through real-time process controls.

This investment is arguably the single most important factor contributing to the consistent quality of modern ZPAP receivers. Heat treatment is a science of precise time and temperature cycles; minor deviations can lead to drastically different material properties. A modern, automated furnace from a premier supplier like SECO/WARWICK eliminates the variables of older, manually controlled systems. Tighter temperature uniformity ensures the entire receiver reaches the correct austenitizing temperature, while automated controls execute quenching and tempering cycles with digital precision and repeatability. This technological capability directly addresses the historical weak point of stamped AK production and allows Zastava to produce receivers of a consistent and high quality.

3.2. Zastava’s Factory Heat Treatment vs. Aftermarket Methods

The heat treatment of a Zastava ZPAP receiver is a comprehensive, industrial process performed at the Zastava factory in Serbia.⁸ Zastava utilizes its modern, automated SECO/WARWICK furnaces to subject the entire receiver to a complete thermal processing cycle. This method ensures that the whole component is brought to a uniform temperature and then properly quenched and tempered. The result is a receiver with consistent hardness and toughness across its entire structure, meeting the required specifications for critical areas like the fire control group axis pin holes and the ejector tip.¹⁸ The widely accepted industry specification for these critical areas is between 36 and 44 on the Rockwell C scale (HRC).¹⁴

This factory-level, full-component heat treatment is fundamentally different from the “spot” or “zoned” heat treatment method. The zoned approach is a technique primarily used by home builders or small custom shops who start with an unhardened, annealed steel receiver flat. This method involves using a handheld torch to selectively heat only the critical wear points—the axis pin holes and ejector—before quenching them in brine or oil. While this localized process is an inexpensive and accessible way for a hobbyist to harden the most essential areas, it is not the method employed by Zastava for its factory-produced firearms. Zastava’s investment in advanced industrial furnaces allows for a more controlled and uniform heat treatment of the entire receiver, which is a hallmark of their modern manufacturing process.

Section 4: Conclusion

An analysis of the Zastava ZPAP receiver reveals a product defined by a clear and coherent manufacturing doctrine that blends traditional military-grade robustness with modern industrial precision.

4.1. The Zastava Manufacturing Philosophy: A Synthesis

The current manufacturing philosophy for Zastava’s U.S.-market civilian receivers is a hybrid approach that leverages two core principles:

1. Structural Over-Engineering: The retention of the proven 1.5mm receiver and forged, bulged RPK-style trunnion provides a safety margin and durability that exceeds the requirements of semi-automatic fire when properly heat treated.
2. Modern Process Control: The implementation of advanced, automated SECO/WARWICK heat treatment technology ensures that the metallurgical properties of the receivers are realized with a high degree of precision, consistency, and repeatability, overcoming a historical weakness in mass-produced AKs.

This philosophy results in a product that is not simply strong by chance, but is durable by design, by material selection, and by process control. It is a systematic effort to produce a premium-tier imported AK receiver that justifies its market position through tangible engineering and manufacturing quality.

4.2. Market Implications and Final Assessment

The Zastava ZPAP receiver, as currently manufactured by Zastava in Serbia and imported, represents one of the most robust and well-executed civilian AK platforms available on the U.S. market. The combination of its RPK-derived architecture and its modern, controlled, full-component heat treatment provides a high degree of analytical confidence in its long-term durability and operational reliability.¹⁹

The establishment of Zastava Arms USA as the exclusive importer has been a critical element in this success.²⁰ It has created a direct feedback loop with the American market, allowing the company to effectively compete against other popular imports while differentiating its product with unique Serbian design features and a demonstrable commitment to manufacturing quality.²⁰

For the technically-minded consumer or small arms analyst, the value of the ZPAP receiver lies not just in its advertised features but in the underlying manufacturing and metallurgical doctrine. The evidence points to a systematic, factory-controlled approach to building a receiver that is engineered to exceed its expected service requirements, making it a sound investment for any user who prioritizes maximum durability and long-term performance.

Image Source

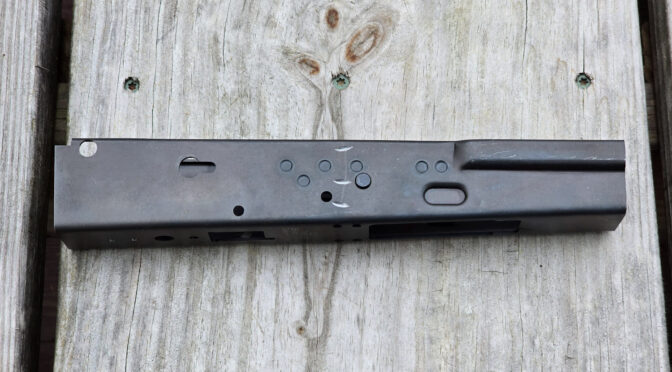

The opening image was created by the author and is of a modified semi-auto Yugoslavian-era Zastava receiver made by Childer’s. The author is using it for illustration purposes only.
