The conclusion of the Second World War left the Soviet Union as a victorious global superpower, but its military doctrine and infantry armament were at a critical crossroads. The brutal fighting on the Eastern Front had provided a wealth of hard-won experience, revealing both the strengths and weaknesses of the Red Army’s equipment. While massed infantry assaults, heavily supported by submachine guns like the PPSh-41, had proven tactically effective in close-quarters combat, the pistol-caliber weapon was severely limited in range and lethality beyond 100-200 meters.¹ At the other end of the spectrum, the venerable Mosin-Nagant bolt-action rifle, chambered in the powerful 7.62x54mm Rimmed cartridge, offered excellent range and power but was slow-firing and ill-suited for the fluid, high-volume firefights that had come to define modern infantry combat. A significant gap existed between the submachine gun and the full-power battle rifle.

This doctrinal gap was brought into sharp focus by the German introduction of the Sturmgewehr 44 (StG 44). Widely considered the world’s first true assault rifle, the StG 44 combined a detachable 30-round magazine and selective-fire capability with an intermediate cartridge, the 7.92x33mm Kurz. This weapon provided the German soldier with a controllable volume of fire far exceeding that of a bolt-action rifle, while offering significantly more range and power than a submachine gun.² For Soviet planners, the StG 44 was a powerful proof-of-concept that validated a path they were already exploring.

Indeed, the development of a Soviet intermediate cartridge was not purely a reaction to German efforts. As early as 1943, Soviet ordnance engineers N.M. Elizarov and B.V. Semin had developed the 7.62x41mm cartridge, which would soon be refined into the now-famous 7.62x39mm M43 round.⁴ This new cartridge was the foundational element upon which an entire generation of post-war Soviet weapons would be built, including the SKS carbine and, most importantly, the new automatic rifle designed by a young, wounded tank sergeant named Mikhail Timofeyevich Kalashnikov.⁴

Kalashnikov’s design philosophy, forged in the crucible of war and aligned with the overarching principles of Soviet military doctrine, was one of uncompromising pragmatism. The new rifle had to be simple enough to be manufactured, maintained, and operated by a vast army of conscripts with minimal training. It needed to be legendarily reliable, capable of functioning in the arctic cold of Siberia, the dust of Central Asia, and the mud of Eastern Europe.³ Above all, it had to be suitable for cheap and rapid mass production in the millions to equip not only the Red Army but also the armies of the newly formed Warsaw Pact.⁸

The post-war Soviet industrial base was a colossus, having produced staggering quantities of tanks, artillery, and aircraft during the conflict.¹ This industrial might, however, was heavily geared towards traditional, brute-force manufacturing techniques like the heavy forging and milling of large steel components. It was less developed in more nuanced, high-precision technologies like the advanced sheet metal stamping required for modern, lightweight firearm construction.¹⁰ While the Lend-Lease program had introduced more sophisticated Western machine tools and processes, mastering these on a mass scale would prove to be a formidable challenge.¹² This technological disparity between ambition and capability would define the early, troubled history of the Kalashnikov rifle and set the stage for the eventual development of its most refined and iconic form: the AKM.

II. The Original Vision and a Costly Setback: The AK-47 Type 1 Stamped Receiver

Mikhail Kalashnikov’s original design concept, which won the 1947 assault rifle trials, was not the heavy, milled weapon that many associate with the early “AK-47.” His vision, embodied in the prototypes (AK-46) and the initial production model, the AK-47 Type 1, was for a lightweight, modern rifle built around a receiver pressed from sheet steel.⁴ This approach was heavily influenced by the manufacturing efficiencies observed in wartime designs like the German MP 40 submachine gun and the Soviets’ own PPSh-41, both of which made extensive use of stampings to reduce cost, speed up production, and minimize weight.¹⁴ The goal from the very beginning was to create a weapon for the masses, and stamping was the key to achieving that goal.

Production was officially ordered and assigned to Plant #74, the Izhevsk Machine-Building Plant, which would later become the famed Izhmash and eventually the Kalashnikov Concern.¹⁹ Despite its long history of arms manufacture dating back to the Napoleonic era, the plant’s existing machinery and the skill set of its workforce were not immediately suited to the unique challenges of the new rifle.¹⁹

The critical point of failure in the Type 1’s production was not the stamping of the main U-shaped receiver shell itself, a process the Soviets had some experience with. The insurmountable difficulty lay in the subsequent, high-precision assembly operations—specifically, the welding of the internal bolt guide rails and the ejector spur to the thin receiver walls.⁶ These components are critical to the rifle’s function, guiding the bolt carrier’s movement and ensuring reliable ejection of spent casings. The process required extremely precise jigs to hold the parts in alignment and sophisticated welding and heat-treatment protocols to secure them without warping or weakening the thin receiver shell.

The state of Soviet sheet metal stamping and welding technology in the late 1940s was simply not mature enough to perform these delicate operations with the consistency required for mass production.¹¹ The result was a disastrously high rejection rate, with a large percentage of receivers failing quality control inspections due to warping, improper alignment of the rails, or structural failure during test firing.⁴ This was not just a minor hiccup; it was a fundamental failure of the production concept, demonstrating a critical gap between the ambition of Kalashnikov’s design and the practical capabilities of the Soviet arms industry at that moment. The original vision of a lightweight, stamped rifle had to be abandoned, forcing a major and strategically undesirable redesign that would set the program back for years.

III. The Type 2 and Type 3 AK-47s Were Milled

Faced with a production crisis that threatened to leave the Red Army without its new standard-issue rifle, Soviet engineers, with Kalashnikov’s guidance, made a pragmatic but strategically backward decision. They abandoned the troubled stamped receiver and reverted to a manufacturing process they had mastered over decades of producing weapons like the Mosin-Nagant rifle: milling the receiver from a solid block of steel.⁴ This was a costly retreat from a technological standpoint, but it was a necessary one. It leveraged the vast existing infrastructure of milling machines and the deep well of expertise in metal-cutting within the Soviet arsenal system, allowing production to accelerate almost immediately.¹⁰

This decision gave birth to the first milled-receiver Kalashnikov, the AK-47 Type 2, which entered production in 1951. Machined from a heavy steel forging, the Type 2 receiver was immensely strong and robust, a stark contrast to the failed Type 1.⁴ The milling process inherently solved the previous manufacturing problems by integrating the critical guide rails and trunnion features directly into the receiver body, eliminating the need for complex welding and alignment.²⁴ The Type 2 is easily distinguished by its slab-sided appearance, with straight, parallel lightening cuts milled into the sides to remove some excess weight, and a unique “boot” style socket for attaching the wooden buttstock.²³

Even as the Type 2 was being produced, work continued to refine and streamline the costly milling process. This led to the introduction of the AK-47 Type 3 in 1954, which would become the most common and “classic” version of the milled-receiver AK-47.⁴ The Type 3 was machined from steel bar stock rather than a forging, which simplified the initial stages of production.¹⁰ It was marginally lighter than the Type 2 and featured a more secure and simplified stock attachment method using two tangs that extended from the rear of the receiver, a design that would carry over to the later AKM.²³ The lightening cuts on the Type 3 were also reshaped, appearing as large, angled scallops that paralleled the bottom edge of the receiver, a key visual differentiator from the Type 2.²³

While the milled receiver approach successfully solved the production impasse, it came at a tremendous cost that ran directly counter to the original design philosophy. The process was incredibly labor-intensive, requiring over 120 separate machining operations to turn a block of steel into a finished receiver.²³ It was slow, wasted a significant amount of material, and was far more expensive than stamping.²³ Most critically for the soldier, it resulted in a heavy rifle. A fully loaded Type 3 AK-47 tipped the scales at over 4.3 kg (9.5 lbs), with the empty rifle itself weighing 3.47 kg—a full kilogram (2.2 lbs) heavier than the later AKM.⁶ This entire period, from 1951 to 1959, can be seen as a necessary but undesirable detour, a stopgap measure to arm the military while engineers worked tirelessly in the background to finally perfect the stamping technology that would fulfill Kalashnikov’s original vision.

Table 1: Evolution of the Soviet 7.62x39mm Rifle Receiver (1949-1959)

Receiver Type	Production Years	Manufacturing Method	Key Identifying Features	Rifle Weight (Empty)	Primary Advantage	Primary Disadvantage
Type 1	1949–1951	Stamped 1.3mm Sheet Steel	Folded sheet metal body, dimple for selector switch, separate trunnions 10	~2.9 kg (6.4 lb)	Lightweight, low theoretical cost	High rejection rates, technologically immature 10
Type 2	1951–1954	Milled from Forging	Solid steel body, straight lightening cuts, “boot” stock socket 23	~3.8 kg (8.4 lb)	Producible with existing technology, robust	Heavy, expensive, slow to manufacture 4
Type 3	1954–1959	Milled from Bar Stock	Solid steel body, angled lightening cuts, two-tang stock mount 4	3.47 kg (7.7 lb)	More efficient to mill than Type 2	Still heavy, expensive, and slow to produce 6
AKM (Type 4)	1959–Present	Stamped 1.0mm Sheet Steel	Ribbed top cover, magazine well dimples, rivets 17	3.1 kg (6.8 lb)	Lightweight, cheap, ideal for mass production	Requires advanced stamping/welding technology 4

IV. The Modernizirovanny Program: Fulfilling the Promise of Mass Production

By the late 1950s, nearly a decade of focused effort had borne fruit. Soviet industry, particularly at the Izhmash arsenal, had finally mastered the complex technologies of deep-drawing steel, precision spot-welding, and consistent heat treatment of thin-walled components.⁴ The technological gap that had forced the adoption of heavy milled receivers had been closed. This breakthrough paved the way for a comprehensive redesign of the Kalashnikov rifle, officially introduced in 1959 as the

Avtomat Kalashnikova Modernizirovanny—the Modernized Kalashnikov Automatic Rifle, or AKM.⁴

The AKM program was not merely an incremental update; it was a fundamental “reboot” of the entire production philosophy, explicitly intended to rectify the strategic compromises of the milled-receiver era and realize the weapon’s full potential.⁸ The primary mandates from the Soviet military leadership were clear and ambitious:

1. Drastic Weight Reduction: The chief complaint against the Type 3 AK-47 was its weight. The AKM program’s primary objective was to create a significantly lighter weapon to reduce the burden on the individual soldier and improve mobility. By returning to the stamped receiver concept and lightening other components, the AKM achieved a remarkable empty weight of approximately 3.1 kg (6.8 lbs), shedding nearly a full kilogram (over 2 lbs) compared to its milled predecessor.⁴
2. Simplified Manufacturing and Reduced Cost: The cornerstone of the modernization effort was the return to a stamped sheet metal receiver. This single change dramatically cut down on machine time, skilled labor requirements, material waste, and overall production cost. It transformed the rifle from a relatively complex machined object into a product that could be truly mass-produced on a scale previously unimaginable, allowing the Soviet Union to affordably arm its own vast forces and those of its many Warsaw Pact and client states.³
3. Improved Controllability and Enhanced Features: While making the rifle lighter and cheaper, the design team was also tasked with making it a more effective fighting tool. This involved introducing new features to improve its handling and controllability, particularly during full-automatic fire, which would have been exacerbated by the reduced weight.⁸

The result of this program was so successful that the AKM, not the original milled AK-47, became the definitive version of the rifle. It is the AKM and its direct derivatives that were produced in the greatest numbers and proliferated across the globe, forever cementing the Kalashnikov’s visual and functional identity.²⁵ For the vast majority of users and observers worldwide, the rifle they know colloquially as the “AK-47” is, in fact, an AKM. It represents the successful culmination of a decade of trial and error, a weapon where the original design intent was finally and fully matched by industrial capability.

V. The Heart of the AKM: A Deep Dive into the Stamped Steel Receiver

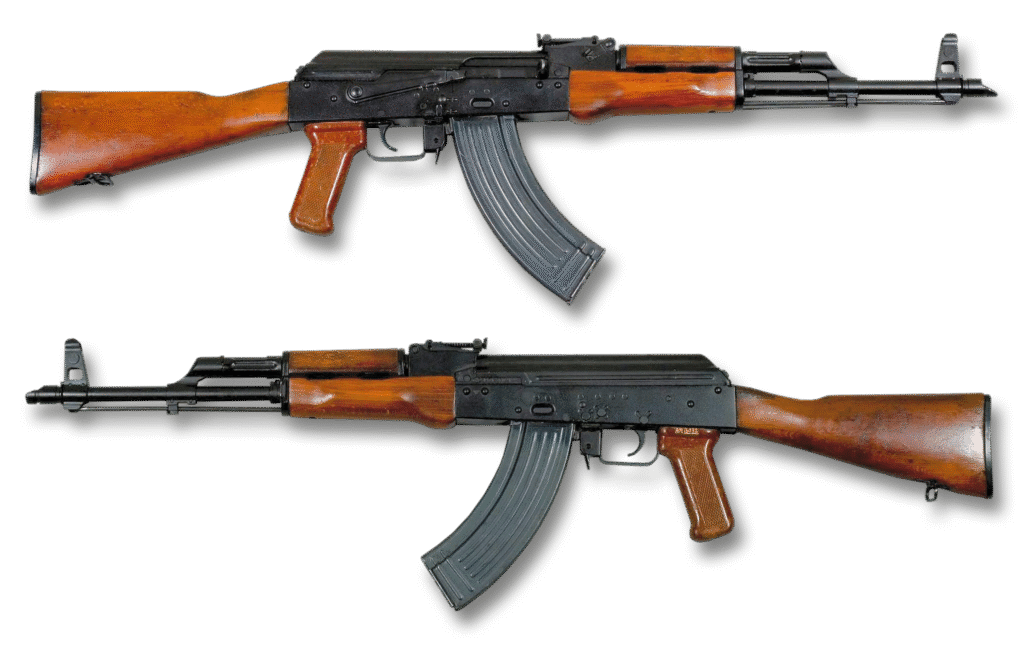

The single most defining feature of the AKM is its receiver. It stands as an excellent example of the Kalashnikov design team’s pragmatic engineering, achieving the necessary strength and durability through intelligent design and geometry rather than sheer mass. This component is the key to the rifle’s light weight and suitability for mass production.

A. From Steel Sheet to Rifle Body: The Stamping Process Perfected

The journey of an AKM receiver begins not as a solid block of steel, but as a flat blank of 1.0mm (0.04 inch) thick carbon steel sheet.²⁴ This blank is fed into a series of massive industrial stamping presses. In a few powerful, high-speed operations, a set of precisely shaped dies cuts, bends, and forms the flat sheet into the iconic U-shape of the receiver body.¹⁴ This method is orders of magnitude faster and more efficient in its use of material than the subtractive process of milling, which laboriously carves away metal from a solid billet.¹⁸

The true breakthrough that enabled the AKM was the perfection of the post-stamping processes. After being formed, the receivers undergo a carefully controlled heat-treatment cycle. This crucial step hardens the steel, giving the thin-walled structure the strength and resilience needed to withstand the rigors of combat and the stresses of firing thousands of rounds. Achieving this without causing the receiver to warp or become brittle was the primary hurdle that had doomed the Type 1 a decade earlier.¹⁸ By 1959, Soviet metallurgists and engineers had developed the quality controls and repeatable processes necessary to make it a success.

B. Engineering Strength into Simplicity: Reinforcing Ribs and Geometry

A simple, thin-walled steel box would be unacceptably flexible and prone to damage. To overcome this without adding significant weight, Soviet designers ingeniously pressed a series of strengthening features directly into the receiver and its associated parts.

• Magazine Well Dimples: On each side of the receiver, just above the magazine well, are two prominent, pressed-in dimples. These serve a critical dual function. Structurally, they act as reinforcing ribs, significantly increasing the lateral rigidity of the receiver in its widest, most open section. Functionally, they provide a precise, non-slip guide surface for the magazine, preventing the excessive side-to-side “magazine wobble” that can plague stamped receiver designs and lead to feeding issues.¹⁷
• Receiver Cover Ribs: The top dust cover of the AKM, also made from thin stamped steel, is distinguished from the smooth cover of the milled AK-47 by a series of prominent reinforcing ribs pressed into its surface. Both longitudinal and latitudinal ribs are used to give the cover the strength to resist dents, bending, and damage in the field, all while using a thinner gauge of steel than its predecessor.¹⁷
• Internal Cross-Section Support: Less visible but equally important, the receiver housing is internally reinforced with a rigid, tubular cross-section support. This piece, fastened inside via a rivet, adds significant torsional strength to the entire stamped assembly, preventing it from twisting under stress.²⁷

C. The Welded Core: Guide Rails and the Ejector

This was the Achilles’ heel of the Type 1. For the AKM, Izhmash developed robust jigs, fixtures, and spot-welding techniques that allowed for the reliable and repeatable installation of the rifle’s internal action components. The two guide rails, upon which the heavy bolt carrier assembly reciprocates, are precisely positioned and then permanently affixed to the inner walls of the receiver shell using a series of strong spot welds.²⁷ The ejector, a small but absolutely essential spur that impacts the base of the spent cartridge to kick it out of the action, is integrated as a solid part of the left-side guide rail assembly.²⁷ The ability to execute these welds with precision on a mass scale was the final technological key that unlocked the potential of the stamped receiver design.

VI. The Bedrock of the System: The Design and Manufacture of AKM Trunnions

The genius of the AKM’s stamped receiver lies not just in what it is, but in what it is not. The thin steel shell is merely a housing; it is not designed to directly contain the immense pressures generated by the firing of a cartridge. That critical task falls to two small, strong blocks of forged steel known as “trunnions”.

A. Why the Trunnions are Critical

The trunnions are the high-stress, load-bearing core of the weapon, around which the rest of the rifle is built.³² This design represents a brilliant engineering compromise, separating the rifle’s structure into a low-stress housing (the receiver) and a high-stress core (the trunnions). This allowed designers to use cheap, lightweight manufacturing for the bulk of the rifle while concentrating high-strength materials and processes only where absolutely necessary.

• The Front Trunnion: Sometimes called the “heart and soul” of the Kalashnikov, this is the single most critical component in the rifle.³⁴ It is a precisely machined block of steel that performs three non-negotiable functions. First, it provides the socket into which the barrel is pressed and secured with a transverse pin.²⁷ Second, and most importantly, it contains the helical locking recesses. The two lugs on the rotating bolt lock into these recesses upon chambering a round, creating a secure breech that safely contains the 45,000+ PSI of pressure generated during firing.³² Third, it serves as the forward anchor for the entire assembly, riveted securely into the front of the stamped receiver shell to provide a solid foundation for the barrel and action.³² For a post with more details about the front trunnion, click here.
• The Rear Trunnion: This second block of steel is riveted into the rear of the receiver. Its primary role is to provide a robust and solid mounting point for the buttstock, transferring the force of recoil into the shooter’s shoulder.¹⁴ It also serves as the rear stopping point for the reciprocating bolt carrier and the anchor for the recoil spring guide rod. For folding stock variants like the AKMS, a specially designed rear trunnion incorporates the entire folding mechanism.³⁶ For a post with more details about the rear trunnion, click here.

B. From Fire and Force: The Die-Forging and Machining Process

Given their role in containing explosive forces, trunnions for a military rifle cannot be made from simple bar stock or, most critically, from cast steel, which is brittle and prone to catastrophic failure under pressure.³² At the state arsenals of Izhmash and Molot, a robust two-step manufacturing process was employed to ensure maximum strength and durability.³⁴

1. Step 1: Die Forging: The process begins with a blank of high-grade ordnance steel. The blank is heated to a plastic state and placed into a die that has the negative impression of the trunnion’s shape. A massive mechanical or hydraulic hammer press then strikes the blank with immense force, causing the hot metal to flow and conform to the shape of the die.³⁴ This is not simply a shaping process; it fundamentally improves the metal’s properties. The forging process aligns the internal grain structure of the steel to follow the contours of the part. This creates a continuous grain flow that makes the finished component vastly stronger and more resistant to shock and fracture than a part machined from a billet (which has a unidirectional grain) or a cast part (which has a random, crystalline grain structure).³⁷
2. Step 2: Finish Machining: The rough-forged trunnion blank, with its superior internal structure, is then transferred to milling machines. Here, skilled machinists perform the final, high-precision machining operations. Critical surfaces such as the bolt locking lugs, the barrel bore, rivet holes, and guide rail contact points are machined to exact tolerances to ensure proper headspacing, smooth action cycling, and a secure fit within the receiver.³⁴

This hybrid manufacturing approach—forging for strength followed by machining for precision—ensured that the heart of the AKM was functionally indestructible, providing a safe and solid foundation for the more economically produced stamped components around it.

VII. The Deliberate Choice of Rivet Assembly

In an age of advancing manufacturing, the use of simple rivets to assemble a modern assault rifle might seem archaic. Yet, for the specific design philosophy and production environment of the AKM, rivets were not a compromise but the optimal engineering choice for joining the trunnions to the stamped receiver shell.

The alternatives were fundamentally flawed when viewed through the Soviet lens of mass production. Screws, while simple to install with minimal tooling, are unsuitable for a military firearm as the intense vibration of sustained automatic fire can cause them to loosen over time, leading to a catastrophic failure of the action.³⁸ Welding the trunnions directly to the receiver, a method used successfully on German H&K rifles, is a viable high-strength solution. However, it is a more complex, time-consuming process that requires more highly skilled labor and specialized equipment, which would slow down production rates and complicate depot-level repairs.³⁸

Rivets, by contrast, offered a perfect synthesis of the required attributes ³⁸:

1. Permanence and Strength: When properly set using a hydraulic press, rivets form a permanent, high-strength mechanical bond. They are exceptionally strong in shear, which is the primary force they must resist as they hold the trunnions in place against the recoil of the bolt carrier and the torque of the rotating bolt.³³
2. Speed and Simplicity: In a factory setting equipped with the proper jigs and presses, riveting is an incredibly fast and straightforward operation. It requires less skilled labor than precision welding and can be performed in seconds, making it ideal for an assembly line producing thousands of rifles per day.³⁸
3. Low Cost: Rivets are among the cheapest possible fasteners to manufacture, perfectly aligning with the goal of minimizing the cost of each rifle.
4. Inherent Flexibility: The softer steel used for AK rivets allows for a microscopic degree of flex within the assembled receiver during the violent cycling of the action. This elasticity allows the entire structure to absorb the torque of the bolt’s rotation and the shock of the carrier’s impact without concentrating stress at a single point, which could lead to fracture. This inherent “give” in the system is a contributing factor to the Kalashnikov’s legendary ability to function reliably even when fouled with dirt, mud, or carbon, as it prevents parts from binding rigidly.¹⁸

The selection of rivets was therefore not a sign of low technology, but rather a deliberate and intelligent choice that perfectly complemented the overall design. It was a low-tech solution that provided a high-performance result within the specific context of the AKM’s materials and manufacturing doctrine. For more details on the engineering of the rivets, click here.

VIII. Further Refinements of the AKM Platform

The transition to a stamped receiver was the centerpiece of the modernization program, but it was accompanied by a suite of other significant improvements. These were not isolated changes but part of a holistic engineering effort to create a lighter, more controllable, and more durable weapon system. Each refinement addressed a specific need, often one created by the primary change in weight and construction.

Table 2: Key Modernization Features of the AKM vs. the Type 3 AK-47

Feature	Type 3 AK-47	AKM (Type 4)	Purpose of Change
Receiver	Milled from solid steel	Stamped from 1.0mm sheet steel	Weight reduction, cost savings, ease of mass production 27
Weight (Empty)	3.47 kg (7.7 lb)	3.1 kg (6.8 lb)	Reduce soldier load, improve mobility 6
Muzzle Device	Simple threaded muzzle nut	Slant-cut compensator	Improve controllability in automatic fire by countering muzzle rise 8
Fire Control Group	Standard trigger, disconnector, auto-sear	Added hammer retarder/rate reducer	Enhance safety by preventing bolt bounce; secondary effect of rate reduction 27
Furniture	Solid wood (stock, pistol grip, handguards)	Laminated plywood, Bakelite grip (later)	Increased durability, resistance to warping, reduced cost 23
Bolt/Carrier	Heavy, smooth-sided carrier	Lightened carrier with milled cut, fluted bolt stem	Weight reduction 27
Recoil Spring	Telescoping guide rod	Dual U-shaped wire guide	Simplification of manufacturing, weight reduction 27

A. Taming the Beast: The Slant Compensator

One of the most visually distinctive features of the AKM is its iconic slant-cut muzzle device.²⁷ While often called a “muzzle brake,” it is technically a compensator, as its primary function is to counteract muzzle climb rather than to reduce the linear recoil impulse.⁴²

The lighter weight of the AKM would naturally make it more difficult to control during full-automatic fire compared to its heavier milled predecessor. The slant compensator was the elegant solution to this problem. It is designed with a single, angled face that redirects a portion of the high-pressure propellant gases escaping the muzzle. The angle is specifically calculated to vent these gases primarily upward and to the right. This creates a downward and leftward thrust at the muzzle, which directly counteracts the natural tendency of the rifle to pivot up and to the right (for a right-handed shooter) under recoil.⁸ This simple piece of steel significantly mitigates muzzle rise, allowing the soldier to keep more shots on target during an automatic burst. The compensator attaches to the standard 14x1mm left-hand threads on the muzzle and is locked in the correct orientation by a spring-loaded detent pin housed in the front sight block.⁴³ To learn more about the slant compensator, click here.

B. Ensuring Reliability: The Function of the Hammer Retarder

The introduction of the hammer retarder is one of the most critical but frequently misunderstood upgrades in the AKM. Often referred to simply as a “rate reducer,” its primary purpose is far more important: it is a safety device designed to prevent a dangerous condition known as “bolt bounce”.²⁷

The new, lighter bolt carrier and more flexible stamped receiver of the AKM had less inertia and mass than the heavy components of the milled AK-47. This created a potential problem where the bolt carrier could slam forward into battery with such force that it would “bounce” slightly back off the trunnion, unlocking the bolt for a few milliseconds before the recoil spring reseated it.⁴⁰ If the auto-sear were to release the hammer during this momentary bounce, the rifle could fire with the bolt not fully locked—an “out-of-battery detonation” that could cause a catastrophic failure, destroying the weapon and severely injuring the shooter.

The hammer retarder solves this problem with mechanical simplicity. It is a small, spring-loaded, L-shaped hook that shares an axis pin with the trigger and disconnector. During full-automatic fire, as the hammer is released by the auto-sear and begins to fall, a small protrusion on the hammer catches on the retarder’s hook. This action momentarily delays the hammer’s fall by a few critical milliseconds. This tiny delay is just long enough to ensure that the bolt carrier has fully settled into its locked position in the front trunnion, eliminating the possibility of an out-of-battery firing.⁴⁰ As a secondary benefit, this slight delay in the firing sequence reduces the overall cyclic rate of fire from around 650-700 rounds per minute to a more controllable 600 RPM, which helps conserve ammunition and reduces the dispersion of shots in a burst.⁸

C. Strength in Layers: The Adoption of Laminated Wood Furniture

The final major upgrade of the AKM was the switch from solid wood furniture to components made from laminated birch plywood.²³ This change applied to the buttstock, upper handguard, and lower handguard, and while seemingly cosmetic, it offered significant practical and logistical advantages.

Laminated wood, or plywood, is an engineered material created by gluing multiple thin layers (laminates) of wood veneer together. The key to its strength is that the grain of each successive layer is oriented at an angle to the previous one.⁴⁷ This cross-grained construction makes the final product vastly more stable and resistant to the environmental stresses that can plague solid wood. It is far less likely to warp, crack, swell, or shrink when exposed to the extreme changes in temperature and humidity a military rifle might encounter in global service, from the frozen steppes to a humid jungle.⁴⁷

From a production standpoint, lamination was also superior. It allowed the use of lower-grade wood veneers that would be unsuitable for a solid stock, and it eliminated the need for the lengthy and costly process of curing and stabilizing large blocks of solid wood.²⁷ The AKM’s laminated buttstock was also designed to be longer and straighter than the AK-47’s to improve the shooter’s cheek weld and was hollowed out to store the standard cleaning kit and to further reduce the rifle’s overall weight.²³

IX. Conclusion: The AKM as the Apex of Soviet Small Arms Philosophy

The Avtomat Kalashnikova Modernizirovanny is more than just a variant of the AK-47; it is the ultimate and most successful expression of the Soviet Union’s post-war small arms philosophy. While the milled-receiver AK-47 was a functional and robust weapon, it was a compromise born of industrial necessity—a heavy, expensive, and slow-to-produce rifle that failed to meet the original design goals of light weight and low cost. The AKM, by contrast, represents the triumphant culmination of a decade-long effort to align an advanced design concept with the realities of mass production. It is the weapon the Kalashnikov was always meant to be.

The AKM perfectly balanced the critical “iron triangle” of firearm design: unwavering reliability, low manufacturing cost, and decisive combat effectiveness. Its stamped-steel receiver, forged trunnions, and riveted assembly created a weapon that was both incredibly durable and remarkably inexpensive to produce in vast quantities. Its reduced weight, laminated furniture, and ingenious mechanical refinements like the slant compensator and hammer retarder made it a lighter and more controllable weapon for the common soldier.

This rifle was the physical embodiment of Soviet military doctrine. It was the ideal tool to equip a massive, conscript-based army that prioritized simplicity, ruggedness, and overwhelming numbers over the high-tech precision or traditional marksmanship emphasized by its Western counterparts like the M14 and M16.³ The AKM was designed to be “good enough” for any task and to function flawlessly in any environment on earth, from the arctic circle to the equator.⁴⁹

It was this combination of low cost, simplicity, and effectiveness that made the AKM the most widely produced and proliferated assault rifle in history. It became the true icon of the Kalashnikov family, defining the image of the “AK-47” for generations and arming armies, revolutionaries, and insurgents across the globe.⁷ The story of its development—from the ambitious but failed Type 1, through the pragmatic but flawed milled interregnum, to the final modernized design—is a powerful lesson in military-industrial engineering, demonstrating how a nation’s doctrine, industrial capacity, and design philosophy must converge to create a truly legendary weapon.

---
