In the final years of the Cold War, the tactical landscape of the modern battlefield was undergoing a significant, yet subtle, transformation. For nearly a century, the 9x19mm Parabellum cartridge had been the undisputed standard for pistols and submachine guns across the Western world. Its ubiquity was its greatest strength, ensuring logistical simplicity and widespread availability.¹ However, this long-standing dominance had also led to a degree of technological stagnation. The 9x19mm, a product of early 20th-century design, was becoming increasingly vulnerable to a new and pervasive threat: the proliferation of effective, lightweight soft body armor.³

Intelligence assessments indicated that potential adversaries, particularly Warsaw Pact forces, were beginning to issue body armor to their troops on a large scale.⁴ This development created a critical capabilities gap for a significant portion of NATO’s military personnel. Soldiers whose primary duties did not involve carrying a full-sized rifle—such as vehicle crews, artillerymen, pilots, logistics staff, and command personnel—were typically armed with 9mm pistols or submachine guns for personal defense.¹ Against an unarmored opponent, these weapons were adequate. Against an opponent wearing even basic Kevlar armor, they were dangerously ineffective, their rounds unable to achieve the penetration necessary to neutralize the threat.¹ This gap was not limited to rear-echelon troops; special operations forces, who frequently operated in close-quarters environments where compact weapons were essential, faced the same challenge.

Recognizing this deficiency, NATO issued a formal requirement in 1989 for a new class of firearm to be known as the Personal Defense Weapon (PDW).³ The requirement called for a system—both a weapon and a new cartridge—that was compact and light enough to be carried by non-infantry personnel without impeding their primary duties, yet powerful enough to defeat specified levels of body armor at tactically relevant ranges.⁷ This initiative was the official genesis of two of the most innovative small arms systems of the late 20th century: the FN P90 with its 5.7x28mm cartridge, and the Heckler & Koch MP7, chambered for its own revolutionary 4.6x30mm round. This report will provide a detailed analysis of the creation, evolution, and application of the Heckler & Koch 4.6x30mm cartridge, a specialized solution engineered to answer a very specific and demanding question posed by the modern battlefield.

Section 1: The Genesis of the PDW – The NATO CRISAT Trials

1.1 The Tactical Gap and the PDW Concept

The concept of a compact weapon, more powerful than a pistol but less cumbersome than a rifle, was not new. The U.S. M1 Carbine of World War II is widely regarded as the first successful implementation of the PDW concept in an operational context.⁴ It was developed to arm support troops who found the M1 Garand rifle too heavy and the M1911 pistol lacking in range and accuracy.³ The M1 Carbine, with its intermediate.30 Carbine cartridge, successfully bridged this gap, providing a light, handy, and effective defensive firearm.⁴

However, in the post-war era, the widespread adoption of intermediate-caliber assault rifles like the AK-47 and M16 largely relegated the pistol-caliber submachine gun (SMG) to specialized roles in law enforcement and counter-terrorism.⁶ For general military use, the SMG’s primary advantage—controllable automatic fire in a compact package—was increasingly overshadowed by its principal weakness: the limited range and poor barrier penetration of its pistol ammunition. The emergence of mass-issued body armor rendered this weakness a critical vulnerability. NATO’s 1989 requirement was therefore not simply a call for a better SMG, but for a “Utopian Super-SMG” system that could deliver rifle-like penetration from an SMG-sized platform.⁴

1.2 Defining the Threat: The CRISAT Standard

To provide a clear and objective benchmark for this new weapon class, NATO established a standardized test target. This target was developed through the Collaborative Research into Small Arms Technology (CRISAT) program and became the non-negotiable performance metric for any PDW candidate.¹ Later formalized under NATO STANAG 4512, the CRISAT target consisted of a 1.6mm plate of Grade 5 Titanium (UK IMI Ti 318) backed by 20 layers of Kevlar fabric.¹

This specification was not arbitrary. It was carefully engineered to replicate the level of protection afforded by the body armor that NATO intelligence expected its forces to encounter on a Warsaw Pact battlefield.⁴ The requirement was stringent: the new PDW cartridge had to reliably penetrate this target and retain sufficient energy to incapacitate the soldier behind it, with an effective range stipulated to be between 200 and 250 meters.¹

1.3 The Failure of the 9x19mm Standard

The establishment of the CRISAT standard immediately and decisively rendered the 9x19mm Parabellum obsolete for this role. The fundamental physics of the 9mm cartridge—a relatively heavy, wide, and slow-moving projectile—made it incapable of defeating the CRISAT target.¹ Its energy is distributed over a wide surface area upon impact, and it lacks the velocity and sectional density needed to punch through the tough layers of titanium and Kevlar.

The structure of the NATO trials was a clear signal that incremental improvements would not suffice. The CRISAT target was, in effect, a deliberately engineered barrier to entry, designed not merely to test performance but to disqualify the incumbent technology entirely. Its specifications were calibrated to be insurmountable for any existing pistol-caliber round, including high-pressure “+P” or “+P+” 9mm loadings.² This forced manufacturers to abandon the familiar design space of pistol cartridges and innovate from the ground up. The only path forward was to develop a completely new class of cartridge, one that embraced the principles of small-caliber, high-velocity rifle ammunition. The CRISAT requirement was the gatekeeper that ensured the PDW would be a revolutionary concept, not an evolutionary one. This intense focus on a single, narrow performance metric, however, would have long-term consequences, creating hyper-specialized cartridges whose very specialization would ultimately hinder their widespread adoption and prevent them from achieving the strategic goal of replacing the versatile and economical 9x19mm across the alliance.¹

Section 2: Heckler & Koch’s Answer – Engineering the 4.6x30mm System

2.1 A Legacy of Innovation

When NATO issued its challenge, few companies were better positioned to respond than Heckler & Koch (H&K). Founded in 1949 in the town of Oberndorf am Neckar by former Mauser engineers Edmund Heckler, Theodor Koch, and Alex Seidel, H&K built its reputation on a foundation of precision German engineering and a willingness to push the boundaries of firearms technology.¹¹ From the revolutionary roller-delayed blowback action of the G3 rifle to the pioneering use of polymers in the VP70 pistol and the ambitious, though ultimately unsuccessful, G11 caseless ammunition program, H&K had a deeply ingrained institutional culture of innovation.¹⁶ This background provided the company with the experience and engineering mindset necessary to tackle the complex requirements of the PDW program.

2.2 Design Philosophy: A Rifle in Miniature

H&K’s approach to the PDW problem was to design a scaled-down rifle cartridge, not an enhanced pistol round.⁹ This philosophy is evident in the final design of the 4.6x30mm cartridge. It features a long, slender, pointed (spitzer) projectile, a bottlenecked case to maximize propellant capacity, and a rebated rim.¹⁹ The core principle was to achieve the necessary armor penetration through extremely high velocity and high sectional density (the ratio of a projectile’s mass to its cross-sectional area). By concentrating the projectile’s kinetic energy onto a very small point, it could defeat armor that would easily stop a larger, slower pistol bullet.

The choice of a 4.6mm ( in) projectile diameter, rather than a more established small caliber like.17 HMR (mm) or.22 (mm), was a deliberate engineering decision. While H&K has not published its specific rationale, analysis suggests this diameter offered an optimal balance between the external ballistics needed for a flat trajectory, the sectional density required for penetration, and the internal dimensions necessary to accommodate a hardened steel or tungsten penetrator core while still protecting the barrel’s rifling with a copper jacket.¹⁷

2.3 Technical Specifications and Development

Introduced in 1999, the 4.6x30mm cartridge is a marvel of compact efficiency.¹⁹ Its key specifications are as follows:

• Bullet Diameter: 4.65 mm ( in)
• Case Length: 30.50 mm ( in)
• Overall Length: 38.50 mm ( in)
• Case Type: Rebated, bottleneck ¹⁹

A critical factor in the cartridge’s performance is its extremely high operating pressure. The Commission Internationale Permanente (C.I.P.) rates its maximum pressure at 400 MPa (58,015 psi).¹⁹ This is comparable to modern intermediate rifle cartridges like the 5.56x45mm NATO and is significantly higher than standard pistol cartridges. This high pressure is what allows the 4.6x30mm to achieve its impressive muzzle velocities from the MP7’s short 180 mm (7.1 in) barrel.²³

2.4 The MP7 Platform: A System-Based Approach

The Heckler & Koch MP7 is not merely a gun chambered for the 4.6x30mm; it is an integrated system engineered specifically around the cartridge’s unique properties. The most significant design feature is its operating mechanism. Unlike traditional SMGs such as H&K’s own MP5, which use a simple or delayed blowback action, the MP7 employs a gas-operated, short-stroke piston with a locked, rotating bolt.⁹ This action is a scaled-down version of the system used in H&K’s G36 and HK416 assault rifles.⁹

This choice was not arbitrary; it was a direct and necessary consequence of the 4.6x30mm’s rifle-like chamber pressures. A simple blowback system, which relies on the mass of the bolt and the force of a recoil spring to contain the cartridge during firing, would be unsafe and impractical for such a high-pressure round. It would require an impractically heavy bolt to delay the breech opening, defeating the entire purpose of a lightweight, compact PDW.²³ The adoption of a locked-breech, gas-operated system was the critical engineering link that allowed H&K to safely harness the power of its new cartridge within a weapon the size of a large pistol or small SMG.

The platform evolved over time. The initial prototype, shown in 1999, was designated simply the “PDW.” The first production model in 2001 was named the “MP7.” In 2003, the design was refined into the “MP7A1,” featuring a redesigned pistol grip, a more compact stock, and side-mounted Picatinny rails as standard. A later variant, the “MP7A2,” did away with the integrated folding vertical foregrip in favor of a bottom-mounted Picatinny rail, allowing for greater modularity and user preference in accessories.⁹

2.5 The Aborted Handgun: The UCP/P46

As part of the original PDW concept, H&K developed a companion handgun chambered in 4.6x30mm, known as the Universal Combat Pistol (UCP) or P46.¹⁹ The goal was to provide a complete system—a PDW and a pistol sharing the same ammunition—to fully replace the 9mm ecosystem for certain military roles. However, after undergoing limited trials with the German Bundeswehr, the UCP project was canceled in 2009.²⁶ H&K officially stated that the reason was that the cartridge “did not provide adequate ballistics in handgun form”.²⁶

This failure reveals a fundamental limitation of the “micro-rifle” cartridge concept. While the high velocity is achievable and highly effective in the MP7’s 7.1-inch barrel, the ballistic performance degrades significantly when fired from a much shorter pistol-length barrel. The loss of velocity would have compromised both the terminal effectiveness and, crucially, the armor-penetrating capability that was the cartridge’s entire reason for being. This inability to field a viable sidearm undermined the original, ambitious goal of a single-cartridge replacement system, complicating the logistics and weakening the overall argument for adopting the 4.6x30mm over the well-established 9mm.²

Section 3: Comparative Analysis – 4.6x30mm vs. 9x19mm Luger

A direct comparison between the 4.6x30mm and the 9x19mm highlights the radical departure in design philosophy and the stark trade-offs between the two systems.

3.1 External Ballistics and Effective Range

The most immediate difference is in their flight characteristics. A typical 4.6x30mm military load, such as the 2.0 g (31 gr) DM11, leaves the MP7’s muzzle at approximately 720 m/s (2,362 ft/s).⁹ This high velocity, combined with a streamlined spitzer bullet, results in a significantly flatter trajectory than the 9x19mm. This allows for a much longer point-blank range, simplifying aiming at various distances. The effective range of the MP7 system is cited by H&K as 200 meters.²⁷

In contrast, a standard 9x19mm 115 gr FMJ round exits a typical SMG barrel at around 400 m/s (1,300 ft/s). Its heavier, round-nosed bullet has a poor ballistic coefficient, causing it to lose velocity and energy rapidly. Its trajectory is pronouncedly curved, making hits beyond 100 meters difficult, and its practical effective range is generally considered to be under 100 meters.⁴

3.2 Penetration Capability

This is the defining metric and the primary justification for the 4.6x30mm’s existence. The standard steel-core armor-piercing (AP) 4.6x30mm rounds are designed to, and demonstrably do, defeat the NATO CRISAT target at ranges of 200 meters and beyond.⁹ Standard 9x19mm FMJ ammunition, regardless of the platform from which it is fired, is consistently and completely stopped by the same target.¹ This single, profound difference in capability is the entire foundation of the PDW program.

3.3 Terminal Ballistics and Wounding Mechanics

The way each cartridge incapacitates a target differs as fundamentally as their external ballistics.

• 9x19mm (Unarmored Targets): The 9mm relies on its wide 9mm ( in) diameter to crush and displace tissue. For defensive use, Jacketed Hollow Point (JHP) ammunition is the standard. These projectiles are designed to expand upon impacting soft tissue, creating a significantly larger permanent wound cavity and transferring energy more efficiently to stop a threat, while also mitigating the risk of over-penetration.³⁰ The effectiveness of the 9mm against unarmored targets is well-established and is the reason for its century-long service.³²
• 4.6x30mm (Armored Targets): When an AP round strikes and defeats armor, it typically does not expand or fragment. It creates a narrow, deep wound channel, similar to a small-caliber rifle FMJ projectile. In this scenario, incapacitation is primarily dependent on the projectile striking the central nervous system or other vital organs. The wound channel itself is small, and lethality is a function of “location, location,location”.²²
• 4.6x30mm (Unarmored Targets): The performance of the 4.6x30mm against unarmored targets is the system’s most debated aspect. While AP rounds can be lethal, their small diameter creates a correspondingly small permanent wound cavity, often compared to being stabbed with an ice pick, unless the projectile tumbles.³² To address this, H&K and other manufacturers developed specialized soft-target ammunition. H&K’s own literature states that the standard projectile is designed with a rearward center of gravity, which causes it to become unstable and tumble after entering soft tissue, thus creating a larger wound cavity and transferring its energy more effectively.²⁷ Additionally, various hollow-point, soft-point, and controlled-deformation rounds exist to enhance performance against unarmored threats by promoting expansion or fragmentation.³⁴ However, the fundamental physics of a very light projectile mean that even with these enhancements, the terminal effects are generally considered less decisive than those of larger-caliber expanding pistol rounds against unprotected targets.¹⁷

3.4 Operator Factors

From the user’s perspective, the 4.6x30mm system offers two distinct advantages over its 9mm counterparts.

• Recoil: The 4.6x30mm cartridge produces remarkably low felt recoil. This is a direct result of its light projectile weight (typically 2.0-2.6 g vs. 7.5-9.5 g for 9mm). The minimal recoil impulse makes the MP7 exceptionally controllable, especially during full-automatic fire, allowing the operator to place multiple rounds on target quickly and accurately.⁴
• Ammunition Load: The 4.6x30mm cartridges are significantly smaller and lighter than 9mm rounds. A loaded 4.6x30mm round weighs approximately 6.5 g, while a 9mm round is closer to 12 g. This allows an operator to carry more ammunition for the same weight. Furthermore, the slim cartridge profile allows for higher magazine capacities in a given volume. A 40-round MP7 magazine is comparable in size to a 30-round 9mm MP5 magazine, giving the operator a 33% increase in onboard firepower.⁹

Cartridge	Typical Bullet Weight	Muzzle Velocity (from SMG/PDW)	Muzzle Energy	Effective Range	CRISAT Penetration @ 200m
4.6x30mm DM11 AP	31 gr (2.0 g)	~2,362 fps (720 m/s)	~373 ft-lbs (506 J)	200 m	Yes
4.6x30mm Fiocchi FMJ	40 gr (2.6 g)	~2,000 fps (610 m/s)	~355 ft-lbs (481 J)	200 m	No (Not AP)
9x19mm FMJ	115 gr (7.5 g)	~1,300 fps (396 m/s)	~432 ft-lbs (586 J)	<100 m	No
9x19mm +P JHP	124 gr (8.0 g)	~1,250 fps (381 m/s)	~430 ft-lbs (583 J)	<100 m	No

Section 4: The Ammunition Spectrum – A Cartridge for Every Mission

To address the varied requirements of military and law enforcement users, a diverse family of 4.6x30mm ammunition has been developed. This spectrum of loadings allows the MP7 system to be tailored to specific mission profiles, balancing the need for armor penetration with concerns about terminal effectiveness and over-penetration.

4.1 Military & Law Enforcement Duty Ammunition

The primary duty loads are produced by European manufacturers like RUAG Ammotec (Switzerland) and Metallwerk Elisenhütte (MEN, Germany), often in direct collaboration with Heckler & Koch.³⁶

Armor-Piercing (AP): These are the cornerstone of the system, designed to meet the original NATO requirement.

• DM11 “Ultimate Combat” / AP SX: A 2.0 g (31 gr) copper-plated steel-core projectile. This is the standard AP round, capable of defeating the CRISAT target at over 200 meters.⁹
• DM31: A similar 2.0 g (31 gr) AP projectile produced by MEN.¹⁹

Soft Target / Law Enforcement: These rounds are optimized for use against unarmored targets, prioritizing energy transfer and minimizing the risk of rounds passing through the target and endangering bystanders.

• Action SX (DM41 DEA): A 2.0 g (31 gr) lead-free, controlled-deformation copper-alloy bullet. It is designed for rapid energy deposit in soft targets while still offering good performance against intermediate barriers like car doors and body armor.¹⁹
• Hollow Point: An older 2.0 g (31 gr) hollow point design intended to maximize energy transfer immediately upon entering the target, resulting in a shallower penetration depth.³⁵

Ball / Full Metal Jacket (FMJ):

• FMJ SX: A 2.6 g (40 gr) projectile with a lead core and a tombac-plated steel jacket. This round is intended for training and for engaging unprotected targets where maximum precision is desired.¹⁹

• Subsonic: A specialized heavy projectile, typically 4.3 g (66 gr), designed to travel below the speed of sound (~320 m/s). This eliminates the supersonic “crack” of the bullet’s flight, making it extremely quiet when used with a suppressor. Its ballistic performance is significantly reduced, but it can reportedly still penetrate the CRISAT target at a very close range of 30 meters.³⁵
• Specialty Rounds: The ammunition family is rounded out by several other types for specific applications, including Tracer rounds for fire control, Frangible rounds for training on steel targets with reduced ricochet danger, and Blank cartridges for training exercises.¹⁹

4.2 Commercial Market Offerings

With the introduction of civilian-legal, semi-automatic firearms chambered in 4.6x30mm (such as those from CMMG and TommyBuilt Tactical), several major ammunition manufacturers have begun producing commercial loads.⁹

• Fiocchi: This Italian manufacturer offers a comprehensive line for the U.S. market.

• Range Dynamics: A 40 gr FMJ load for training and target shooting.³⁸
• Defense Dynamics: A 40 gr Jacketed Soft Point (JSP) load designed for defensive applications, promoting expansion on impact.³⁸
• Hyperformance: A premium defensive load featuring a 38 gr tipped hollow point bullet, designed for maximum terminal performance.³⁸
• Hornady: The American company includes a 4.6x30mm offering in its “Hornady BLACK” line, which is optimized for performance across a variety of modern firearms.
• 38 gr V-Max: This load uses Hornady’s well-regarded polymer-tipped V-Max bullet, designed for rapid and dramatic expansion, making it suitable for personal defense or varmint hunting.⁴⁴
• Vanguard Outfitters: A smaller, specialized manufacturer that has produced unique loads for the cartridge.

• 31 gr Solid Penetrator: A non-expanding solid copper projectile designed for deep, straight-line penetration.³⁴
• 31 gr EXP: An expanding projectile designed to fragment and create multiple wound channels in ballistic gelatin.³⁴

Designation / Name	Manufacturer	Bullet Type	Bullet Weight	Muzzle Velocity (from MP7)	Intended Application
DM11 / AP SX	RUAG Ammotec	Armor-Piercing (Steel Core)	31 gr (2.0 g)	~2,362 fps (720 m/s)	Military / LE (Anti-Armor)
Action SX / DM41	RUAG Ammotec	Controlled Deformation	31 gr (2.0 g)	~2,300 fps (700 m/s)	LE (Anti-Personnel, Barrier)
FMJ SX	RUAG Ammotec	Full Metal Jacket	40 gr (2.6 g)	~2,000 fps (600 m/s)	Training / Unarmored Targets
Subsonic SX	RUAG Ammotec	Full Metal Jacket	66 gr (4.3 g)	~1,050 fps (320 m/s)	Suppressed Use
Hyperformance	Fiocchi	Tipped Hollow Point	38 gr	~2,054 fps	Personal Defense
Defense Dynamics	Fiocchi	Jacketed Soft Point	40 gr	~2,056 fps	Personal Defense / Hunting
Range Dynamics	Fiocchi	Full Metal Jacket	40 gr	~2,161 fps	Training / Target
BLACK V-Max	Hornady	Polymer Tip	38 gr	~2,100 fps	Personal Defense / Varmint

Section 5: Doctrine and Application – The Operator’s Perspective

5.1 The Niche Role: Strengths and Ideal Use Cases

Despite failing to achieve its goal of becoming the new NATO-wide standard, the MP7 and its 4.6x30mm cartridge have been successfully adopted by a host of elite military and law enforcement units around the world. Users include Germany’s KSK special forces, the British Ministry of Defence Police, and notably, the U.S. Naval Special Warfare Development Group (DEVGRU), also known as SEAL Team 6.⁹

The system’s success is not as a general-purpose replacement for the 9mm SMG, but as a highly specialized tool that excels in specific operational niches where its unique capabilities provide a decisive advantage.

• Close Protection / VIP Detail: For security teams protecting high-value individuals, the MP7 offers an unparalleled combination of concealability and firepower. It can be carried discreetly in a bag or a specialized holster, yet provides the ability to defeat armored assailants that a conventional handgun or SMG could not.²⁷
• Close Quarters Battle (CQB): In the tight confines of buildings, ships, or aircraft, the MP7’s compact size, minimal recoil, and high rate of fire make it a formidable weapon. Its armor-piercing capability is a critical asset for entry teams who may face opponents wearing body armor.²⁵
• Vehicle Crews and Pilots: The weapon’s small footprint makes it an ideal personal defense firearm for operators in the cramped interiors of vehicles, helicopters, or aircraft cockpits, where a full-sized carbine would be too cumbersome.⁵⁰

5.2 Acknowledged Limitations and Shortcomings

The specialization that makes the MP7 so effective in its niche roles also creates a series of acknowledged limitations that have prevented its broader adoption.

• Terminal Effectiveness Debate: The most significant and persistent criticism of the 4.6x30mm system revolves around the terminal performance of its AP rounds against unarmored targets. The small-diameter, non-expanding projectile creates a narrow wound channel that may not be immediately incapacitating unless it strikes a vital organ or tumbles reliably and violently.¹⁷ While specialized soft-target rounds exist, they sacrifice the weapon’s primary advantage: armor penetration.
• Logistical Burden: As a proprietary caliber, the 4.6x30mm requires a completely separate and dedicated supply chain. It is not interoperable with any other weapon system, unlike 9mm (used in pistols and SMGs) or 5.56mm (used in rifles and light machine guns). This adds significant cost and complexity for any organization that adopts it.²
• Cost: Both the MP7 weapon itself and its specialized ammunition are considerably more expensive than their ubiquitous 9mm counterparts. For large organizations, the cost of re-equipping and supplying units with the new system is a major barrier to adoption.¹

5.3 Tactical Approach for Mixed-Threat Environments

The central tactical dilemma for an operator equipped with an MP7 is how to effectively engage a mix of armored and unarmored targets when no single ammunition type is optimal for both. This is not a problem solved by a “magic bullet,” but by training and doctrine. Elite units that employ the MP7 have developed several approaches to address this technological limitation.

• Approach 1: Mixed Magazine Loadout: A theoretical approach involves carrying magazines with different loadouts. For example, the operator’s primary magazine might be loaded with AP rounds (e.g., DM11) to address the most dangerous potential threat first. Subsequent magazines could be loaded with soft-target ammunition (e.g., Action SX). This allows a single operator to adapt their capability based on the evolving tactical situation, but it requires exceptional training and discipline to perform a “tactical” magazine change under the stress of combat to select the appropriate ammunition.
• Approach 2: Role-Specialized Loadouts: Within a small team, ammunition loads can be specialized by role. The point man or initial entry operator might carry exclusively AP rounds, while other team members carry soft-target ammunition. This relies on clear communication and standard operating procedures to ensure the right capability is brought to bear on the right target.
• Approach 3: The Sidearm as a Solution: This is arguably the most practical and widely practiced real-world solution. The operator carries the MP7 loaded with its primary AP ammunition, fulfilling the weapon’s intended purpose of defeating armor. When faced with an unarmored threat, or in situations where over-penetration is a primary concern (e.g., with non-combatants nearby), the operator transitions to their sidearm. This sidearm is typically a conventional pistol chambered in a caliber like 9mm or.45 ACP, loaded with high-performance JHP ammunition. This doctrine leverages the specialized strengths of both weapon systems, using the MP7 as a “scalpel” for hard targets and the pistol as a “hammer” for soft targets.
• Approach 4: Team-Level Weapon Mixing: The most sophisticated solution is seen in units like DEVGRU, where operators on a single mission may carry a mix of primary weapons. Some operators will carry the MP7 for its advantages in extreme CQB, while others will carry short-barreled HK416 rifles chambered in 5.56x45mm.²⁵ The 5.56mm round offers superior terminal ballistics against all target types and greater effective range, at the cost of being larger, heavier, and producing more recoil and muzzle blast. This team-level “buddy system” provides a comprehensive solution to the mixed-threat problem, ensuring the unit as a whole has the optimal tool for any engagement.

The adoption of the MP7 by these elite units, who also have access to a wide array of other weapon systems, demonstrates that they view the PDW not as a universal replacement for other firearms, but as a specialized tool within a broader tactical toolbox. Its value is not in what it replaces, but in its ability to solve a specific problem—defeating body armor in a highly compact platform—that other tools cannot.

Section 6: The Broader PDW Landscape and Its Evolution

6.1 The Primary Rival: FN’s 5.7x28mm System

The 4.6x30mm did not emerge in a vacuum. Its direct competitor in the NATO trials was Fabrique Nationale’s 5.7x28mm system, consisting of the P90 PDW and the Five-seveN pistol.¹

• Design Differences: The FN P90 is a radical bullpup design, with a unique 50-round translucent magazine that sits horizontally on top of the weapon.¹ This contrasts with the MP7’s more conventional layout, which resembles an oversized machine pistol with its magazine-in-grip design. The 5.7x28mm cartridge fires a.224-caliber projectile, making it dimensionally distinct from the 4.6mm’s.183-caliber bullet.¹⁷
• Performance in Trials: During NATO’s extensive testing between 2000 and 2003, both systems successfully met the CRISAT penetration requirement. However, the final NATO report concluded that the 5.7x28mm was “overall the better cartridge”.⁷ The 4.6x30mm did show slightly better performance against hard targets like ballistic helmets at very close ranges (under 25 meters), but the 5.7mm was judged to have superior overall performance.²² The German delegation rejected this recommendation, leading to a political impasse that halted the standardization process. Ultimately, NATO did not select a single PDW cartridge, and both the 5.7x28mm and 4.6x30mm were later standardized independently as STANAG 4509 and STANAG 4820, respectively.¹⁹
• Platform Ecosystem: A crucial advantage for the FN system was its successful fielding of both a PDW and a companion pistol. The FN Five-seveN gave the 5.7x28mm a complete system ecosystem that H&K failed to achieve after the cancellation of its UCP pistol, making the FN offering a more comprehensive solution to the original NATO requirement.¹

6.2 The Modern Successor: The Rise of the Micro-Carbine

In the years since the NATO PDW trials, the tactical role envisioned for weapons like the MP7 has been increasingly filled by a new generation of ultra-compact, short-barreled rifles (SBRs) or large-format pistols chambered in established intermediate rifle cartridges.¹³ Platforms like the SIG Sauer MCX Rattler and the Q Honey Badger, often chambered in 5.56x45mm or.300 AAC Blackout, represent an evolution of the PDW concept.¹²

The development of the.300 Blackout cartridge, in particular, has been a game-changer. It was specifically designed to offer excellent performance from very short barrels, and it provides potent terminal ballistics in both supersonic and subsonic loadings.⁵⁶ These micro-carbines offer significantly better terminal performance against all target types compared to the proprietary PDW calibers. While they are slightly larger, heavier, and produce more recoil than an MP7, their advantages in logistical commonality (using standard AR-15 magazines and components) and stopping power have made them an attractive option for many special operations and law enforcement units. This trend suggests that for many modern users, the marginal benefits in size and weight offered by the proprietary PDW cartridges are outweighed by the superior terminal ballistics and logistical simplicity of a micro-carbine chambered in a standard rifle caliber.

Conclusion: A Niche Caliber of Enduring Relevance

The Heckler & Koch 4.6x30mm cartridge stands as a testament to focused, brilliant engineering. It was conceived as a direct and uncompromising answer to a specific and challenging tactical problem: the inability of standard pistol-caliber weapons to defeat modern body armor. In this primary objective, it was an unqualified success, meeting and exceeding the demanding NATO CRISAT penetration requirements where its 9mm predecessor had categorically failed. The MP7 weapon system, built around this high-pressure, high-velocity round, represents a benchmark in compact, controllable, armor-piercing firepower.

However, the very hyper-specialization that made the cartridge so effective in its niche role ultimately prevented it from achieving the ambitious strategic goal of becoming the new NATO standard. The unresolved debate over its terminal effectiveness against unarmored targets, coupled with the significant logistical complexity and high cost of adopting a proprietary caliber, meant that it could never realistically supplant the versatile, economical, and deeply entrenched 9x19mm ecosystem.

The legacy of the 4.6x30mm is therefore not one of failure, but of finding its true place. It is not a general-issue round, but a mission-specific tool of enduring relevance. In the hands of the world’s most elite military and law enforcement units, who can afford its cost and manage its logistics, the MP7 system provides a unique capability that no other weapon of its size can match. It remains a potent and respected system, a definitive example of how advanced engineering can create a perfect solution for a narrow but critical set of battlefield requirements.

Images Used

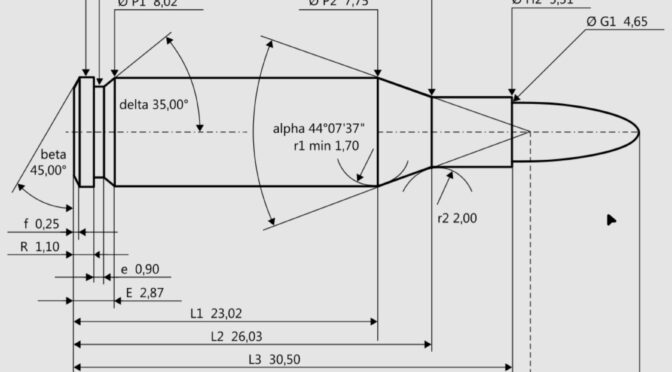

The main blog image is a drawing of the 4.6x30mm cartrdige in SVG format obtained from Wikimedia. The original image was by Francis Flinch and vectorized by ReneeWrites.

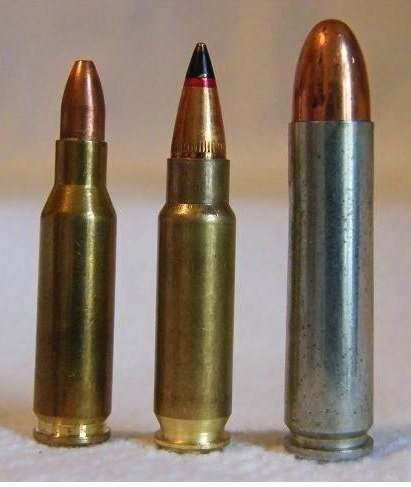

The comparison image of the 4.6x30mm, 5.7x28mm, and .30 M1 Carbine cartridges was created by Dean Grua and obtained from Wikimedia on October 6, 2025.

---
