STRATEGIC PRODUCT EVALUATION: SMITH & WESSON BODYGUARD 2.0

The fiscal years 2024 and 2025 have marked a decisive pivot in the micro-compact handgun sector, characterized by the “High-Capacity Micro.380” phenomenon. This report provides an exhaustive analysis of the Smith & Wesson (S&W) Bodyguard 2.0, a platform that represents a total architectural departure from its predecessor, the M&P Bodyguard 380. By transitioning from a Double-Action Only (DAO) hammer-fired mechanism to a pre-tensioned striker-fired system, and by leveraging a novel “stack-and-a-half” magazine geometry, Smith & Wesson has effectively disrupted a market segment previously dominated by the Ruger LCP Max and Glock 42.

Our analysis indicates that the Bodyguard 2.0 is not merely an iterative update but a strategic re-engineering effort designed to capture the growing demographic of concealed carriers who demand “shootability” alongside deep concealment. The platform delivers 10+1 or 12+1 capacity in a chassis nearly identical in volume to legacy 6-round pistols 1, effectively rendering single-stack competitors obsolete in terms of volumetric efficiency.

However, the rollout has not been without significant engineering and quality assurance challenges. The adoption of a complex “split feed ramp” geometry—necessitated by the extreme vertical compactness of the design—has introduced a sensitivity to flat-nose ammunition that has frustrated early adopters.3 Furthermore, quality control escapes regarding front sight dovetail tolerances and guide rod assembly configurations suggest a rush to market or a variance in initial production tooling.5 Despite these teething issues, the platform’s terminal ballistic performance with premium defensive loads like Federal Hydra Shok Deep demonstrates that it meets FBI penetration protocols, a critical benchmark for the.380 ACP cartridge.7

This report concludes that the Bodyguard 2.0 is poised to become the segment leader, provided S&W stabilizes its manufacturing consistency. It offers a superior ergonomic and trigger experience compared to the LCP Max and significantly greater capacity than the Glock 42, positioning it as the current apex of the micro.380 class.9

1. Market Context: The Evolution of the Pocket Pistol

To accurately assess the Bodyguard 2.0’s significance, one must analyze the trajectory of the subcompact market over the last two decades. The “pocket pistol” or “mouse gun” category was historically defined by compromise. From the Kel-Tec P3AT to the original Ruger LCP and S&W Bodyguard 380, these firearms prioritized diminutive dimensions above all else. The prevailing design philosophy was that these weapons were for “get off me” distances, necessitating neither good sights nor a manageable trigger.

1.1 The Legacy of Compromise

The first generation of polymer.380s, typified by the original S&W Bodyguard 380 launched in 2010, utilized Double-Action Only (DAO) hammer-fired mechanisms.2 This engineering choice was driven by safety concerns; in the absence of internal striker safeties or manual levers on such small frames, a long, heavy trigger pull (often exceeding 8-10 lbs) acted as the primary safety barrier. While effective for safety, this severely degraded practical accuracy, making the firearms difficult to master for the novice shooters they were often marketed towards.

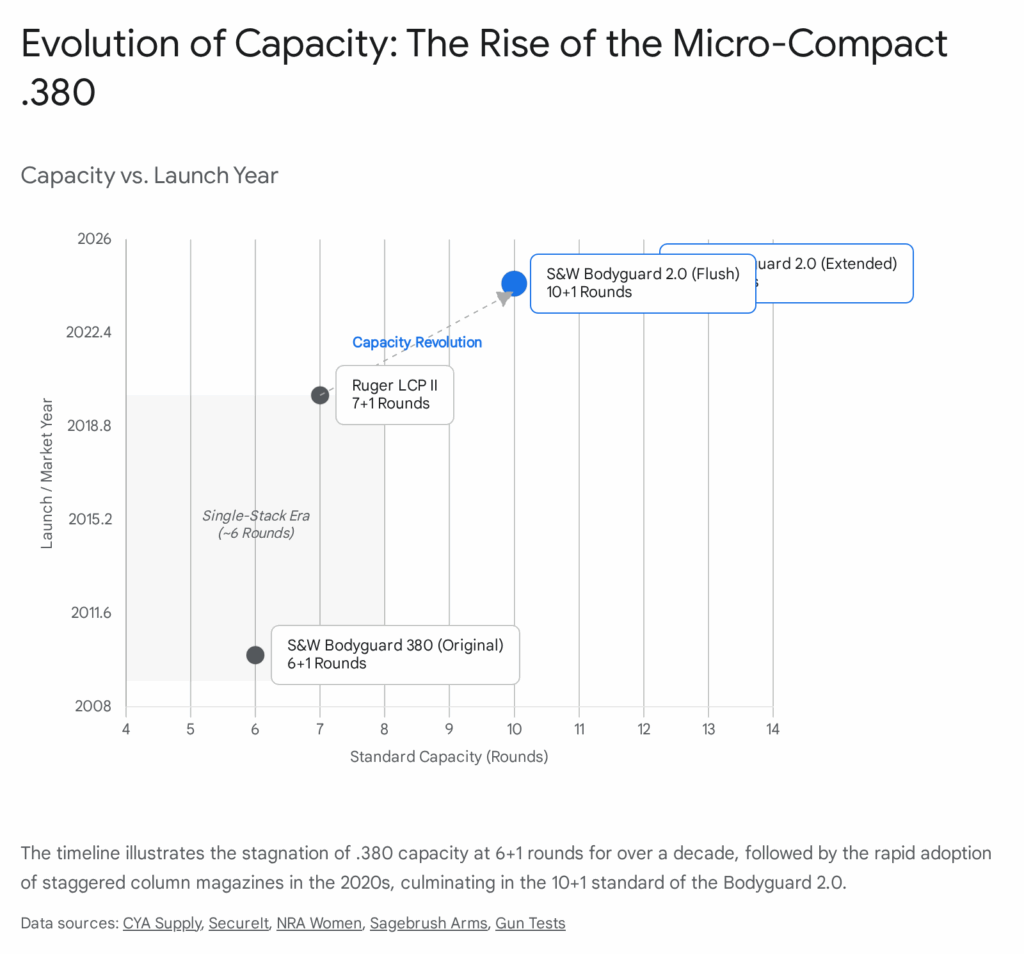

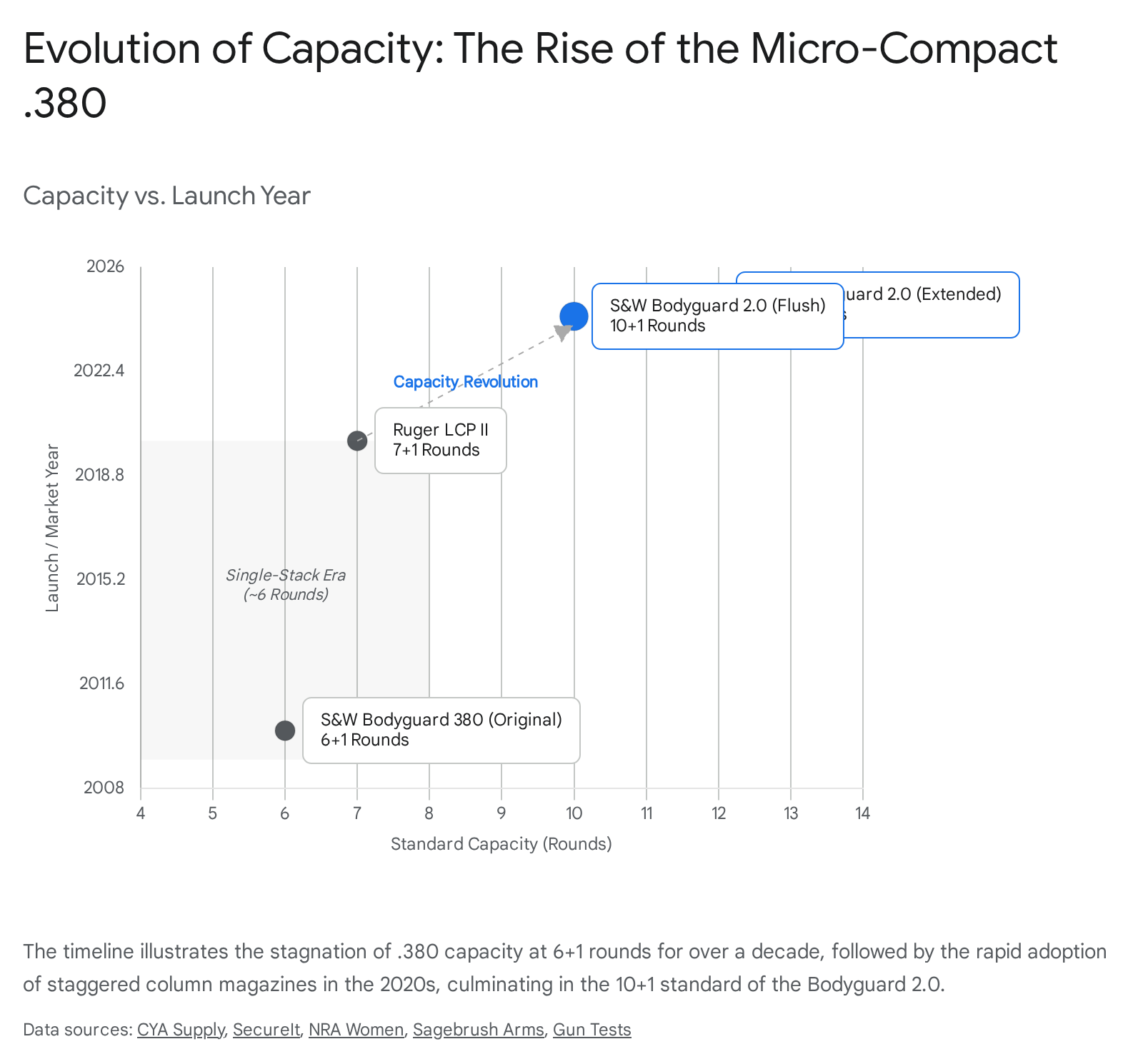

1.2 The High-Capacity Disruption

The market paradigm shifted with the introduction of the Sig Sauer P365 in 2018, which debuted the tapered double-stack (“stack-and-a-half”) magazine. This innovation proved that capacity could be increased without widening the grip proportional to a traditional double stack. Ruger was the first to apply this logic to the.380 ACP with the LCP Max in 2021.12 The LCP Max proved that consumers wanted capacity, but it retained the internal hammer and relatively snappy recoil impulse of its predecessors.

The Smith & Wesson Bodyguard 2.0 enters this matured landscape not as a pioneer of the form factor, but as a refiner of the concept. By delaying their entry until 2024, S&W engineers were able to benchmark against the LCP Max’s shortcomings (trigger quality and rust-prone finish) and the Glock 42’s inefficiency (low capacity), aiming to synthesize the best attributes of both into a single chassis.9

2. Technical Engineering Analysis

The Bodyguard 2.0 is a polymer-framed, recoil-operated, striker-fired semi-automatic pistol chambered in.380 Auto. The shift from the original’s locked-breech DAO hammer system to a striker-fired locked breech represents a fundamental alteration in the weapon’s operation and user interface.

2.1 Chassis and Frame Geometry

The frame is constructed from glass-filled nylon polymer, utilizing the texture and ergonomic geometry of the M&P 2.0 series.

  • Volumetric Efficiency: The pistol measures 5.5 inches in length, 4.0 inches in height, and notably, only 0.88 inches in width.11 Despite these dimensions, it accommodates a 10-round flush-fit magazine or a 12-round extended magazine. This is achieved through extreme thinning of the polymer walls in the grip area and the use of a metal chassis insert that provides structural rigidity without bulk.
  • Grip Angle and Bore Axis: The grip angle is set at 18 degrees, mimicking the 1911 and M&P lineage, which is generally preferred by American shooters over the steeper rake of Glock pistols.2 The deep beavertail cut allows for a remarkably high grip purchase, lowering the bore axis relative to the shooter’s hand. This mechanical leverage is the primary factor in the pistol’s perceived “soft shooting” nature, as it directs recoil linear to the arm rather than creating a rotational moment (muzzle flip).15

2.2 The Striker-Fired Mechanism

The transition to a striker-fired system is the most consequential engineering change.

  • Trigger Characteristics: The original Bodyguard 380 was notorious for its heavy, stacking, double-action pull that could exceed 9 pounds. The 2.0 utilizes a partially pre-cocked striker system similar to the M&P Shield Plus. This results in a trigger pull weight of approximately 4 lbs 4 oz 16 with a crisp break and a short, tactile reset. The trigger shoe itself is flat-faced, a design trend that promotes consistent finger placement and reduces the perception of pull weight by increasing leverage.14
  • Internal Safety Architecture: The system incorporates a striker safety block (plunger) that physically obstructs the striker channel until the trigger bar is fully depressed. Additionally, the trigger shoe features a central blade safety to prevent inertial discharge if the firearm is dropped.18 The sear design requires the trigger bar to align specific cutouts before the striker can be released, creating a redundant fail-safe against mechanical failure.18

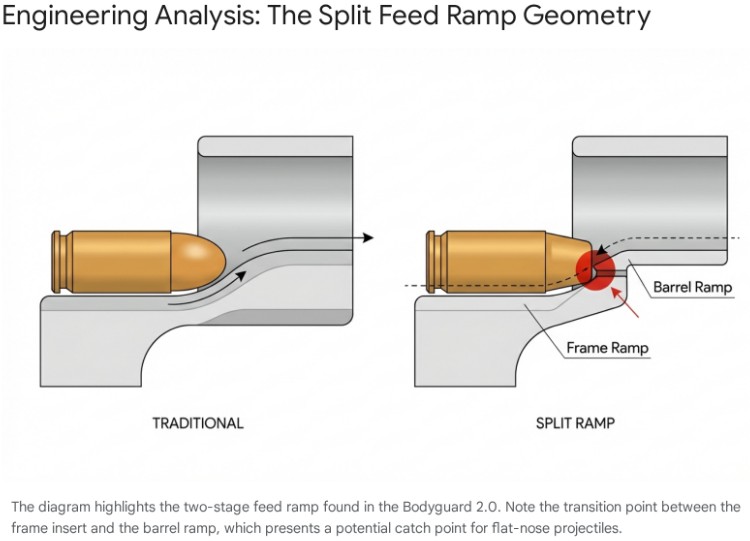

2.3 The “Split Feed Ramp” Design

One of the most discussed and controversial engineering features of the Bodyguard 2.0 is its feed ramp architecture. In traditional pistol design, the feed ramp is a continuous angled surface, either integral to the barrel or the frame. The Bodyguard 2.0 employs a hybrid approach.

  • Geometry: The feed ramp is segmented. The initial stage of the ramp is machined into the locking block insert of the frame, while the second stage is part of the barrel itself.3
  • Engineering Rationale: This design is necessitated by the extreme compactness of the action. To maintain a locked-breech mechanism (tilting barrel) in such a short slide, the barrel requires a steep unlocking angle. The split ramp allows the magazine to sit higher and the cartridge to begin its feeding path earlier in the cycle, saving vertical space.
  • Operational Consequence: While ingenious for size reduction, this design creates a discontinuity or “seam” between the frame ramp and barrel ramp. Round-nose FMJ projectiles bridge this gap smoothly. However, flat-nose (truncated cone) projectiles or wide-mouth hollow points with sharp ogive transitions can catch on this seam, leading to “nose-down” failures to feed.4 This is a hardware-level constraint that users must address through ammunition selection.

2.4 Recoil System and Guide Rod

The recoil assembly utilizes a captured single-spring design on a polymer/steel hybrid guide rod.20

  • Design Issues: There has been user confusion and reported failures regarding the guide rod assembly. In early production units, users reported springs bypassing the retention cap or the rod appearing bent.6 Analysis suggests this is often a reassembly error; the guide rod head has “flats” that must be oriented vertically to seat correctly against the barrel lug.22 Failure to orient these flats results in binding and potential damage to the spring.
  • Aftermarket Response: The market has responded with stainless steel guide rods and stronger springs (e.g., Galloway Precision) to mitigate the perceived fragility of the OEM part.23

3. Ballistic Performance and Terminal Efficacy

The.380 ACP cartridge is often viewed with skepticism regarding its ability to penetrate sufficiently when fired from short barrels. The Bodyguard 2.0 features a 2.75-inch barrel, which is significantly shorter than the 3.75-inch test barrels often used for factory velocity ratings. This reduction in barrel length leads to velocity loss, which can compromise the expansion threshold of hollow point projectiles.

3.1 Chronograph Velocity Analysis

Independent testing provides a clear picture of the velocity penalties incurred by the short barrel.

Ammunition TypeBullet WeightPublished Velocity (Test Bbl)Bodyguard 2.0 Velocity (2.75″)Energy (ft-lbs)Source
Hornady Critical Defense90 gr~1000 fps~910 fps16525
Sig Sauer V-Crown90 gr~980 fps881 fps15526
Federal Hydra Shok Deep99 gr~975 fpsSubsonic (est. <900)N/A8
Standard Ball (FMJ)95 gr~950 fps~888 fps15826

Analysis: The Bodyguard 2.0 typically loses 50-90 fps compared to standard test barrels. This loss is critical because many.380 hollow points require at least 900-950 fps to initiate reliable expansion.

3.2 Terminal Ballistics: The Penetration vs. Expansion Trade-off

Gelatin testing reveals that the Bodyguard 2.0 requires careful ammunition selection to meet FBI standards (12-18 inches of penetration).

  • Federal Hydra Shok Deep (99gr): This load is the standout performer for this platform. Despite the low velocity, its robust construction allows it to penetrate to 14 inches in calibrated 10% ordnance gel while expanding to 0.51-0.54 inches.7 It achieves this by limiting expansion diameter to prevent the “parachute effect” that stops lighter.380 bullets shallowly.
  • Hornady Critical Defense (90gr FTX): This load offers consistent expansion due to its polymer tip but often under-penetrates in short barrels, reaching only 9.5 to 10 inches.25 While the temporary cavity is impressive, the lack of depth may fail to reach vital organs in oblique shots or through intermediate barriers (arms).
  • Flat-Nose/Hard Cast: While offering deep penetration, these loads are discouraged due to the feed ramp geometry issues previously discussed.3

Conclusion on Ballistics: For the Bodyguard 2.0, penetration must be prioritized over massive expansion. The Federal Hydra Shok Deep is the optimal duty load, effectively converting the micro-pistol into a viable defensive tool.

4. Manufacturing Quality and Lifecycle Analysis

The launch of the Bodyguard 2.0 has been a case study in the risks of rapid product scaling. While the design is sound, execution in the initial manufacturing lots (first 6 months of production) has shown notable variances.

4.1 The “Front Sight Drift” Phenomenon

A statistically significant number of early users reported issues with the front sight.

  • Defect: The dovetail cut on the slide or the sight base itself was machined out of tolerance, resulting in a loose fit. Sights would drift to the left under recoil or fall off entirely.5
  • Impact: This led to widespread reports of the gun shooting “low and left.” While often a shooter error, in this case, it was frequently a mechanical defect confirmed by calipers.28
  • Resolution: Smith & Wesson has addressed this through warranty claims, often replacing the entire slide or guide rod assembly during the service trip, suggesting a silent revision to the manufacturing process.29

4.2 Rolling Changes and Revisions

There is evidence of “rolling changes” (unannounced updates) to the platform.

  • Barrel Peening: Users noted peening on the barrel hood and locking surfaces after low round counts. While S&W states this is normal wear-in for the Armornite finish, subsequent batches appear to show different wear patterns, implying potential hardening or coating adjustments.31
  • Guide Rod: The replacement of guide rods during sight-repair warranty trips indicates that S&W may have quietly updated the spring rate or rod material to improve reliability and assembly ease.30

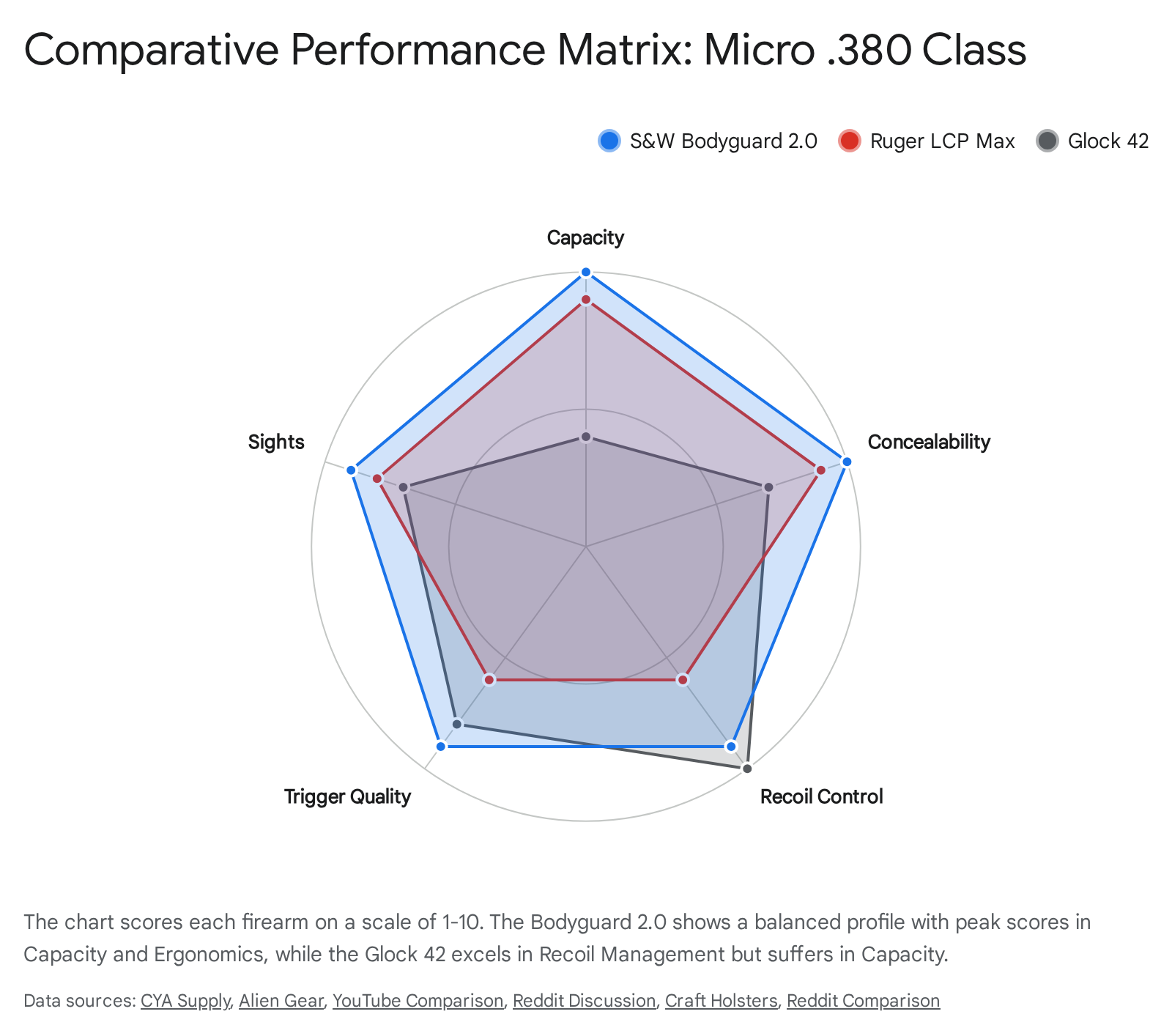

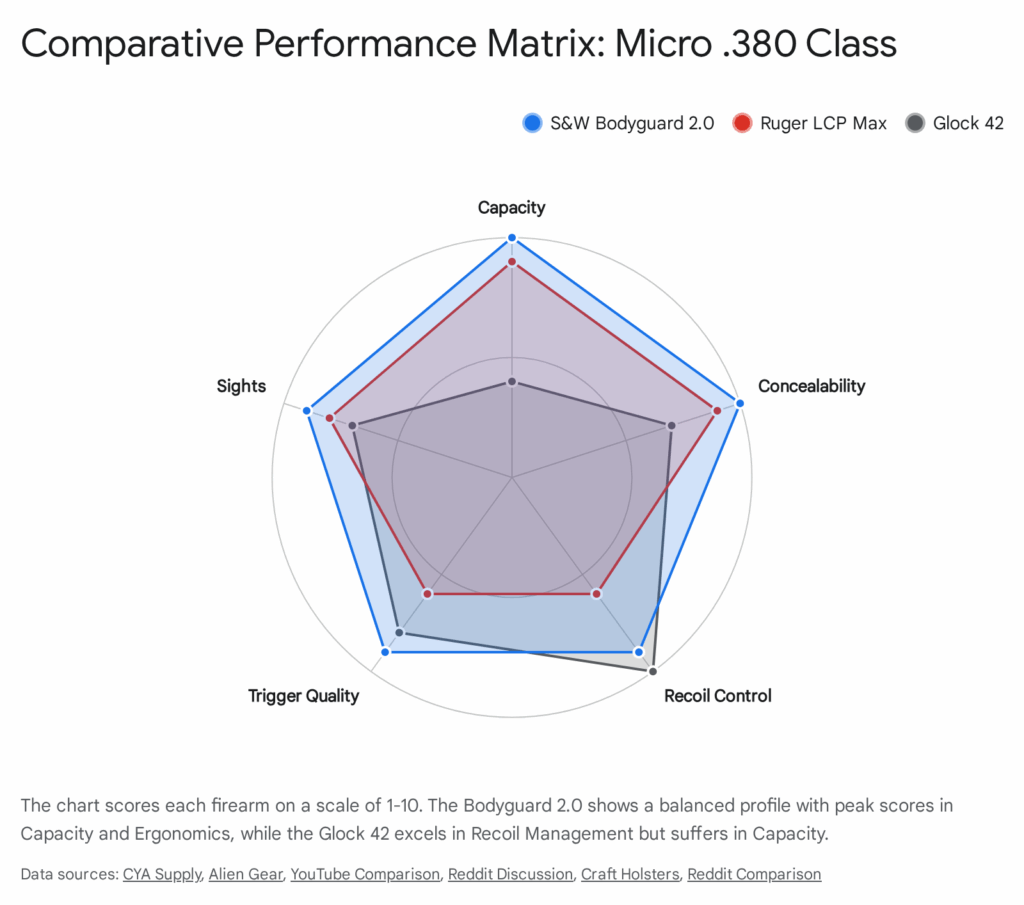

5. Competitive Landscape Analysis

The Bodyguard 2.0 does not exist in a vacuum. Its success is defined by how it compares to the established titans of the segment: the Ruger LCP Max and the Glock 42.

5.1 Bodyguard 2.0 vs. Ruger LCP Max

The LCP Max was the pioneer of the high-capacity.380.

  • Ergonomics: The Bodyguard 2.0 is widely considered superior. The LCP Max is smaller and lighter, but its grip is blockier, and its recoil impulse is described as “snappy” and “sharp”.15 The Bodyguard’s 18-degree grip angle and M&P texture provide a secure lock that mitigates perceived recoil.
  • Trigger: The LCP Max uses an internal hammer with a distinct “wall” and a longer break. The Bodyguard’s striker trigger is lighter and crisper, conducive to better accuracy at speed.14
  • Finish: The LCP Max has a reputation for rust on the slide and barrel (black oxide finish). The Bodyguard utilizes S&W’s Armornite (ferritic nitrocarburizing), which offers superior corrosion resistance.13

5.2 Bodyguard 2.0 vs. Glock 42

The Glock 42 is the “shootability” king but suffers from low capacity.

  • Capacity: This is the decisive factor. The Bodyguard holds 10 or 12 rounds in a package smaller than the Glock 42, which holds only 6.1
  • Shootability: The Glock 42, being larger and locked-breech, is extremely soft shooting. However, reports indicate the Bodyguard 2.0 is surprisingly close in recoil management despite being lighter, likely due to the superior high-grip undercut.9
  • Market Position: The Bodyguard 2.0 effectively renders the G42 obsolete for the general concealed carry market, relegating the G42 to niche status for recoil-sensitive shooters or those in ban states restricted to low capacity.

6. Customer Sentiment and User Experience

Aggregated sentiment from discussion platforms (Reddit r/CCW, r/SmithAndWesson) and YouTube reviews paints a picture of a product that is beloved for its design but scrutinized for its initial quality.

  • The “Beta Tester” Anxiety: A pervasive theme in online discourse is the hesitation to buy early production models. The specific issues with sights and guide rods have cemented a narrative that the “first batch” is risky.5 However, those with functioning units describe the gun as a “game changer” that finally solves the pocket pistol dilemma.32
  • Ergonomic Praise: Users consistently highlight the “High Horn” beavertail and grip texture. The ability to get a full firing grip (especially with the 12-round magazine) on such a small gun is cited as the primary reason for choosing it over competitors.33
  • Training Adjustment: Users transitioning from larger pistols note the learning curve associated with the short sight radius. While the gun is mechanically accurate, it requires disciplined trigger control, as even minor inputs translate to large deviations on target.19

7. Strategic Conclusions and Outlook

The Smith & Wesson Bodyguard 2.0 represents a successful synthesis of market demands: high capacity, deep concealment, and striker-fired shootability. It is a technically superior product to the LCP Max in terms of ergonomics and finish, and it vastly outperforms the Glock 42 in volumetric efficiency.

Key Takeaways:

  1. Market Leadership: S&W has effectively seized the “Micro.380” crown. The Bodyguard 2.0 is likely to become the default recommendation for pocket carry in 2025.
  2. Engineering Trade-offs: The split feed ramp is an ingenious solution to a geometric problem but imposes a hard constraint on ammunition selection. This is not a “defect” per se, but a characteristic of the specialized design.
  3. QC Imperative: For S&W to maintain this lead, immediate stabilization of assembly quality (sights and guide rods) is required. The “rolling changes” observed suggest this process is already underway.

Recommendation: For industry stakeholders, the Bodyguard 2.0 serves as a benchmark for the theoretical limit of the.380 platform. Future competition will likely focus on ancillary features like optics readiness (though difficult given the 0.88″ width) or porting, as seen in the Performance Center “Carry Comp” variants already entering the market.

Appendix A: Methodology

This report synthesizes data from a multi-spectrum intelligence gathering operation:

  1. Technical Specification Analysis: Direct review of S&W engineering data, manuals, and parts diagrams.1
  2. Independent Ballistic Testing: Correlation of data from multiple independent chronograph and gel testing protocols to establish performance baselines.8
  3. Competitive Benchmarking: Side-by-side comparison of physical dimensions and operational characteristics with market incumbents.9
  4. Sentiment Aggregation: Qualitative analysis of user feedback from high-traffic discussion nodes (Reddit, YouTube) to identify recurring QC themes and user experience trends.5
