An Engineering and Historical Analysis of the AK-47 and AKM Fire Control Group

The fire control group (Ударно-спусковой механизм, УСМ) of the Kalashnikov rifle is often overshadowed by the platform’s larger reputation for reliability. However, a detailed analysis of its design reveals a microcosm of the entire weapon’s philosophy. The FCG of the early milled-receiver Kalashnikovs, known in the West as the Type 2 and Type 3 AK-47, established a baseline of robust, non-adjustable functionality that prioritized certainty of operation above all else.

Design Imperatives: Forging Reliability for a Conscript Army

The Soviet military doctrine that emerged from the crucible of the Second World War demanded a new service rifle built on three foundational principles. These tenets directly shaped every facet of the Kalashnikov’s FCG.

First and foremost was absolute reliability. The weapon had to function without fail in the hands of conscript soldiers with minimal training, across the full spectrum of punishing environments found within the Soviet Union, from the frozen mud of Eastern Europe to the dust-choked plains of Central Asia.1

Second was simplicity of manufacture. While the early milled receivers were resource-intensive, the internal components, including the trigger, hammer, and sears, were designed for efficient machining using the technology available to Soviet industry in the late 1940s and early 1950s.1

Third was simplicity of use. The controls had to be operable with gross motor skills, even by a soldier wearing thick winter gloves. This is evident in the large, distinct selector lever that doubles as a dust cover for the action.1 The entire FCG is compactly housed within the receiver, which serves as the chassis for the complete rifle, protecting the mechanism from debris.5

It is an important point of nomenclature that while Western parlance uses “AK-47” to describe this family of weapons, official Soviet documentation designated the 1947 prototype as the AK-47, while the subsequent production models were simply the “AK” (Автомат Калашникова).5 For clarity in this analysis, “AK-47” will refer to the pre-AKM family of rifles.

Mechanical Operation: A Symphony of Steel

The operation of the AK-47’s FCG is a study in positive, mechanical interactions, with distinct operational cycles for semi-automatic and automatic fire.

In semi-automatic mode, the sequence is as follows:

  1. The soldier pulls the trigger, causing the entire trigger and main sear assembly to rotate.
  2. The two forward hooks of the trigger, which form the primary sear, disengage from the hammer’s main sear notch.
  3. The hammer, driven by the powerful mainspring, pivots forward and strikes the firing pin, discharging the weapon.
  4. As the bolt carrier travels rearward under gas pressure, it pushes the hammer back down, re-cocking it.
  5. With the soldier’s finger still holding the trigger to the rear, the primary sear is held out of position. The hammer is instead caught and held by the spring-loaded disconnector, a separate component that engages a notch on the hammer.
  6. When the soldier releases the trigger, it pivots forward. This allows the disconnector to release the hammer, which is immediately caught by the now-reset primary sear hooks. The rifle is now ready to fire the next shot.

In automatic fire mode, the sequence changes significantly:

  1. The selector lever is rotated to its lowest position. A cam on the selector shaft pushes the disconnector down, preventing it from ever engaging the hammer.
  2. The initial trigger pull releases the hammer from the primary sear, firing the first round, just as in semi-automatic mode.
  3. The bolt carrier cycles, re-cocking the hammer. With the disconnector disabled, the hammer would follow the bolt carrier forward if not for a third component: the auto-sear.
  4. The auto-sear is a spring-loaded lever that catches and holds the hammer in the cocked position, independent of the trigger or disconnector.
  5. Critically, the auto-sear is designed to be tripped by a lug on the side of the bolt carrier only when the carrier has completed its forward travel and the bolt is fully locked in battery. This is a fundamental safety feature preventing out-of-battery discharge.
  6. As long as the trigger remains depressed, this cycle—fire, cycle, re-cock, hold on auto-sear, trip auto-sear—repeats, producing automatic fire at a rate of approximately 600 rounds per minute.8

The Double-Hook Trigger: A Question of Redundancy and Stability

The use of a double-hook trigger in the milled-receiver AK-47s was a deliberate engineering choice rooted in the pursuit of absolute reliability.9 The two hooks provide a wide, stable engagement surface on the hammer’s sear notch. This design choice was not for a smoother or lighter trigger pull, but for fault tolerance. In the context of mid-century Soviet mass production, where minor variations in part dimensions or heat treatment were a reality, the double-hook design provided a crucial margin of safety. It ensured that even with slight geometric inconsistencies or significant wear, at least one hook would maintain a secure purchase on the hammer, preventing an unintentional discharge. It is a classic example of over-engineering for the sake of certainty.

The Double-Wound Hammer Spring: Engineering for Power and Longevity

The distinctive braided, or double-wound, hammer spring is another component whose design is dictated by the harsh requirements of military service.12 Its purpose is twofold.

First, it must provide sufficient power to reliably ignite the hard Berdan primers used in Soviet 7.62x39mm M43 military ammunition. A firm primer strike is essential to prevent misfires, and the spring was engineered to deliver this force without compromise.

Second, and more subtly, the design provides exceptional durability. The FCG is a high-impact environment. A single-strand spring powerful enough for the task would be under immense stress, making it susceptible to fatigue and eventual failure. The double-wound design distributes the torsional load across two intertwined strands of spring steel. This not only reduces the stress on each individual strand but also introduces internal friction between them. This friction acts as a damper, dissipating the shock and harmonic vibrations generated during the violent firing and recocking cycle, which would otherwise lead to premature spring failure.14 This design significantly enhances the service life of the component, ensuring the rifle continues to function long past the point where a simpler spring might have failed.

The AKM Modernization – An FCG Evolved for a New Manufacturing Paradigm (Post-1959)

The introduction of the AKM (Автомат Калашникова модернизированный) in 1959 marked the single greatest evolution in the Kalashnikov platform. This modernization was driven by a revolutionary shift in manufacturing technology, and the fire control group was fundamentally altered to meet the demands of this new design.

Context for Change: The Stamped Receiver and Lighter Action

The primary impetus for the AKM was economic and logistical. The milled steel receiver of the AK-47 was incredibly durable but also heavy, slow, and expensive to produce.3 Soviet engineers, building on lessons from the problematic Type 1 AK, perfected the process of stamping a receiver from a 1 mm-thick sheet of steel. This change, along with the use of rivets to attach front and rear trunnions, dramatically cut production time and cost, allowing for the rifle to be produced on a truly massive scale.6

As part of this modernization effort, the rifle was made lighter overall. This included lightening cuts on the bolt carrier to reduce reciprocating mass and improve the weapon’s handling characteristics.16 This seemingly minor change in the carrier’s mass created a new and dangerous physics problem: bolt bounce.

The Hammer Retarder (Замедлитель Курка): The Solution to Bolt bounce and the Heart of the AKM FCG

The introduction of the hammer retarder was the keystone innovation of the AKM’s fire control group, a direct and ingenious solution to the problem of bolt bounce.17

When the new, lighter bolt carrier slammed forward into the front trunnion, its reduced inertia made it more susceptible to rebounding, or “bouncing,” for a few milliseconds before settling into a fully locked state. In the original AK-47 FCG, the auto-sear releases the hammer the instant the carrier reaches its forward-most position. If the carrier were to bounce, the hammer could fall while the bolt was partially unlocked, potentially leading to a catastrophic out-of-battery detonation.

The hammer retarder, a small, spring-loaded lever added to the FCG, solved this problem by introducing a slight delay into the firing sequence. Its function is as follows:

In full-automatic fire, after the auto-sear releases the hammer, the hammer does not fly directly to the firing pin. Instead, it first strikes the retarder. The retarder catches the hammer, absorbing its initial momentum and delaying its forward travel by a few crucial milliseconds.5 The hammer then rotates off the retarder and continues on its path to strike the firing pin.

The primary purpose of this delay is safety. It acts as a timing mechanism, giving any bolt bounce time to settle and ensuring the bolt is securely locked in battery before the hammer can fall.5 This innovation is what made the lighter bolt carrier—and by extension, the entire stamped-receiver AKM concept—safe and viable.

As a secondary benefit, this brief delay allows the rifle to stabilize from the impact of the bolt carrier group returning to battery before the next round is fired. This has been shown to improve practical accuracy during automatic fire, most notably by reducing vertical dispersion.5 While the retarder also contributes to a slight reduction in the cyclic rate to a more controllable ~600 rounds per minute, Russian sources are clear that the primary design driver was stabilization and safety, not rate reduction.18

The Transition to the Single-Hook Trigger: Simplification Through Systemic Improvement

The move from the AK-47’s double-hook trigger to the AKM’s more common single-hook design was a direct consequence of the FCG’s overall evolution.16 The AKM’s entire design ethos was centered on simplification, cost-effectiveness, and suitability for mass production. With the hammer retarder now providing an additional, sophisticated layer of control over the firing cycle, the built-in redundancy of the double-hook trigger was deemed superfluous. A single-hook trigger is simpler, requires less material, and is faster to machine, perfectly aligning with the production goals of the AKM program. The maturation of the entire system, exemplified by the retarder, allowed for the simplification of other components.

This chain of development reveals a highly sophisticated, systems-level approach to engineering. The desire for a cheaper stamped receiver led to a lighter bolt carrier, which created the bolt bounce problem. The hammer retarder was invented to solve that problem, and its success in turn allowed for the simplification of the trigger, which helped achieve the initial goal of a more economical rifle. Every major change in the AKM’s FCG was a logical and interconnected consequence of a change elsewhere in the system.

Materials, Manufacturing, and Service Life

The practical implementation of the FCG components is as robust as their design theory. The materials and manufacturing methods were chosen for durability and longevity in a military environment.

Materials and Manufacturing Methods

The core components of the Kalashnikov FCG—the hammer, trigger, disconnector, auto-sear, and retarder—are machined from high-quality steel bar stock or forgings. After machining, the parts undergo a specific heat-treatment process to create a hard, wear-resistant surface on the critical engagement points (like sear notches) while leaving the core of the part tough and resilient to shock. For corrosion resistance, the components are typically finished with a durable, military-grade phosphate coating (фосфатирование).17

Service Life and Field Reliability (Ресурс и Надежность)

The fire control group is not considered a life-limited assembly within the rifle’s overall service life. Official sources state the service life of an AKM or AK-74 is between 10,000 and 18,000 rounds, a figure generally tied to the erosion of the barrel.20 The FCG is engineered to meet or exceed this lifespan.

Catastrophic failures of the FCG in the field are exceptionally rare. When they do occur, they are almost invariably the result of the weapon being pushed far beyond its designed service life. The most common issues are:

  • Spring Failure: After an extremely high round count (many tens of thousands of rounds), the double-wound hammer spring or the smaller auto-sear spring can fail due to metal fatigue.
  • Sear Surface Wear: Over a very long service life, the hardened engagement surfaces on the hammer and trigger/sear can eventually wear down. This can manifest as “hammer follow,” where the hammer follows the bolt carrier forward without being caught by the sear, or a failure of the disconnector to properly hold the hammer in semi-automatic fire.

These are not common malfunctions but rather the predictable end-of-life wear patterns for a mechanical device. Within its operational envelope, the AKM FCG is one of the most reliable ever fielded. Data from the U.S. Department of Defense Technical Information Center (DTIC) gives the Kalashnikov platform a Mean Rounds Before Failure (MRBF) of 6,000 rounds, a figure in which FCG-related stoppages are a statistical anomaly.20 The FCG’s reliability is a direct result of using robust, over-engineered parts in a design that minimizes stress on critical components.

The Soviet Maintenance Doctrine: Engineering Meets Logistics

Perhaps the most telling evidence of the FCG’s intended function can be found not in the rifle itself, but in the manual written for the soldier who would carry it. The Soviet field manual, or Наставление по стрелковому делу, reveals the deep integration of engineering and military logistics.

Analysis of the Наставление по стрелковому делу (Field Manual)

The official 1973 Soviet manual for the AKM is a highly prescriptive document. It details cleaning frequency, approved lubricants (such as RCS solution for heavy carbon fouling), and procedures to be performed under the direct supervision of a non-commissioned officer.21

The manual specifies the complete field-stripping of the rifle: removal of the magazine, receiver cover, recoil spring assembly, bolt carrier with bolt, and the gas tube. However, there is a crucial omission: the manual never instructs the soldier to disassemble the fire control group. Cleaning of the FCG is to be performed in situ, with the components remaining in the receiver. The soldier is instructed to use rags, brushes, and small wooden sticks to clean the mechanism, followed by a light application of lubricant.21

This doctrine is a direct reflection of the engineering philosophy. The FCG was designed as a self-contained, exceptionally reliable module that was not to be tampered with by the end-user. Disassembly, repair, and replacement were tasks reserved for trained armorers at higher echelons of maintenance. By engineering a mechanism that did not require user-level disassembly and then writing the manual to forbid it, the Soviet system effectively engineered away a massive potential source of soldier-induced failures, such as lost parts or incorrect reassembly. This represents a brilliant fusion of mechanical design and logistical planning, prioritizing the reliability of the entire system over the serviceability of any single component.

Summary of Key Evolutionary Differences

The evolutionary path of the Kalashnikov fire control group from the milled AK-47 to the stamped AKM and its successor, the AK-74, can be summarized by the key changes driven by manufacturing and operational requirements. The AK-74, chambered for the 5.45x39mm cartridge, inherited the mature and proven FCG of the late-model AKM, with only minor dimensional changes to the retarder to accommodate the different operating characteristics of the new caliber.22

Comparative Analysis Table: FCG Evolution from AK-47 to AK-74

FeatureAK-47 (Type 2/3 Milled)AKM (Stamped)AK-74 (Stamped)
Receiver TechnologyMilled from solid steel forging.Stamped from 1mm sheet steel.Stamped from 1mm sheet steel.
Trigger TypeDouble-HookPrimarily Single-HookSingle-Hook
Hammer RetarderAbsentPresentPresent (Modified for 5.45mm)
Auto SearStandard patternStandard patternStandard pattern
Hammer SpringDouble-WoundDouble-WoundDouble-Wound
Primary FCG Design DriverRedundancy and robustness to match early manufacturing capabilities.Safety (bolt bounce prevention), cost reduction, and simplification for mass production.Inheritance and refinement of the proven, cost-effective AKM system.

Conclusion: A Legacy of Pragmatic and Systemic Evolution

The evolution of the Kalashnikov fire control group is a masterclass in pragmatic Soviet engineering. It was not a quest for a lighter or smoother trigger pull in the Western sporting or competition sense, but rather a holistic adaptation of the firearm’s mechanical heart to align with revolutionary changes in manufacturing technology, operational requirements, and the immense logistical realities of the Soviet military. From the over-engineered redundancy of the milled era’s double-hook trigger to the ingenious hammer retarder that made the stamped AKM possible, every significant change was a calculated, systemic response to a real-world engineering problem. The legendary reliability of the Kalashnikov’s FCG is no accident; it is the deliberate and successful result of a design philosophy that prized absolute durability and simplicity above all else, creating a system so robust that the soldier was simply instructed to keep it clean and leave it alone.


If you find this post useful, please share the link on Facebook, with your friends, etc. Your support is much appreciated and if you have any feedback, please email me at in**@*********ps.com. Please note that for links to other websites, I may be paid via an affiliate program such as Avantlink, Impact, Amazon and eBay.


Image Source

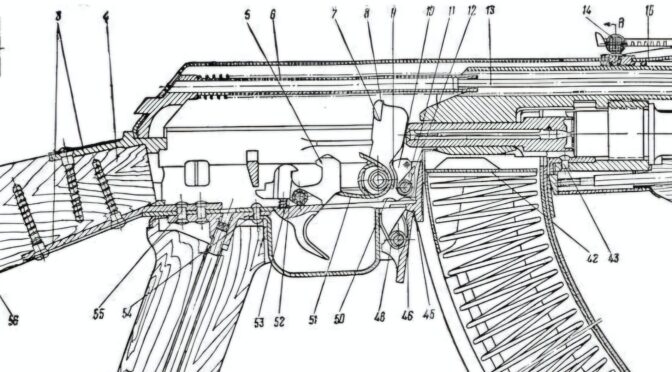

The main blog photo was sourced from a Soviet-era Armorer’s manual and enhanced.
